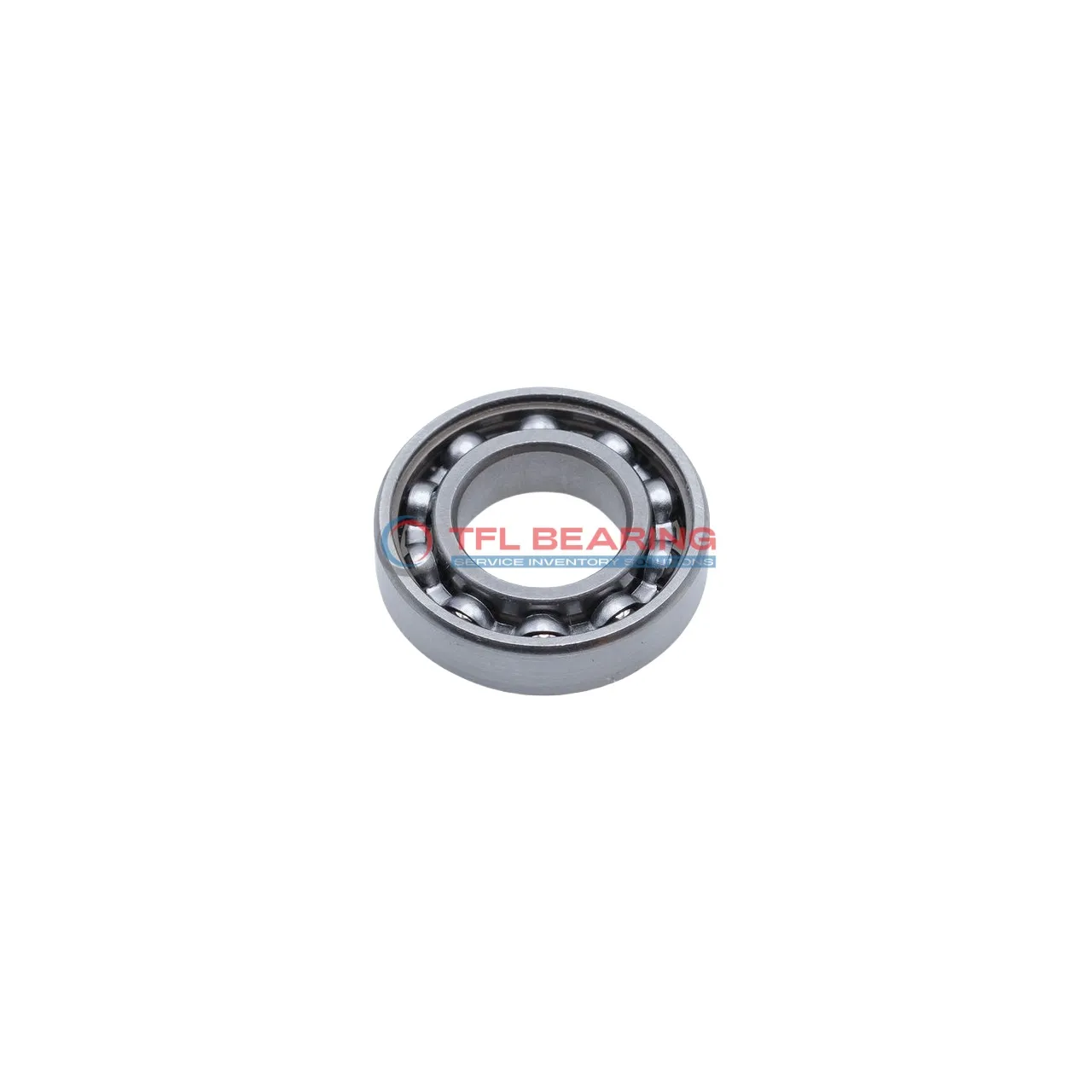

Single Row Deep Groove Ball Bearings 61810/W64

The 61810/W64 is a compact single row deep groove ball bearing with a 50mm bore and 65mm outer diameter, measuring just 7mm wide. Made from durable chrome steel, it handles radial loads up to 1520 lbf and spins smoothly at speeds up to 13000 RPM.
Its solid oil lubrication ensures long-lasting performance with minimal maintenance, while the open design allows for easy inspection. The bearing operates reliably in temperatures from -30°C to 120°C.
This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for small electric motors or precision instruments where space is limited.
Weighing only 0.052kg, it’s lightweight yet robust. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 61810/W64
Brand TFL
Interchangeable SKF
System of Measurement Metric
For Load Direction Radial
Construction Single Row
Bearing Type Ball
Seal Type Open
Tolerance Class ABEC 1 | ISO P0
Radial Clearance Trade No CN
Bore Dia 50 mm
Bore Dia Tolerance -0.01mm to 0
Outer Dia 65 mm
Outer Dia Tolerance -0.011mm to 0
Width 7 mm
Width Tolerance -0.12mm to 0
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Chrome Steel
Lubrication Soild Oil
ROHS Compliant
REACH Compliant
Temperature Range -30°to 120 °C
Dynamic Radial Load 1520 lbf
Static Radial Load 1529 lbf
Max Speed 13000 rpm
Weight 0.052 kg

Single Row Deep Groove Ball Bearings 61810/W64 dimension drawing

Download DWG Download PDF

Features

Performance Features of 61810/W64 Bearing

61810/W64 Bearing is crafted with chrome steel rings and balls, offering strong radial load support.
Its dynamic radial load capacity reaches 1520 lbf, making it suitable for various applications.

The solid oil lubrication ensures smooth operation and reduces the need for frequent maintenance.
With a maximum speed of 13,000 rpm, it delivers reliable performance in high-speed conditions.

Designed for a temperature range of -30°C to 120°C, 61810/W64 Bearing adapts well to different environments.
The open seal type allows for easy inspection and maintenance when required.

Application

Where Is 61810/W64 Bearing Used?
You’ll often spot 61810/W64 Bearing in compact industrial gear like small electric motors and precision instruments, thanks to its slim 7mm profile and reliable radial load capacity. The solid oil lubrication ensures smooth operation even in confined spaces where maintenance access is limited.

In automotive applications, 61810/W64 Bearing works well in auxiliary components such as alternators and small pumps, where its chrome steel construction handles moderate speeds effectively. The metric sizing makes it a straightforward replacement in most European-designed systems.

For home appliances, 61810/W64 Bearing’s quiet operation suits devices like food processors or cooling fans. Its temperature range covers typical household conditions while the open design allows for natural heat dissipation during prolonged use.
