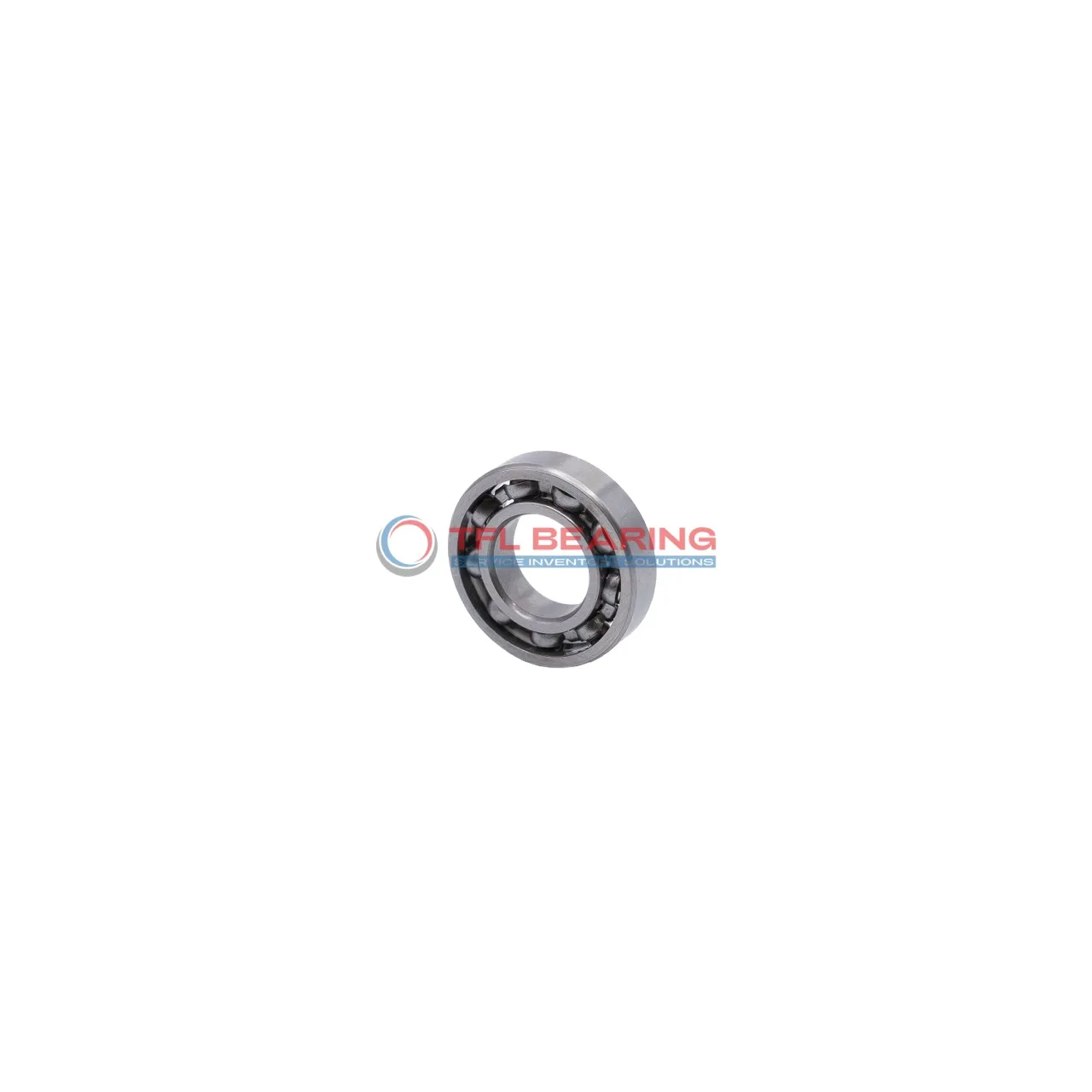

Single Row Deep Groove Ball Bearings 618/1060 TN

Single Row Deep Groove Ball Bearings 618/1060 TN

The 618/1060 TN is a single-row deep groove ball bearing with a large 1060mm bore and 1280mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 163,661 lbf and operates at speeds up to 430 RPM.

Its open design and nylon cage provide durability while keeping maintenance straightforward. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for heavy-duty applications like industrial machinery or large equipment where radial load support is essential.

Weighing 240kg, it’s built for robust performance in demanding environments. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 618/1060 TN
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 1060 mm
  • Bore Dia Tolerance -0.075mm to 0
  • Outer Dia 1280 mm
  • Outer Dia Tolerance -0.09mm to 0
  • Width 100 mm
  • Width Tolerance -1.25mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 163661 lbf
  • Static Radial Load 476595 lbf
  • Max Speed 430 rpm
  • Weight 240 kg
Single Row Deep Groove Ball Bearings 618/1060 TN dimension drawing
Download DWG Download PDF

Features

Performance Features of 618/1060 TN Bearing

618/1060 TN Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 163661 lbf, making it suitable for heavy-duty applications.

The nylon cage in 618/1060 TN Bearing ensures smooth operation and reduces friction.
With a maximum speed of 430 rpm, it balances performance and durability in industrial settings.

618/1060 TN Bearing operates effectively in temperatures ranging from -30° to 120 °C.
Its robust design ensures reliable performance even in challenging environments.

The open design of 618/1060 TN Bearing simplifies maintenance and inspection.
Its precise tolerances and construction enhance long-term reliability.

Application

Industrial Uses of 618/1060 TN Bearing
This large-sized bearing is commonly used in heavy machinery like industrial fans and large conveyor systems, where its high radial load capacity is essential. The open design and P6 tolerance ensure reliable performance in demanding environments.

In wind turbine applications, 618/1060 TN Bearing supports the main shaft, handling significant radial loads while maintaining smooth rotation. Its nylon cage reduces friction, making it suitable for low-speed, high-load scenarios.

For mining equipment, 618/1060 TN Bearing’s robust construction withstands harsh conditions, such as dust and vibration. The chrome steel rings and balls provide durability, ensuring long service life even under continuous operation.

Automotive vs Aerospace: Applications of 618/1060 TN Bearing
In large vehicles like buses or trucks, this bearing is used in transmission systems due to its high static radial load rating. Its metric sizing makes it compatible with various European and Asian heavy-duty vehicles.

In aerospace ground equipment, 618/1060 TN Bearing is found in cargo loaders and maintenance platforms. The temperature range of -30° to 120°C ensures reliability in diverse weather conditions.
