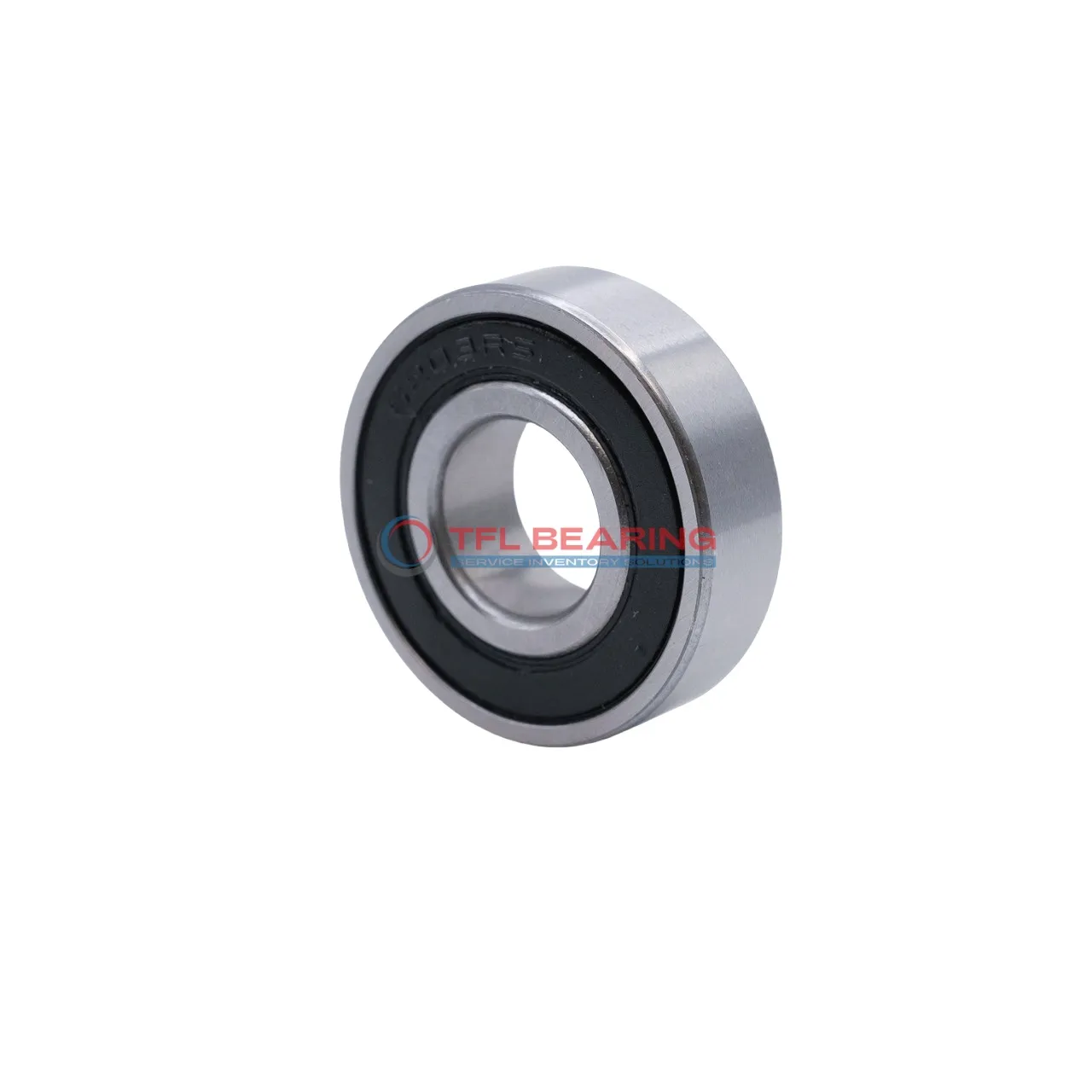

Single Row Deep Groove Ball Bearings 609-2RZTN9/C3LTF4

Single Row Deep Groove Ball Bearings 609-2RZTN9/C3LTF4

The 609-2RZTN9/C3LTF4 is a compact single-row deep groove ball bearing, measuring 9mm by 24mm by 7mm. Made from chrome steel with a nylon cage, it offers reliable performance for radial loads up to 642 lbf.

Its sealed design keeps dirt out and lubrication in, making it low-maintenance. The bearing can handle speeds up to 32,000 RPM and operates in temperatures from -30°C to 120°C.

With a C3 radial clearance, it’s suitable for applications where slight expansion is expected. This model is interchangeable with SKF bearings, ideal for small motors or power tools.

Weighing just 14.7g, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 609-2RZTN9/C3LTF4
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 9 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 24 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 7 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 642 lbf
  • Static Radial Load 260 lbf
  • Max Speed 32000 rpm
  • Weight 14.7 g

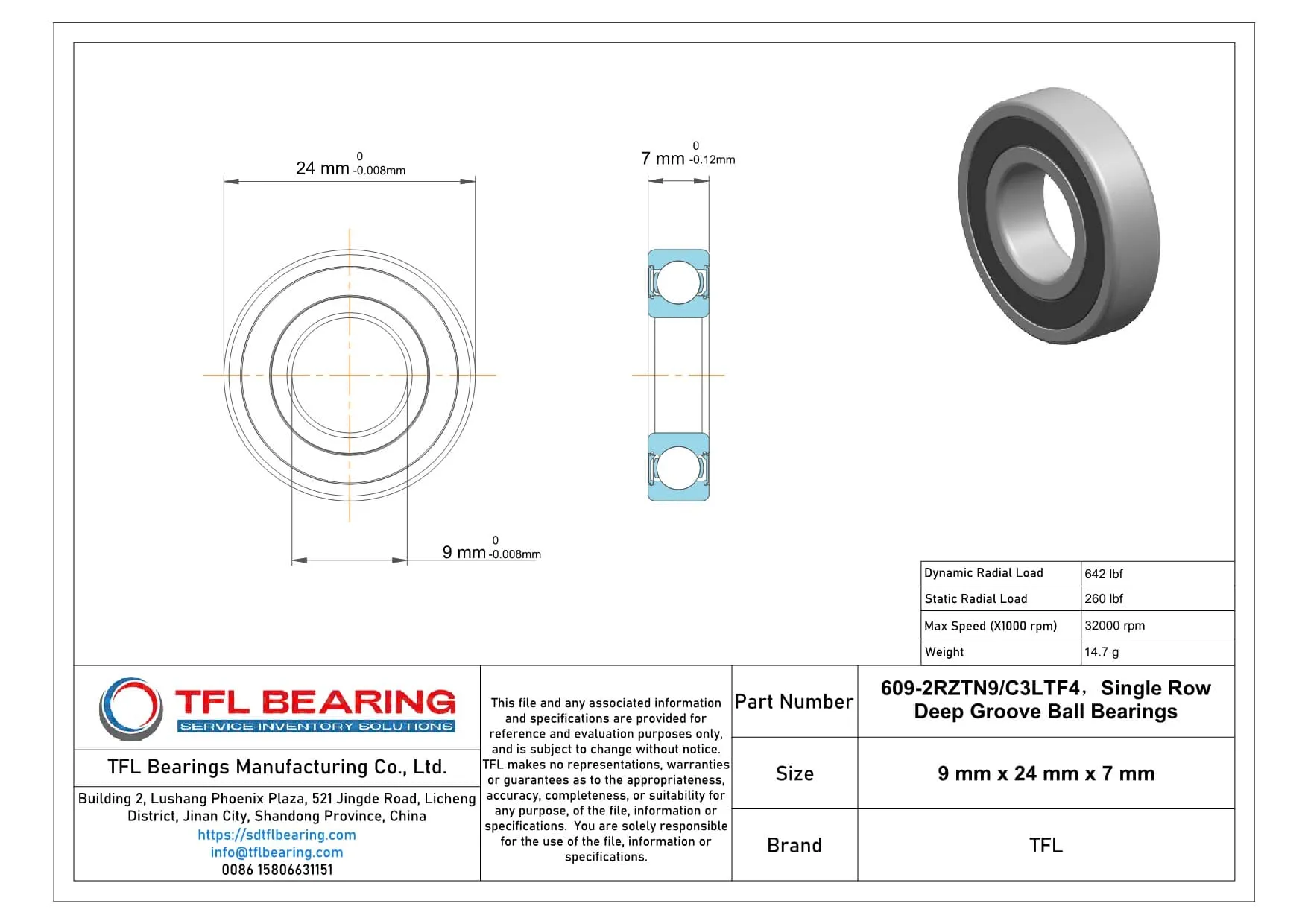

Single Row Deep Groove Ball Bearings 609-2RZTN9/C3LTF4 dimension drawing
Download DWG Download PDF

Features

How Does 609-2RZTN9/C3LTF4 Bearing Reduce Friction?

609-2RZTN9/C3LTF4 Bearing features a single row deep groove design, optimised for smooth radial load handling.
The sealed construction helps retain lubrication, reducing friction and wear over time.

With chrome steel rings and balls, 609-2RZTN9/C3LTF4 Bearing offers reliable performance in various conditions.
Its nylon cage ensures quiet operation, making it suitable for precision applications.

609-2RZTN9/C3LTF4 Bearing can handle speeds up to 32,000 rpm while maintaining efficiency.
The C3 radial clearance provides flexibility in different operating temperatures.

Application

Common Applications of 609-2RZTN9/C3LTF4 Bearing
In industrial settings, 609-2RZTN9/C3LTF4 Bearing is commonly used in small electric motors and pumps, where its sealed design helps keep out dust and debris. The C3 clearance ensures smooth operation even under varying thermal conditions.

Where Is 609-2RZTN9/C3LTF4 Bearing Used?
You’ll often find 609-2RZTN9/C3LTF4 Bearing in household appliances like washing machines and fans, thanks to its compact size and reliable performance. The nylon cage reduces noise, making it ideal for quiet environments.

Built for Versatility: 609-2RZTN9/C3LTF4 Bearing
609-2RZTN9/C3LTF4 Bearing works well in automation equipment, such as small conveyor belts, where its radial load capacity and sealed construction are key. The chrome steel rings provide durability for continuous use.

Light-Duty vs Heavy-Duty: Best Uses for 609-2RZTN9/C3LTF4 Bearing
For light-duty applications like office printers, 609-2RZTN9/C3LTF4 Bearing offers precise movement and long service life. In heavier scenarios, it’s suited for small gearboxes where space is limited but performance is critical.
