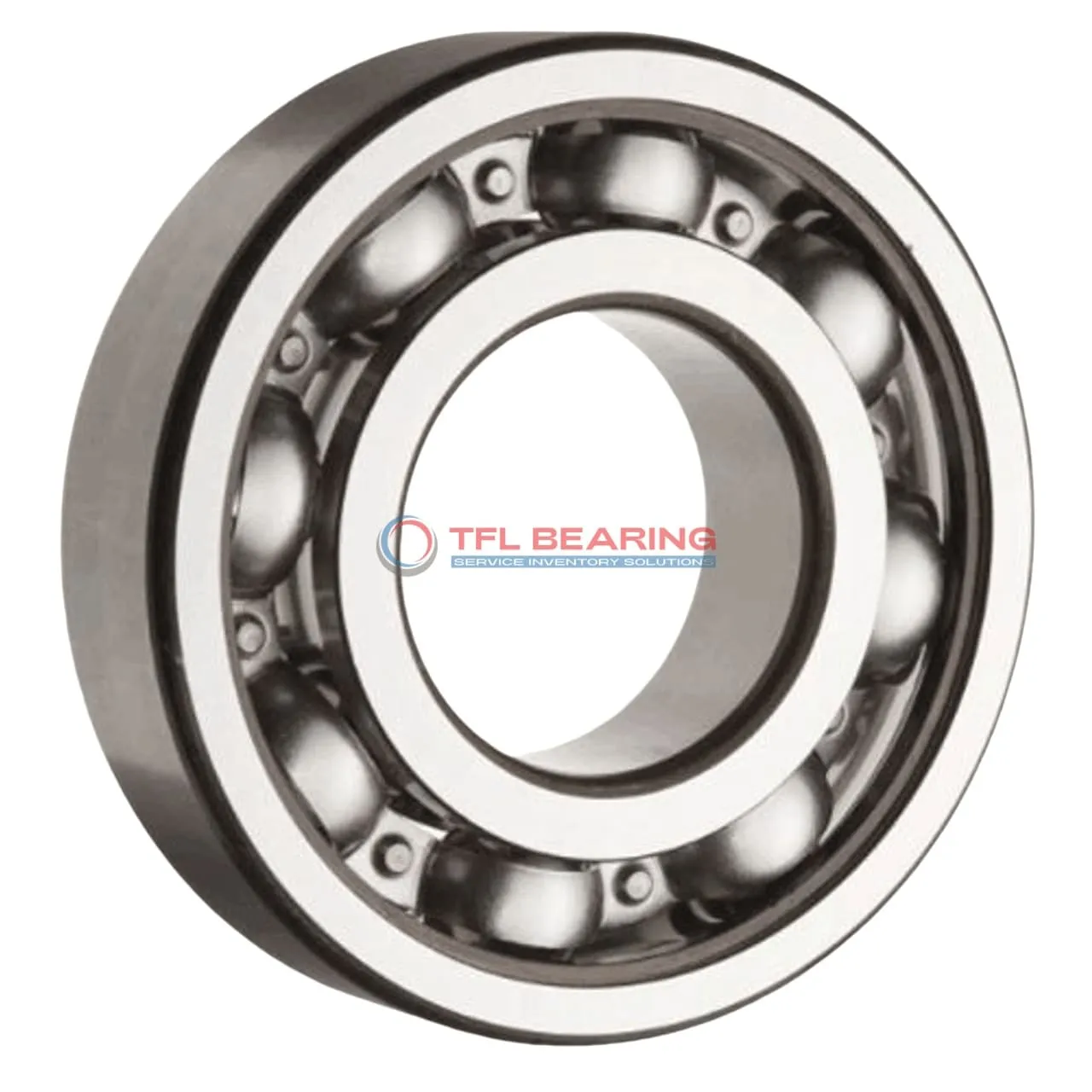

Single Row Deep Groove Ball Bearings 60888 MA

Single Row Deep Groove Ball Bearings 60888 MA

The 60888 MA is a single-row deep groove ball bearing with a 440mm bore and 540mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 35745 lbf and operates smoothly at speeds up to 1800 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for heavy-duty applications like industrial machinery or large equipment where radial loads are prevalent.

Weighing 16.8kg, it’s built to handle significant stress while maintaining stability. Compliant with RoHS and REACH standards for safe and environmentally friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 60888 MA
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 440 mm
  • Bore Dia Tolerance -0.035mm to 0
  • Outer Dia 540 mm
  • Outer Dia Tolerance -0.038mm to 0
  • Width 31 mm
  • Width Tolerance -0.45mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 35745 lbf
  • Static Radial Load 65195 lbf
  • Max Speed 1800 rpm
  • Weight 16800 g
Single Row Deep Groove Ball Bearings 60888 MA dimension drawing
Download DWG Download PDF

Features

How Does 60888 MA Bearing Handle Heavy Radial Loads?

60888 MA Bearing is built with chrome steel rings and balls, offering strong resistance to heavy radial loads.
Its dynamic radial load capacity reaches 35745 lbf, making it suitable for demanding industrial applications.

The stainless steel cage ensures proper ball alignment, reducing friction and wear over time.
With a maximum speed of 1,800 rpm, it provides reliable performance in various operating conditions.

60888 MA Bearing operates efficiently within a temperature range of -30° to 120°C.
Its open design allows for easy lubrication and maintenance, enhancing long-term usability.

Application

Industrial Uses of 60888 MA Bearing
The 60888 MA Bearing is commonly used in large industrial machinery, such as heavy-duty conveyor systems and large-scale manufacturing equipment. Its robust chrome steel construction ensures reliable performance under significant radial loads.

Where Is 60888 MA Bearing Used?
You’ll often find the 60888 MA Bearing in wind turbines and mining equipment, where its high load capacity and durability are essential. The open design allows for easy lubrication, extending its service life in harsh conditions.

Perfect Fit for Automation: 60888 MA Bearing
In automated production lines, the 60888 MA Bearing supports smooth operation of robotic arms and precision machinery. Its P6 tolerance class ensures consistent performance in high-accuracy applications.

Light-Duty vs Heavy-Duty: Best Uses for 60888 MA Bearing
While the 60888 MA Bearing excels in heavy-duty applications like construction equipment, it’s also suitable for large agricultural machinery. The stainless steel cage adds extra resistance to wear and corrosion.

Medical vs Industrial: Where 60888 MA Bearing Excels
Though primarily industrial, the 60888 MA Bearing can be found in large medical imaging devices where stability is key. Its wide temperature range makes it versatile for various environments.
