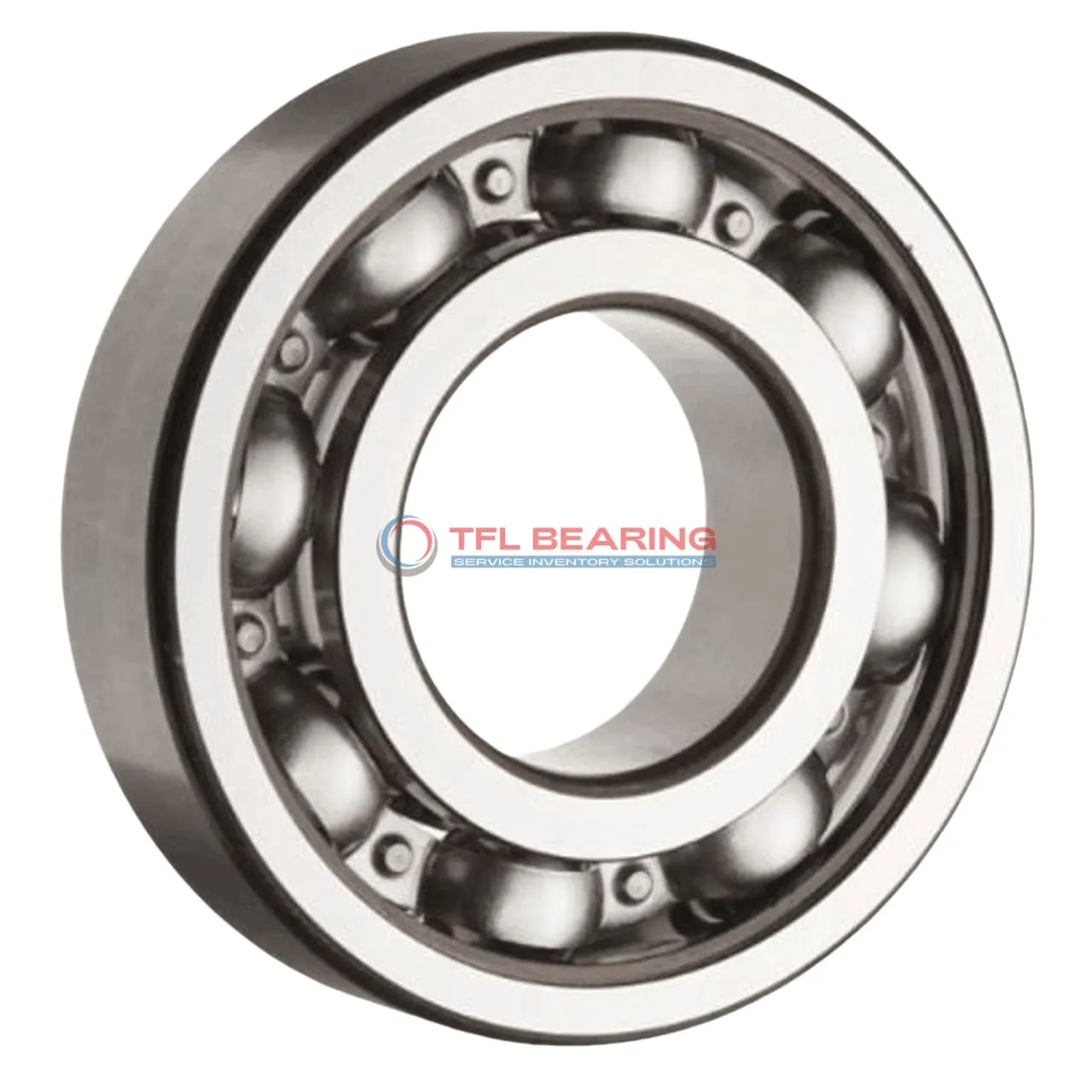

Single Row Deep Groove Ball Bearings 6088 M

Single Row Deep Groove Ball Bearings 6088 M

The 6088 M is a single-row deep groove ball bearing with a large 440mm bore and 650mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 124319 lbf and operates smoothly at speeds up to 1500 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical option for replacements. Suitable for heavy-duty applications like industrial machinery or large equipment where radial loads are predominant.

Weighing 105kg, it’s built for robustness and long-term use. Compliant with RoHS and REACH standards for safe and eco-friendly operation.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6088 M
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 440 mm
  • Bore Dia Tolerance -0.035mm to 0
  • Outer Dia 650 mm
  • Outer Dia Tolerance -0.045mm to 0
  • Width 94 mm
  • Width Tolerance -0.45mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 124319 lbf
  • Static Radial Load 216941 lbf
  • Max Speed 1500 rpm
  • Weight 105000 g
Single Row Deep Groove Ball Bearings 6088 M dimension drawing
Download DWG Download PDF

Features

Performance Features of 6088 M Bearing

6088 M Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 124319 lbf, ensuring reliable performance in heavy-duty applications.
The stainless steel cage maintains ball alignment, reducing wear and extending operational life.
With a maximum speed of 1,500 rpm, it delivers a balance of durability and efficiency.

How Is 6088 M Bearing Engineered for Reliability?

6088 M Bearing features a single-row deep groove design, optimised for radial load handling.
The P6 tolerance class ensures precision fit and smooth operation in demanding conditions.
Its chrome steel construction resists wear, while the open design allows for easy lubrication.
Operating between -30°C to 120°C, it performs reliably in varied environments.

Built for Durability: 6088 M Bearing

6088 M Bearing’s robust construction withstands high static radial loads up to 216941 lbf.
The stainless steel cage enhances durability, keeping the balls securely in place.
Its large 650 mm outer diameter provides stability in heavy industrial applications.
With a width of 94 mm, it offers a compact yet strong solution for radial load support.

Application

Industrial Uses of 6088 M Bearing
6088 M Bearing is commonly used in large industrial machinery, such as heavy-duty pumps and compressors, where its robust design handles significant radial loads. The open seal type makes it suitable for environments where regular lubrication is feasible.

Where Is 6088 M Bearing Used?
You’ll often find 6088 M Bearing in wind turbine systems, where its high load capacity and durability are essential for long-term performance. Its metric sizing ensures compatibility with European-designed equipment.

Built for Heavy-Duty Use: 6088 M Bearing
6088 M Bearing excels in applications like mining equipment, where its chrome steel construction withstands harsh conditions. The stainless steel cage adds extra resistance to wear and corrosion.

Automotive vs Aerospace: Applications of 6088 M Bearing
In automotive settings, 6088 M Bearing supports large drivetrain components, while in aerospace, its precision is valued for auxiliary systems. The P6 tolerance class ensures reliable performance in both fields.

Perfect Fit for Automation: 6088 M Bearing
6088 M Bearing is a solid choice for automated production lines, where its consistent performance reduces downtime. The wide temperature range allows it to operate smoothly in varied factory conditions.
