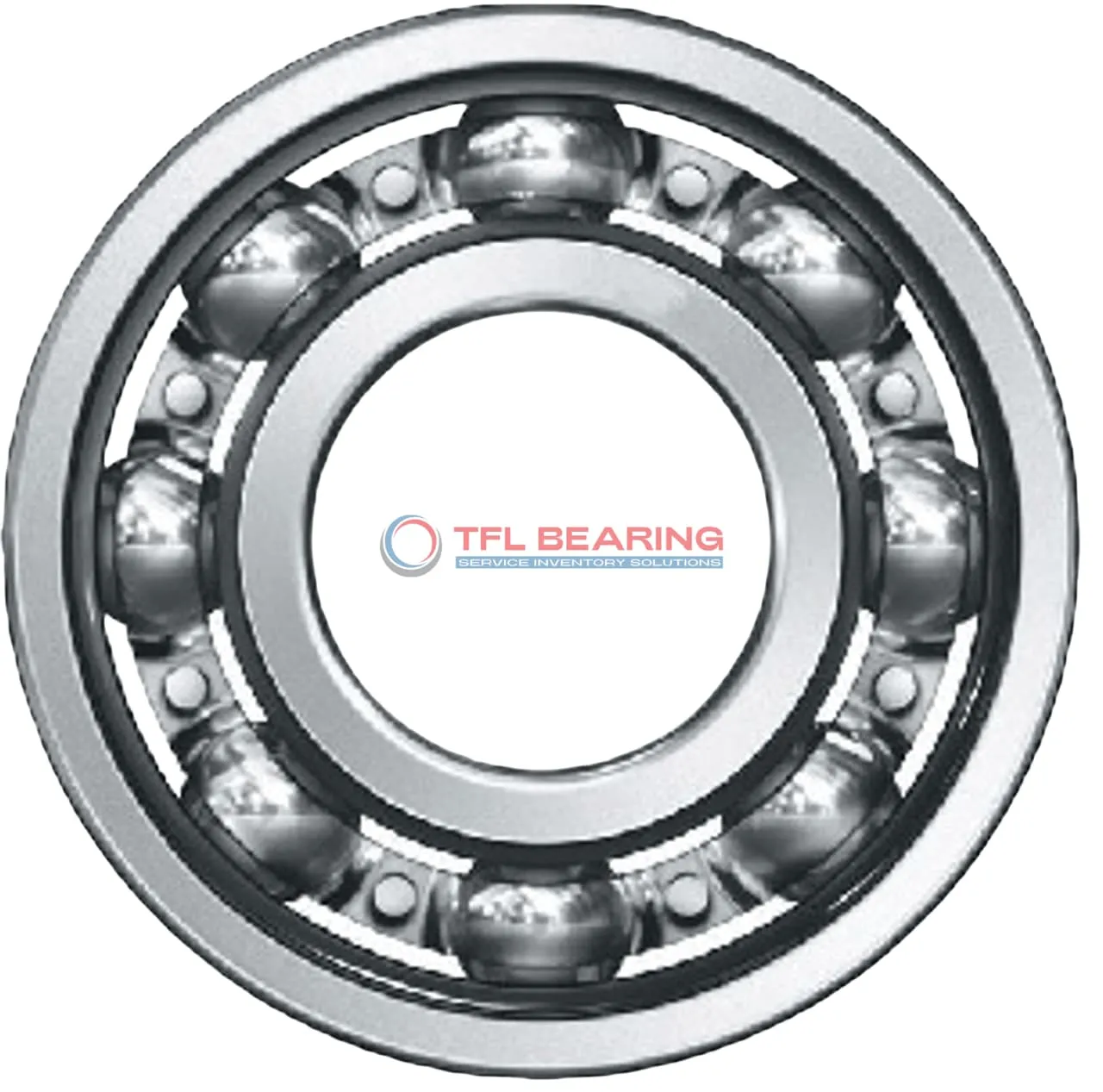

Single Row Deep Groove Ball Bearings 6080 M

Single Row Deep Groove Ball Bearings 6080 M

The 6080 M is a single-row deep groove ball bearing with a 400mm bore and 600mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 116901 lbf and operates smoothly at speeds up to 1700 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances durability. Suitable for temperatures ranging from -30°C to 120°C, it’s built for demanding environments.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Perfect for heavy-duty machinery like industrial pumps or conveyors where radial load support is key.

Weighing 87.5kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, ensuring safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6080 M
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 400 mm
  • Bore Dia Tolerance -0.03mm to 0
  • Outer Dia 600 mm
  • Outer Dia Tolerance -0.038mm to 0
  • Width 90 mm
  • Width Tolerance -0.4mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 116901 lbf
  • Static Radial Load 19446 lbf
  • Max Speed 1700 rpm
  • Weight 87500 g
  • price（$） 2157.525
Single Row Deep Groove Ball Bearings 6080 M dimension drawing
Download DWG Download PDF

Features

How Does 6080 M Bearing Support Heavy Radial Loads?

6080 M Bearing is built with chrome steel rings and balls, offering strong resistance to heavy radial loads.
Its dynamic radial load capacity reaches 116901 lbf, ensuring reliable performance in demanding applications.
The stainless steel cage maintains ball alignment, reducing wear and extending service life.
With a maximum speed of 1,700 rpm, it balances durability and efficiency.

Application

Key Fields for 6080 M Bearing
The 6080 M Bearing is widely used in large industrial machinery, such as heavy-duty conveyor systems and large pumps, where its robust design handles significant radial loads. Its open seal type allows for easy lubrication, making maintenance straightforward in demanding environments.

How Does 6080 M Bearing Improve Performance?
In wind turbines, the 6080 M Bearing ensures smooth rotation under varying wind conditions, thanks to its high dynamic radial load capacity. The chrome steel construction also provides excellent durability in outdoor settings.

Built for Heavy-Duty Use: 6080 M Bearing
This bearing is a reliable choice for construction equipment like cranes and excavators, where its large size and strength are essential. The stainless steel cage adds extra resistance to wear, even in harsh working conditions.

Automotive vs Aerospace: Applications of 6080 M Bearing
While the 6080 M Bearing isn’t typically used in aerospace due to its size, it’s ideal for large automotive applications like bus transmissions. Its metric dimensions make it compatible with many European heavy vehicle designs.

Practical Applications of 6080 M Bearing
In mining equipment, the 6080 M Bearing handles heavy loads and harsh conditions with ease. Its wide temperature range ensures consistent performance, whether in hot or cold environments.
