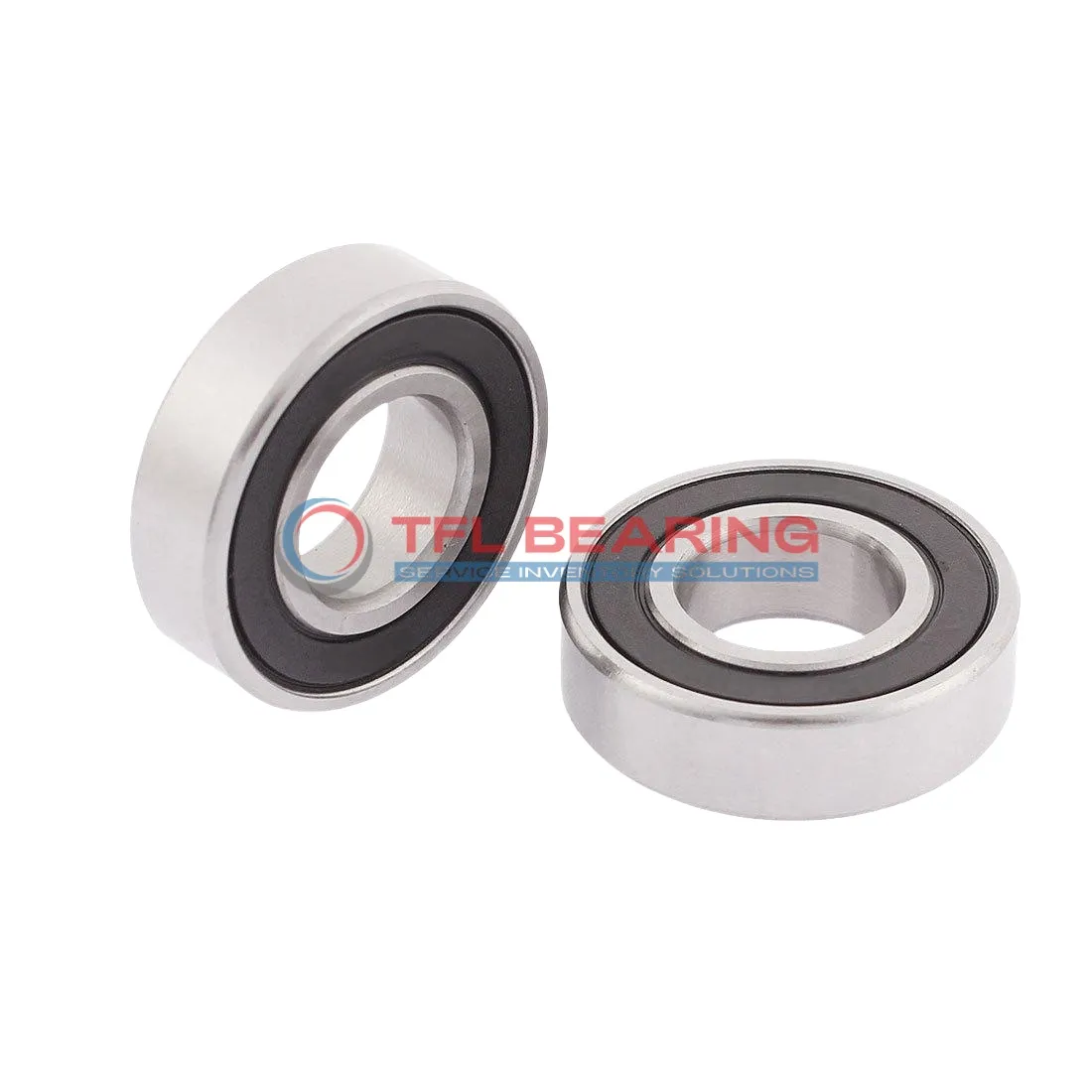

Single Row Deep Groove Ball Bearings 608-RSH/C3GWP

Single Row Deep Groove Ball Bearings 608-RSH/C3GWP

The 608-RSH/C3GWP is a compact single-row deep groove ball bearing, measuring 8mm in bore and 22mm in outer diameter, with a width of just 7mm. Made from chrome steel, it offers reliable performance for radial loads up to 630 lbf.

Its sealed design keeps dirt out and lubrication in, making it low-maintenance. The C3 radial clearance allows for slight thermal expansion, suitable for varying temperatures from -30°C to 120°C.

This bearing spins smoothly at speeds up to 34,000 RPM, ideal for small motors or skateboard wheels. It’s interchangeable with SKF models, simplifying replacements.

Weighing only 11.8g, it’s lightweight yet durable. Compliant with RoHS and REACH standards, it’s a safe choice for everyday applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 608-RSH/C3GWP
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 8 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 22 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 7 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 630 lbf
  • Static Radial Load 248 lbf
  • Max Speed 34000 rpm
  • Weight 11.8 g
Single Row Deep Groove Ball Bearings 608-RSH/C3GWP dimension drawing
Download DWG Download PDF

Features

Performance Features of 608-RSH/C3GWP Bearing

608-RSH/C3GWP Bearing is designed with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 630 lbf, ensuring reliable performance in various applications.

The sealed design of 608-RSH/C3GWP Bearing protects against dust and moisture, extending its service life.
With a maximum speed of 34,000 rpm, it balances durability and high-speed efficiency.

608-RSH/C3GWP Bearing operates smoothly in temperatures ranging from -30°C to 120°C.
Its compact size (8 mm×22 mm×7 mm) makes it suitable for space-constrained applications.

The C3 radial clearance ensures optimal performance under varying thermal conditions.
This bearing is interchangeable with SKF models, providing flexibility in replacement options.

Application

Common Applications of 608-RSH/C3GWP Bearing
In industrial settings, 608-RSH/C3GWP Bearing is widely used in small machinery like electric motors and pumps, thanks to its sealed design that keeps contaminants out. Its C3 clearance ensures smooth operation even under varying thermal conditions.

Where Is 608-RSH/C3GWP Bearing Used?
You’ll often find 608-RSH/C3GWP Bearing in skateboards and inline skates, where its compact size and radial load capacity provide reliable performance. The chrome steel construction also makes it durable for frequent use.

Ideal for Precision: 608-RSH/C3GWP Bearing
For automation equipment like small robotic arms, 608-RSH/C3GWP Bearing offers precise movement with minimal maintenance. The sealed design helps maintain lubrication, extending its service life in dusty environments.

Automotive vs Consumer Electronics: Applications of 608-RSH/C3GWP Bearing
In automotive applications, 608-RSH/C3GWP Bearing supports small components like alternators, while in consumer electronics, it’s used in devices like cooling fans. Its versatility makes it a go-to choice for both fields.
