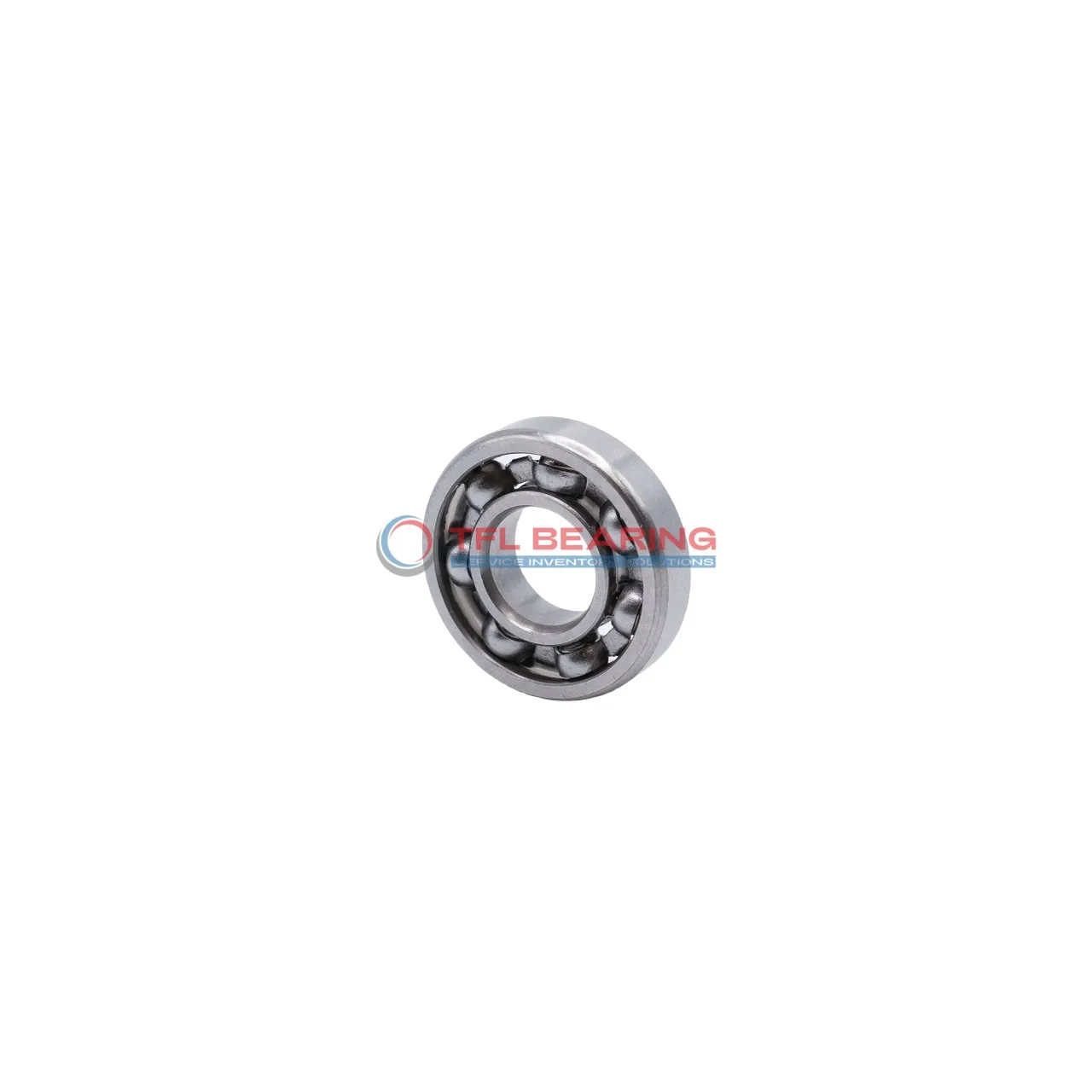

Single Row Deep Groove Ball Bearings 608/600 MA

Single Row Deep Groove Ball Bearings 608/600 MA

The 608/600 MA is a single-row deep groove ball bearing with a 600mm bore and 730mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 59574 lbf and operates at speeds up to 1200 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances durability. Suitable for temperatures ranging from -30°C to 120°C, it’s built for demanding conditions.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Perfect for heavy machinery or industrial equipment where radial load support is essential.

Weighing 40kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, ensuring safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 608/600 MA
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 600 mm
  • Bore Dia Tolerance -0.04mm to 0
  • Outer Dia 730 mm
  • Outer Dia Tolerance -0.045mm to 0
  • Width 42 mm
  • Width Tolerance -0.5mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 59574 lbf
  • Static Radial Load 123645 lbf
  • Max Speed 1200 rpm
  • Weight 40000 g
Single Row Deep Groove Ball Bearings 608/600 MA dimension drawing
Download DWG Download PDF

Features

Performance Features of 608/600 MA Bearing

608/600 MA Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 59574 lbf, making it suitable for heavy-duty applications.

The stainless steel cage ensures proper ball alignment, reducing friction and wear.
With a maximum speed of 1,200 rpm, it delivers reliable performance in various conditions.

608/600 MA Bearing operates efficiently within a temperature range of -30° to 120°C.
Its open design allows for easy maintenance and inspection, ensuring long-term reliability.

Application

Industrial Uses of 608/600 MA Bearing
The 608/600 MA Bearing is commonly used in large industrial machinery, such as heavy-duty conveyor systems and large-scale fans, where its radial load capacity ensures reliable performance. Its open design allows for easy lubrication and maintenance in demanding environments.

In automotive applications, 608/600 MA Bearing supports components like large gearboxes and drivetrain systems, where its high load capacity and durability are essential. The metric sizing makes it a versatile choice for various vehicle designs.

For automation systems, 608/600 MA Bearing is ideal for robotic arms and automated production lines, providing smooth operation under radial loads. Its chrome steel construction ensures long-lasting performance even in high-use scenarios.

Where Is 608/600 MA Bearing Used?
You’ll often find 608/600 MA Bearing in wind turbines, where its ability to handle heavy radial loads is crucial for efficient energy generation. The stainless steel cage adds extra durability in outdoor conditions.

In construction equipment, 608/600 MA Bearing is a reliable choice for cranes and excavators, thanks to its robust design and high load capacity. Its wide temperature range also makes it suitable for varying weather conditions.

Built for Heavy-Duty Use: 608/600 MA Bearing
The 608/600 MA Bearing excels in mining equipment, where its radial load handling and durability are put to the test daily. Its chrome steel rings and balls ensure it can withstand harsh operating conditions.

For agricultural machinery, 608/600 MA Bearing supports heavy loads in tractors and harvesters, providing reliable performance in dusty environments. The open seal design allows for easy cleaning and maintenance.

Light-Duty vs Heavy-Duty: Best Uses for 608/600 MA Bearing
In light-duty applications like large electric motors, 608/600 MA Bearing offers smooth operation and long service life. Its precision engineering ensures minimal friction and energy loss.

For heavy-duty uses such as industrial presses, 608/600 MA Bearing’s high static and dynamic load ratings make it a dependable choice. The wide temperature range also ensures performance in various operating conditions.
