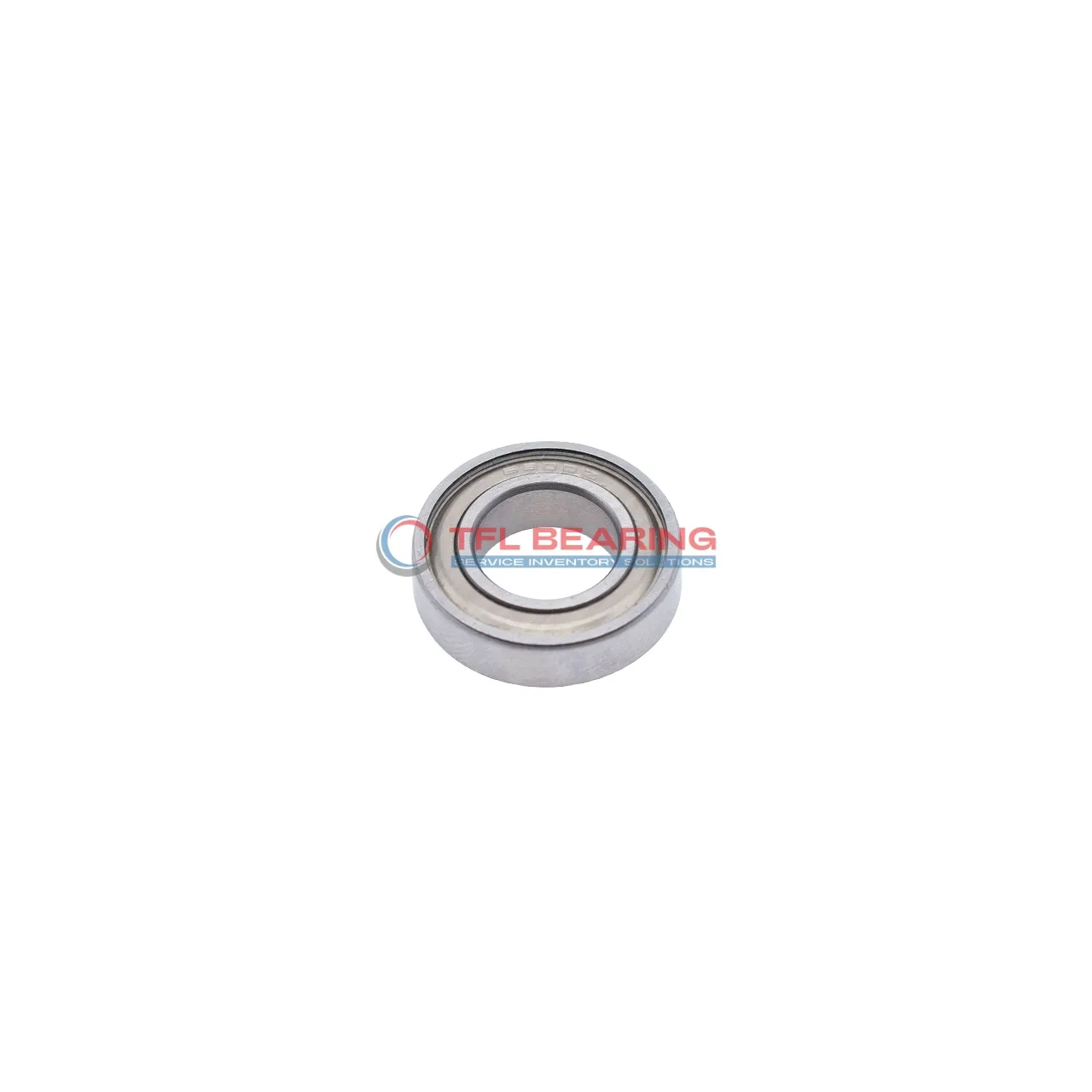

Single Row Deep Groove Ball Bearings 608-2ZTN9/CNHWT

Single Row Deep Groove Ball Bearings 608-2ZTN9/CNHWT

The 608-2ZTN9/CNHWT is a compact single-row deep groove ball bearing, measuring 8mm by 22mm by 7mm, crafted from durable chrome steel. It handles radial loads up to 630 lbf and spins smoothly at speeds up to 34,000 RPM.

Its shielded design keeps out dust and debris, while the nylon cage reduces friction for quieter operation. The bearing performs reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for small machinery, skateboards, or electric motors where smooth rotation is key.

Weighing just 11.8g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 608-2ZTN9/CNHWT
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 8 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 22 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 7 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 630 lbf
  • Static Radial Load 248 lbf
  • Max Speed 34000 rpm
  • Weight 11.8 g
Single Row Deep Groove Ball Bearings 608-2ZTN9/CNHWT dimension drawing
Download DWG Download PDF

Features

How Does 608-2ZTN9/CNHWT Bearing Reduce Friction?

608-2ZTN9/CNHWT Bearing features a single-row deep groove design, optimised for smooth radial load handling.
The shielded construction helps keep contaminants out while maintaining low friction during operation.

Made from chrome steel rings and balls, 608-2ZTN9/CNHWT Bearing ensures durability and efficient performance.
Its nylon cage reduces vibration and noise, making it suitable for high-speed applications.

With a maximum speed of 34,000 rpm, 608-2ZTN9/CNHWT Bearing balances speed and reliability.
The ABEC 1 tolerance class ensures consistent performance for everyday industrial needs.

Application

Common Applications of 608-2ZTN9/CNHWT Bearing
In skateboards and inline skates, 608-2ZTN9/CNHWT Bearing is a popular choice due to its smooth rotation and durability. The shielded design helps keep dirt out, extending its lifespan even with frequent use.

Where Is 608-2ZTN9/CNHWT Bearing Used?
You’ll often find 608-2ZTN9/CNHWT Bearing in small electric motors, like those in household appliances or power tools. Its compact size and reliable performance make it ideal for these everyday devices.

Built for Versatility: 608-2ZTN9/CNHWT Bearing
608-2ZTN9/CNHWT Bearing works well in conveyor systems, handling radial loads with ease. The nylon cage reduces friction, making it a quiet option for continuous operation.

Automotive vs Industrial: Applications of 608-2ZTN9/CNHWT Bearing
In automotive fans, 608-2ZTN9/CNHWT Bearing ensures steady performance, while in industrial pumps, its shielded design protects against contaminants. Both benefit from its high-speed capability.

Perfect Fit for Automation: 608-2ZTN9/CNHWT Bearing
608-2ZTN9/CNHWT Bearing is commonly used in 3D printers, where precision and reliability are key. The chrome steel construction ensures it can handle repetitive movements without wear.
