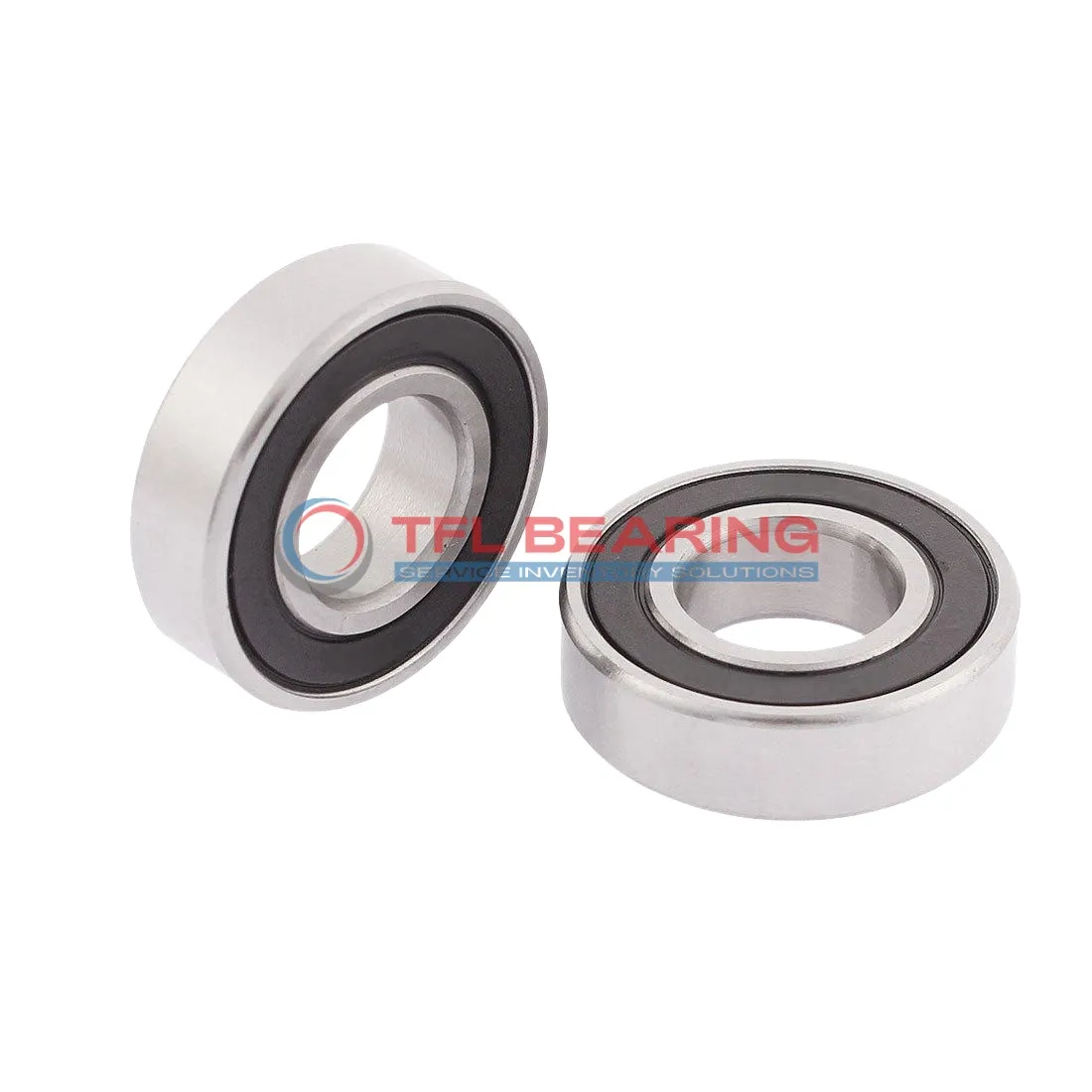

Single Row Deep Groove Ball Bearings 608-2RSH/C3WT

Single Row Deep Groove Ball Bearings 608-2RSH/C3WT

The 608-2RSH/C3WT is a compact single-row deep groove ball bearing with an 8mm bore and 22mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 630 lbf and spins smoothly at speeds up to 34,000 RPM.

Its sealed design keeps dirt out and grease in, making it low-maintenance, while the C3 clearance allows for slight thermal expansion. The bearing performs reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a cost-effective alternative for replacements. Perfect for small machinery, skateboards, or electric motors where space is limited.

Weighing just 11.8g, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use in various applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 608-2RSH/C3WT
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 8 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 22 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 7 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 630 lbf
  • Static Radial Load 248 lbf
  • Max Speed 34000 rpm
  • Weight 11.8 g
Single Row Deep Groove Ball Bearings 608-2RSH/C3WT dimension drawing
Download DWG Download PDF

Features

How Does 608-2RSH/C3WT Bearing Reduce Friction?

608-2RSH/C3WT Bearing features a sealed design with chrome steel rings and balls, ensuring smooth operation with minimal friction.
Its single-row deep groove construction enhances radial load capacity, supporting up to 630 lbf dynamic radial load.
The C3 radial clearance allows for thermal expansion, making it suitable for varied temperature conditions.
With a maximum speed of 34,000 rpm, it delivers reliable performance in high-speed applications.

Application

Common Applications of 608-2RSH/C3WT Bearing
You’ll often spot 608-2RSH/C3WT Bearing in skateboards and inline skates, where its sealed design keeps dirt out while handling smooth rotations. The compact 8mm bore makes it ideal for small-wheel applications.

Industrial Uses of 608-2RSH/C3WT Bearing
In conveyor systems, 608-2RSH/C3WT Bearing reliably supports light radial loads across long operating hours. Its C3 clearance accommodates thermal expansion in machinery without compromising performance.

Where Is 608-2RSH/C3WT Bearing Used?
This bearing frequently appears in small electric motors for appliances like blenders or power tools. The chrome steel construction handles moderate speeds while maintaining quiet operation – perfect for household devices.

Built for Versatility: 608-2RSH/C3WT Bearing
From 3D printer components to cooling fans, 608-2RSH/C3WT Bearing adapts well to various light-duty applications. Its 7mm width fits neatly into compact spaces without sacrificing durability.

Automotive vs Consumer Goods: 608-2RSH/C3WT Bearing
While some use 608-2RSH/C3WT Bearing in car alternators, others prefer it for bicycle components. The sealed design works equally well against road debris or workshop dust.
