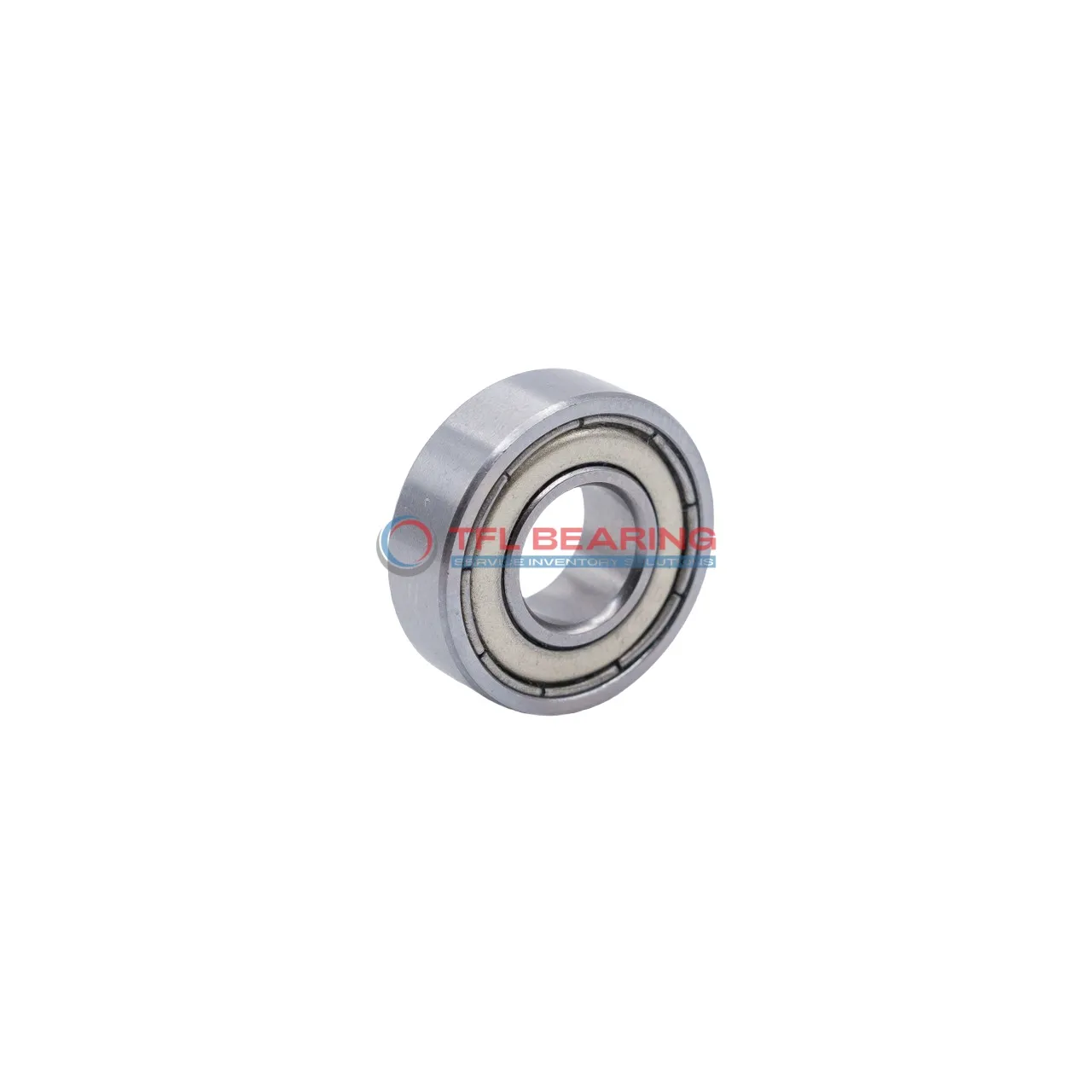

Single Row Deep Groove Ball Bearings 607-2Z

Single Row Deep Groove Ball Bearings 607-2Z

The 607-2Z is a compact single-row deep groove ball bearing, measuring just 7mm by 19mm by 6mm. Made from chrome steel, it’s built to handle radial loads up to 526 lbf and spins smoothly at speeds up to 43,000 RPM.

Its shielded design keeps grease in and dirt out, making it low-maintenance for everyday use. The stainless steel cage adds durability, while the P6 tolerance ensures precise operation.

This bearing works well in temperatures from -30°C to 120°C, suitable for various environments. It’s interchangeable with SKF models, offering a reliable replacement option.

Ideal for small motors, power tools, or appliances where space is limited. Weighing only 8.4 grams, it’s lightweight yet robust for its size. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 607-2Z
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 7 mm
  • Bore Dia Tolerance -0.007mm to 0
  • Outer Dia 19 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 6 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Lubrication Grease
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 526 lbf
  • Static Radial Load 214 lbf
  • Max Speed 43000 rpm
  • Weight 0.0084 kg
  • price（$） 1.593
Single Row Deep Groove Ball Bearings 607-2Z dimension drawing
Download DWG Download PDF

Features

How Does 607-2Z Bearing Reduce Friction?

607-2Z Bearing features a single-row deep groove design, optimised for smooth radial load handling.
Its chrome steel construction ensures durability while minimising friction during operation.

The shielded design protects against contaminants, maintaining consistent performance.
With a maximum speed of 43,000 rpm, it delivers reliable efficiency in compact applications.

Grease lubrication further enhances its low-friction operation, reducing wear over time.
This makes 607-2Z Bearing a practical choice for precision machinery.

Application

Common Applications of 607-2Z Bearing
607-2Z Bearing is widely used in small electric motors, such as those found in household appliances and power tools. Its shielded design keeps contaminants out while maintaining smooth rotation.

In automation systems, 607-2Z Bearing fits perfectly in compact robotic joints and conveyor rollers. The P6 tolerance ensures precise movement, which is essential for consistent performance.

For consumer electronics like printers and cooling fans, 607-2Z Bearing offers reliable operation with minimal noise. The grease lubrication helps extend its lifespan even with continuous use.

Medical devices such as dental handpieces benefit from 607-2Z Bearing’s chrome steel construction. Its small size and high-speed capability make it ideal for precision instruments.
