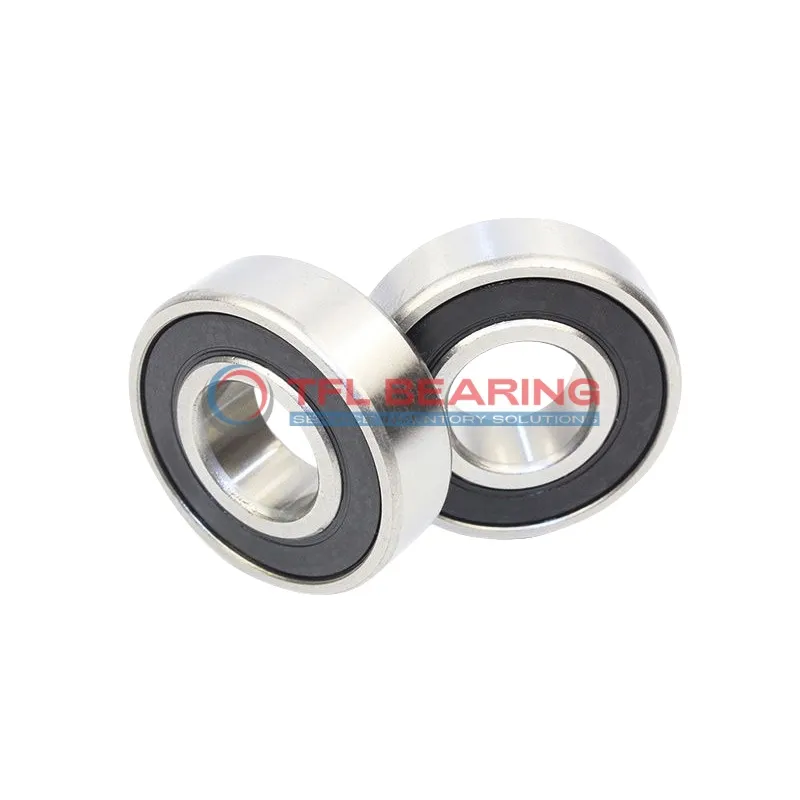

Single Row Deep Groove Ball Bearings 607-2RSLTN9/CNHLHT23

Single Row Deep Groove Ball Bearings 607-2RSLTN9/CNHLHT23

The 607-2RSLTN9/CNHLHT23 is a compact single-row deep groove ball bearing, measuring 7mm in bore and 19mm in outer diameter, with a width of just 6mm. Made from chrome steel, it offers reliable performance for radial loads up to 447 lbf.

Its sealed design keeps out dust and dirt, while the nylon cage ensures smooth operation at speeds up to 36,000 RPM. The bearing works well in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for small motors, fans, or appliances where space is limited.

Weighing only 7.8g, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 607-2RSLTN9/CNHLHT23
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 7 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 19 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 6 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 447 lbf
  • Static Radial Load 161 lbf
  • Max Speed 36000 rpm
  • Weight 7.8 g
Single Row Deep Groove Ball Bearings 607-2RSLTN9/CNHLHT23 dimension drawing
Download DWG Download PDF

Features

Performance Features of 607-2RSLTN9/CNHLHT23 Bearing

607-2RSLTN9/CNHLHT23 Bearing features a sealed design, protecting against dust and moisture for reliable operation.
Its chrome steel construction ensures durability and resistance to wear in radial load applications.

The nylon cage maintains ball alignment, reducing friction and noise during high-speed operation.
With a maximum speed of 36,000 rpm, it delivers efficient performance in compact spaces.

607-2RSLTN9/CNHLHT23 Bearing operates in temperatures from -30°C to 120°C, suitable for varied environments.
Its ABEC 1 tolerance and CN radial clearance provide consistent precision for general applications.

Application

Common Applications of 607-2RSLTN9/CNHLHT23 Bearing
In industrial machinery, 607-2RSLTN9/CNHLHT23 Bearing is commonly used in small motors and pumps, where its sealed design helps keep out dust and debris. The nylon cage ensures smooth operation even at higher speeds.

Where Is 607-2RSLTN9/CNHLHT23 Bearing Used?
You’ll often find 607-2RSLTN9/CNHLHT23 Bearing in household appliances like electric fans and power tools, thanks to its compact size and reliable performance. The chrome steel construction provides good durability for everyday use.

Built for Versatility: 607-2RSLTN9/CNHLHT23 Bearing
This bearing works well in automation equipment, such as small robotic arms, where precision and low maintenance are key. Its ABEC 1 tolerance makes it suitable for general-purpose applications.

Light-Duty vs Heavy-Duty: Best Uses for 607-2RSLTN9/CNHLHT23 Bearing
For light-duty tasks like printer mechanisms, 607-2RSLTN9/CNHLHT23 Bearing offers a balance of performance and cost-effectiveness. In more demanding settings, it’s best suited for moderate-speed operations.
