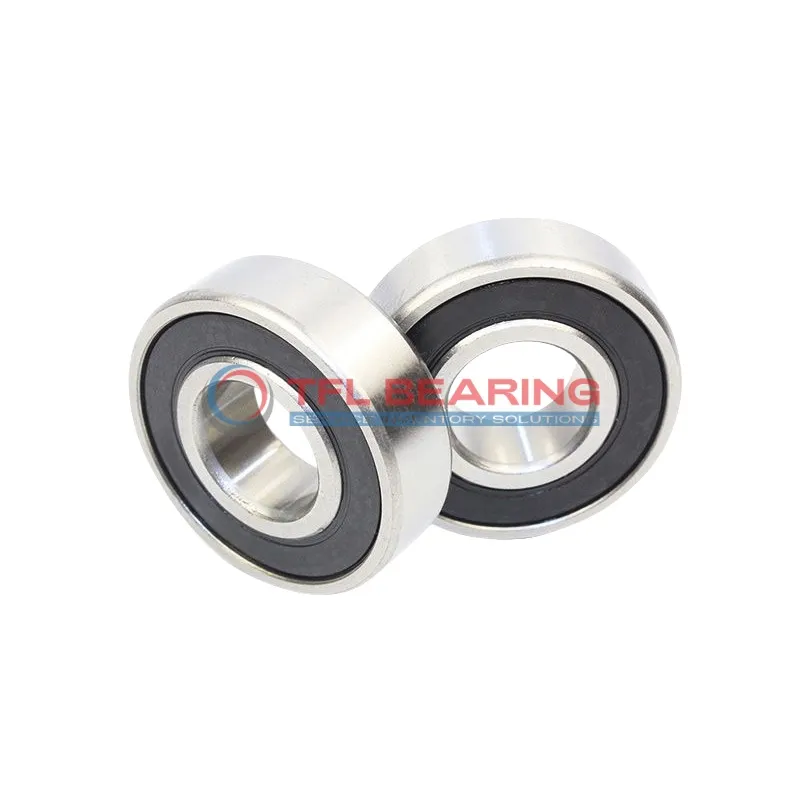

Single Row Deep Groove Ball Bearings 607-2RSL

Single Row Deep Groove Ball Bearings 607-2RSL

The 607-2RSL is a compact single-row deep groove ball bearing, measuring 7mm in bore and 19mm in outer diameter, with a width of just 6mm. Made from chrome steel, it offers reliable performance for radial loads up to 526 lbf.

Its sealed design keeps grease in and dirt out, making it low-maintenance. The stainless steel cage ensures smooth operation even at high speeds, up to 43,000 RPM.

This bearing works well in temperatures from -30°C to 120°C, suitable for various environments. It’s interchangeable with SKF models, ideal for replacements in small motors or appliances.

Weighing only 0.0078kg, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 607-2RSL
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 7 mm
  • Bore Dia Tolerance -0.007mm to 0
  • Outer Dia 19 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 6 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Lubrication Grease
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 526 lbf
  • Static Radial Load 214 lbf
  • Max Speed 43000 rpm
  • Weight 0.0078 kg
  • price（$） 0.783
Single Row Deep Groove Ball Bearings 607-2RSL dimension drawing
Download DWG Download PDF

Features

How Does 607-2RSL Bearing Reduce Friction?

607-2RSL Bearing features a sealed design with chrome steel rings and balls, ensuring smooth operation with minimal friction.
The grease lubrication further enhances performance, reducing wear and extending the bearing’s life.
With a dynamic radial load capacity of 526 lbf, it handles radial loads efficiently.
Its compact size of 7 mm×19 mm×6 mm makes it suitable for applications where space is limited.

Application

Common Applications of 607-2RSL Bearing
607-2RSL Bearing is widely used in small electric motors, such as those found in household appliances and power tools. Its sealed design keeps out dust and moisture, ensuring long-lasting performance in everyday environments.

In automation systems, 607-2RSL Bearing fits neatly into compact robotic arms and 3D printers, where its smooth rotation is key to precise movements. The P6 tolerance class ensures consistent accuracy for delicate tasks.

For consumer electronics like printers and cooling fans, 607-2RSL Bearing’s grease lubrication reduces noise during high-speed operation. The chrome steel construction provides just the right balance of strength and affordability for mass-produced devices.

Medical device manufacturers often choose 607-2RSL Bearing for portable diagnostic equipment due to its reliable sealed performance. The stainless steel cage prevents contamination in cleanroom environments while handling radial loads effectively.

In automotive accessories like dashboard mechanisms or wiper motors, 607-2RSL Bearing’s compact size and sealed protection prove particularly useful. Its temperature range covers both freezing winters and hot summer conditions without compromising performance.
