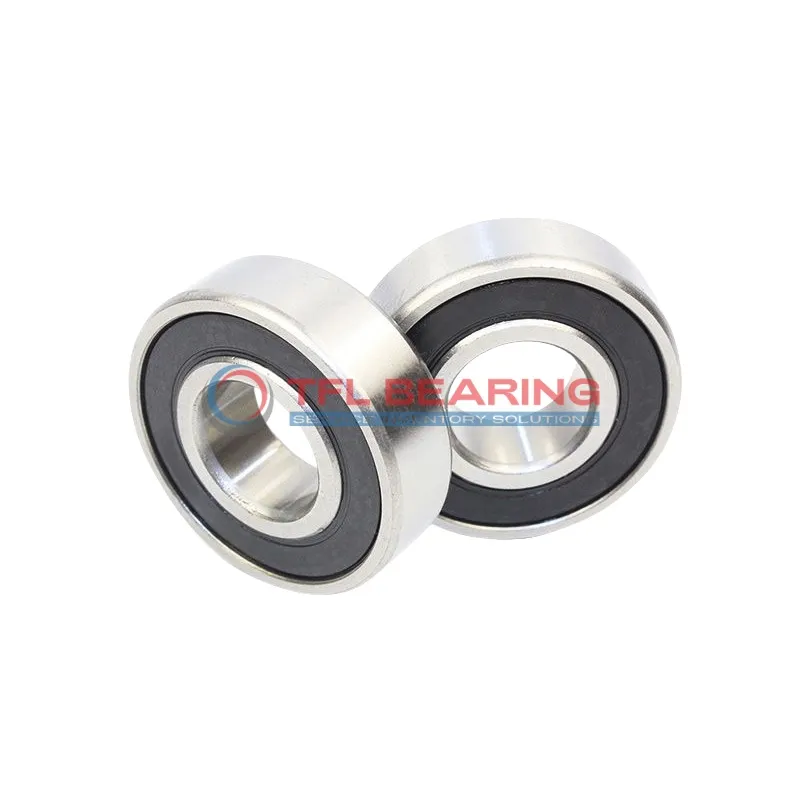

Single Row Deep Groove Ball Bearings 607-2RSH/LHT23

Single Row Deep Groove Ball Bearings 607-2RSH/LHT23

The 607-2RSH/LHT23 is a compact single-row deep groove ball bearing, measuring just 7mm in bore and 19mm in outer diameter. Made from durable chrome steel, it handles radial loads up to 447 lbf and spins smoothly at speeds up to 36,000 RPM.

Its sealed design keeps out dust and moisture, making it low-maintenance for long-term use. The bearing operates well in temperatures from -30°C to 120°C, suitable for various environments.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Ideal for small motors, fans, or appliances where space is limited but performance is key.

Weighing only 7.8g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards, ensuring safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 607-2RSH/LHT23
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 7 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 19 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 6 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 447 lbf
  • Static Radial Load 161 lbf
  • Max Speed 36000 rpm
  • Weight 7.8 g
  • price（$） 1.98
Single Row Deep Groove Ball Bearings 607-2RSH/LHT23 dimension drawing
Download DWG Download PDF

Features

Why Choose 607-2RSH/LHT23 Bearing for Precision Tasks?

607-2RSH/LHT23 Bearing is designed with chrome steel rings and balls, ensuring durability and smooth operation.

Its sealed construction protects against dust and moisture, making it suitable for various environments.

With a dynamic radial load capacity of 447 lbf, it handles demanding applications efficiently.

The bearing operates at speeds up to 36,000 rpm, offering reliable performance for precision tasks.

Application

Common Applications of 607-2RSH/LHT23 Bearing
The 607-2RSH/LHT23 Bearing is widely used in small electric motors, such as those found in household appliances and power tools. Its sealed design helps keep out dust and moisture, ensuring longer service life in everyday conditions.

In automation systems, 607-2RSH/LHT23 Bearing provides smooth rotation for components like conveyor rollers and small robotic arms. The chrome steel construction offers a good balance of strength and affordability for light industrial use.

For consumer electronics, 607-2RSH/LHT23 Bearing is often found in devices like computer cooling fans and printer mechanisms. Its compact size and reliable performance make it a popular choice for space-constrained applications.

The 607-2RSH/LHT23 Bearing also works well in light-duty machinery where moderate radial loads are present. Its ABEC 1 tolerance ensures decent precision without the higher cost of ultra-precise bearings.

In hobbyist projects like RC cars or drones, 607-2RSH/LHT23 Bearing offers good value for money. The sealed design protects against dirt while maintaining smooth operation during high-speed rotation.
