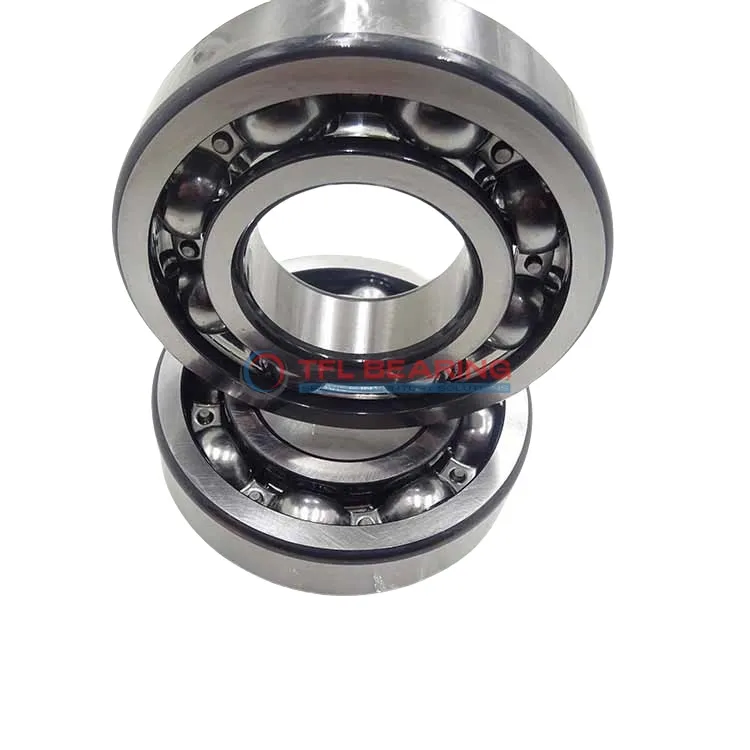

Single Row Deep Groove Ball Bearings 6040 M

Single Row Deep Groove Ball Bearings 6040 M

The 6040 M is a single-row deep groove ball bearing with a 200mm bore and 310mm outer diameter, crafted from sturdy chrome steel for lasting performance. It manages radial loads up to 48559 lbf and operates smoothly at speeds up to 3600 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. It’s well-suited for heavy-duty machinery or industrial equipment where radial load support is key.

Weighing 14kg, it’s built to handle demanding conditions while complying with RoHS and REACH standards for safety and environmental care.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6040 M
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 200 mm
  • Bore Dia Tolerance -0.022mm to 0
  • Outer Dia 310 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 51 mm
  • Width Tolerance -0.3mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 48559 lbf
  • Static Radial Load 55078 lbf
  • Max Speed 3600 rpm
  • Weight 14000 g
  • price（$） 344.988
Single Row Deep Groove Ball Bearings 6040 M dimension drawing
Download DWG Download PDF

Features

Performance Features of 6040 M Bearing

6040 M Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 48,559 lbf, making it suitable for heavy-duty applications.

The stainless steel cage ensures smooth operation by keeping the balls properly aligned.
With a maximum speed of 3,600 rpm, it balances performance and durability.

6040 M Bearing operates efficiently in temperatures ranging from -30° to 120°C.
Its open design allows for easy maintenance and reduces operational costs.

The precision P6 tolerance class ensures reliable performance in demanding conditions.
This makes 6040 M Bearing a practical choice for various industrial applications.

Application

Industrial Uses of 6040 M Bearing
The 6040 M Bearing is commonly used in heavy machinery like industrial pumps and gearboxes, where its robust radial load capacity ensures reliable performance. Its open design allows for easy lubrication, making it suitable for high-temperature environments.

In automotive applications, 6040 M Bearing supports components such as wheel hubs and transmissions, providing smooth operation under demanding conditions. The P6 tolerance class ensures precise alignment, reducing wear over time.

For automation systems, 6040 M Bearing’s stainless steel cage and chrome steel construction offer durability in robotic arms and conveyor belts. Its metric sizing makes it compatible with a variety of European and Asian equipment.

Where Is 6040 M Bearing Used?
You’ll often find 6040 M Bearing in wind turbines, where its ability to handle radial loads and high speeds is crucial. The chrome steel rings and balls provide long-lasting performance even in harsh weather conditions.

In household appliances like washing machines, 6040 M Bearing ensures quiet and efficient operation. Its wide temperature range makes it adaptable to both hot and cold environments.
