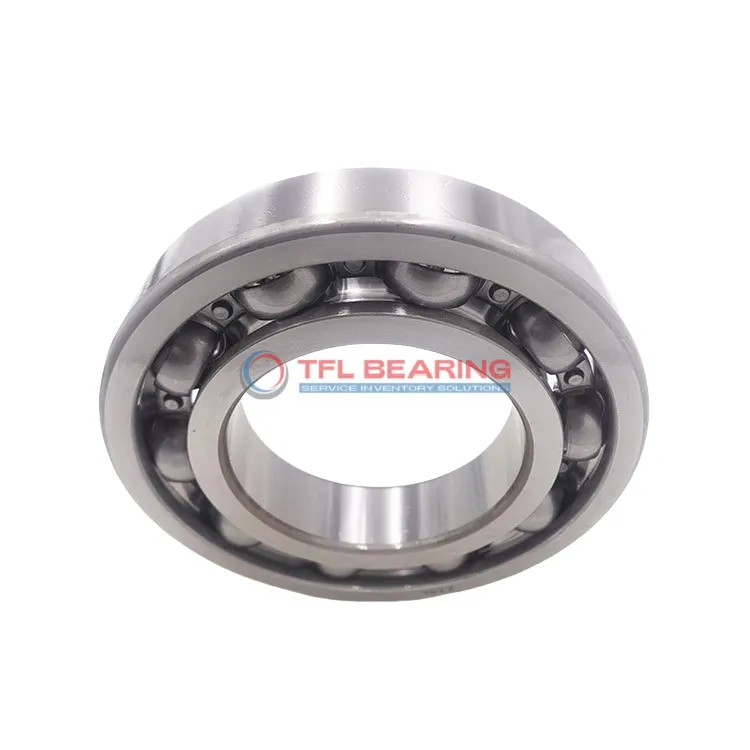

Single Row Deep Groove Ball Bearings 6028 M

Single Row Deep Groove Ball Bearings 6028 M

The 6028 M is a single-row deep groove ball bearing with a 140mm bore and 210mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 24954 lbf and operates smoothly at speeds up to 5300 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances durability. Suitable for temperatures ranging from -30°C to 120°C, it’s built for consistent performance.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Perfect for machinery like pumps or electric motors where radial loads are common.

Weighing 4kg, it’s a robust choice for industrial applications. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6028 M
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 140 mm
  • Bore Dia Tolerance -0.018mm to 0
  • Outer Dia 210 mm
  • Outer Dia Tolerance -0.020mm to 0
  • Width 33 mm
  • Width Tolerance -0.25mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 24954 lbf
  • Static Radial Load 24279 lbf
  • Max Speed 5300 rpm
  • Weight 4 kg
Single Row Deep Groove Ball Bearings 6028 M dimension drawing
Download DWG Download PDF

Features

Performance Features of 6028 M Bearing

6028 M Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 24954 lbf.
Its stainless steel cage ensures smooth operation and reduces wear, even at high speeds of 5,300 rpm.

The single-row deep groove design enhances radial load handling, making it suitable for various applications.
With a temperature range of -30° to 120°C, 6028 M Bearing performs reliably in diverse conditions.

The P6 tolerance class ensures precision, while the open seal design simplifies maintenance.
Its robust construction and high load capacity make it a dependable choice for industrial use.

Application

Industrial Uses of 6028 M Bearing
6028 M Bearing is commonly used in heavy machinery like industrial pumps and gearboxes, where its deep groove design handles radial loads efficiently. The chrome steel construction ensures durability in demanding environments.

Where Is 6028 M Bearing Used?
You’ll often find 6028 M Bearing in conveyor systems and electric motors, thanks to its high dynamic load capacity. Its open design simplifies lubrication, making it a reliable choice for continuous operation.

Built for Heavy-Duty Use: 6028 M Bearing
6028 M Bearing excels in applications like agricultural equipment and construction machinery, where its robust build withstands harsh conditions. The P6 tolerance class ensures precision even under heavy loads.

Automotive vs Industrial: Applications of 6028 M Bearing
In automotive systems, 6028 M Bearing supports components like alternators and fans, while in industrial settings, it’s ideal for compressors and blowers. Its metric sizing fits seamlessly into various designs.

Perfect Fit for Automation: 6028 M Bearing
6028 M Bearing is a go-to for robotic arms and automated assembly lines, where smooth rotation is key. The stainless steel cage reduces friction, enhancing performance in high-speed scenarios.
