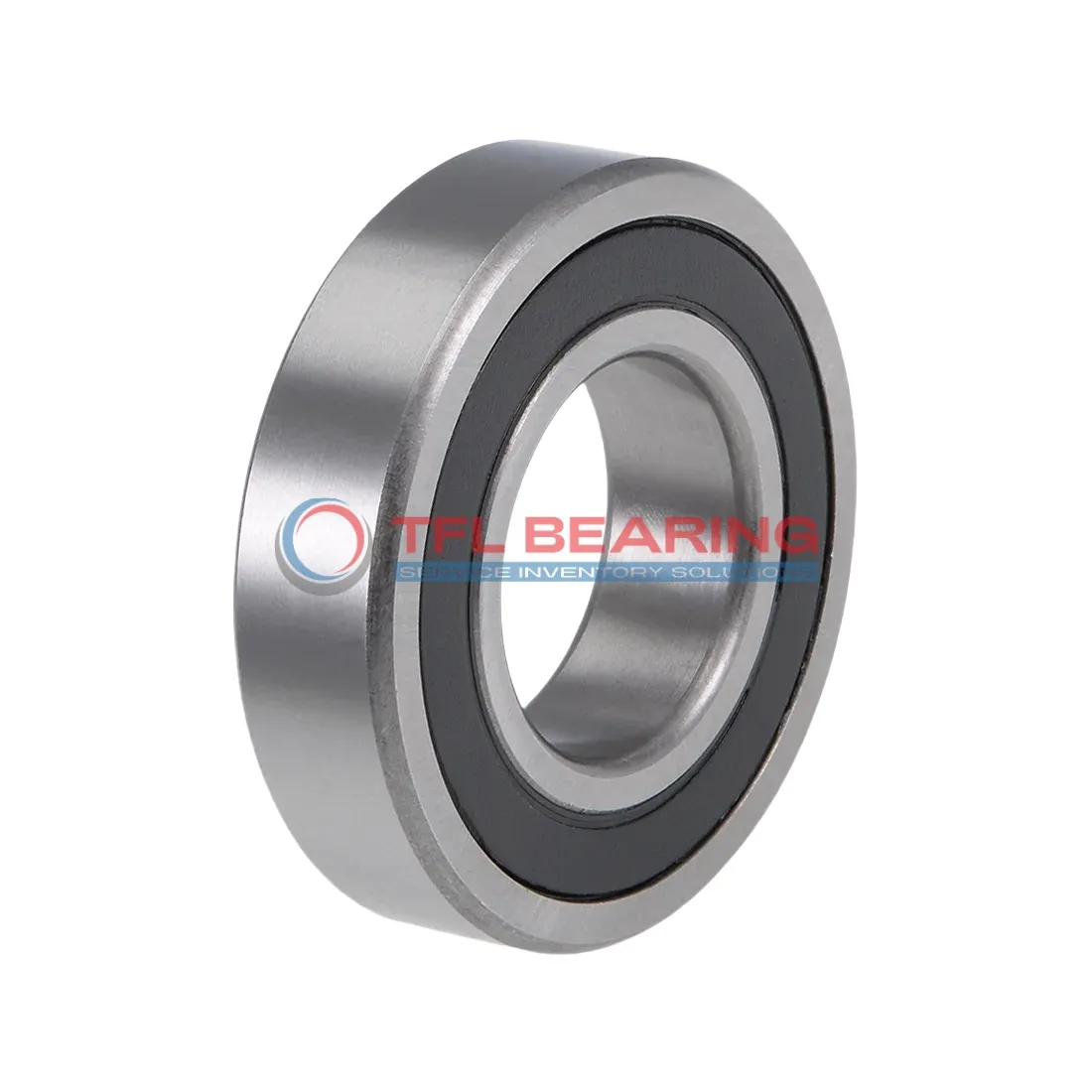

Single Row Deep Groove Ball Bearings 6028-2RS1

Single Row Deep Groove Ball Bearings 6028-2RS1

The 6028-2RS1 is a single-row deep groove ball bearing with a 140mm bore and 210mm outer diameter, built from sturdy chrome steel. It handles radial loads up to 24954 lbf and operates smoothly at speeds up to 1800 RPM.

Its sealed design keeps grease in and dirt out, making it low-maintenance for long-term use. The stainless steel cage adds durability, while the P6 tolerance ensures precise performance.

This bearing works well in temperatures from -30°C to 120°C, suitable for various industrial settings. It’s interchangeable with SKF models, offering a reliable replacement option.

Weighing 3.53kg, it’s robust for heavy-duty applications like pumps or electric motors. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6028-2RS1
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 140 mm
  • Bore Dia Tolerance -0.018mm to 0
  • Outer Dia 210 mm
  • Outer Dia Tolerance -0.020mm to 0
  • Width 33 mm
  • Width Tolerance -0.25mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Lubrication Grease
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 24954 lbf
  • Static Radial Load 24279 lbf
  • Max Speed 1800 rpm
  • Weight 3.53 kg
  • price（$） 125.46
Single Row Deep Groove Ball Bearings 6028-2RS1 dimension drawing
Download DWG Download PDF

Features

How Does 6028-2RS1 Bearing Reduce Friction?

6028-2RS1 Bearing features a sealed design with grease lubrication, ensuring smooth operation and reduced friction.
The chrome steel rings and balls provide excellent durability, even under high radial loads.
With a dynamic radial load capacity of 24954 lbf, it handles demanding applications with ease.
Its P6 tolerance class ensures precision, making it suitable for various industrial uses.

Built for Reliability: 6028-2RS1 Bearing

6028-2RS1 Bearing is constructed with chrome steel and stainless steel cage, offering long-lasting performance.
The sealed design protects against contaminants, extending its service life in harsh environments.
It operates efficiently within a temperature range of -30° to 120°C, ensuring versatility.
With a maximum speed of 1,800 rpm, it balances speed and durability.

Technical Highlights of 6028-2RS1 Bearing

6028-2RS1 Bearing’s deep groove design enhances its radial load capacity, reaching 24954 lbf dynamically.
The grease lubrication and sealed construction minimise maintenance needs while ensuring smooth operation.
Its precision P6 tolerance class guarantees consistent performance in various applications.
The chrome steel materials provide resistance to wear, making it a reliable choice.

Application

Industrial Uses of 6028-2RS1 Bearing
6028-2RS1 Bearing is commonly used in heavy machinery like conveyor systems and industrial fans, where its sealed design protects against dust and debris. The chrome steel construction ensures durability in demanding environments.

What Makes 6028-2RS1 Bearing a Preferred Choice?
In automotive applications, 6028-2RS1 Bearing fits well in wheel hubs and transmissions, offering reliable radial load support. Its grease lubrication reduces maintenance needs, making it a cost-effective option.

Perfect Fit for Automation: 6028-2RS1 Bearing
6028-2RS1 Bearing works smoothly in robotic arms and automated assembly lines, thanks to its precise P6 tolerance. The stainless steel cage adds longevity, even in high-speed operations.

Medical vs Industrial: Where 6028-2RS1 Bearing Excels
While 6028-2RS1 Bearing handles industrial loads effortlessly, it also suits medical devices like MRI machines, where quiet operation is essential. The temperature range ensures performance in varied conditions.
