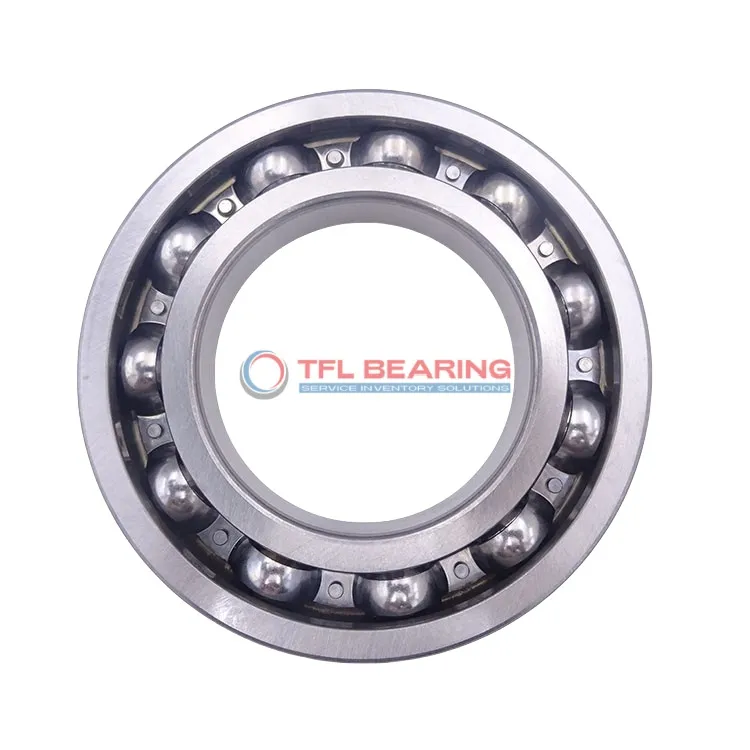

Single Row Deep Groove Ball Bearings 6024

Single Row Deep Groove Ball Bearings 6024

The 6024 is a single-row deep groove ball bearing with a 120mm bore and 180mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 19873 lbf and runs smoothly at speeds up to 4800 RPM.

Its open design simplifies maintenance, while the precision P6 tolerance ensures reliable performance. The bearing operates well in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a cost-effective alternative for replacements. Perfect for machinery like pumps or electric motors where radial loads are common.

Weighing 2100g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6024
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 120 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 180 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 28 mm
  • Width Tolerance -0.2mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 19873 lbf
  • Static Radial Load 17985 lbf
  • Max Speed 4800 rpm
  • Weight 2100 g
  • price（$） 62.28
Single Row Deep Groove Ball Bearings 6024 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6024 Bearing

6024 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 19873 lbf, ensuring reliable performance in various applications.

The single-row deep groove design of 6024 Bearing allows for smooth operation and reduced friction.
With a maximum speed of 4,800 rpm, it balances durability and efficiency.

6024 Bearing operates effectively in temperatures ranging from -30° to 120°C.
Its compliant RoHS and REACH status ensures it meets environmental standards.

The precise tolerances of 6024 Bearing enhance its performance in demanding conditions.
Its open seal type simplifies maintenance and reduces operational costs.

Application

Industrial Uses of 6024 Bearing
The 6024 Bearing is commonly used in industrial machinery like pumps and electric motors, where its radial load capacity ensures reliable performance. Its open design allows for easy lubrication, extending service life in demanding conditions.

Where Is 6024 Bearing Used?
You’ll find the 6024 Bearing in automotive applications such as wheel hubs and transmissions, thanks to its robust chrome steel construction. Its metric sizing makes it a versatile choice for various vehicle designs.

Perfect Fit for Automation: 6024 Bearing
In automated systems like conveyor belts, the 6024 Bearing provides smooth operation under continuous radial loads. Its P6 tolerance class ensures precision in high-speed environments.

Medical vs Industrial: Where 6024 Bearing Excels
While the 6024 Bearing handles industrial equipment like compressors well, it also suits medical devices requiring consistent performance. Its temperature range makes it adaptable to different operating conditions.

Key Fields for 6024 Bearing
The 6024 Bearing is ideal for household appliances like washing machines, where durability and quiet operation matter. Its static radial load capacity ensures stability even under uneven loads.
