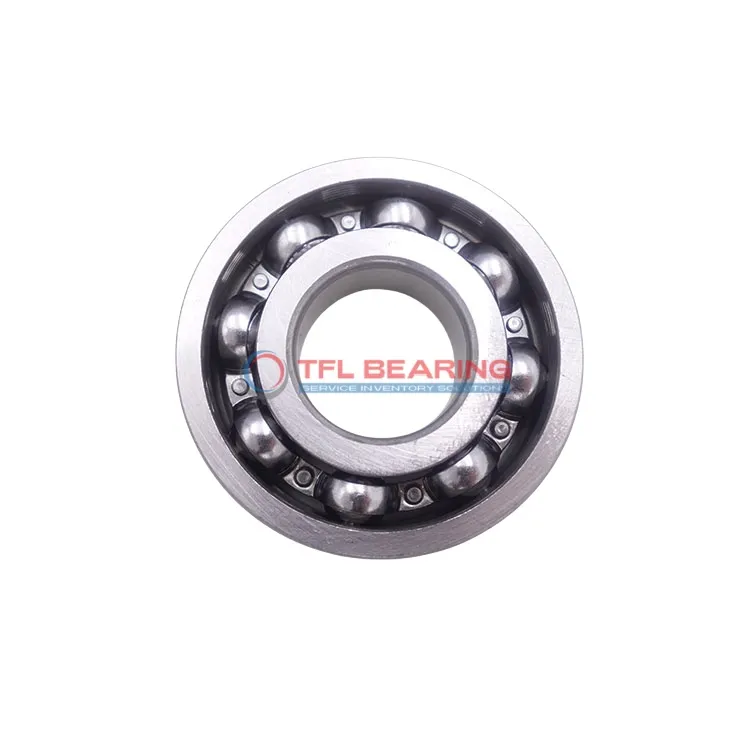

Single Row Deep Groove Ball Bearings 6020/W64E

Single Row Deep Groove Ball Bearings 6020/W64E

The 6020/W64E is a single-row deep groove ball bearing with a 100mm bore and 150mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 13533 lbf and operates smoothly at speeds up to 4300 RPM.

Its open design and solid oil lubrication ensure low maintenance, while the chrome steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for radial load applications like electric motors or pumps where consistent performance is key.

Weighing 1250g, it’s a robust choice for industrial use. Compliant with RoHS and REACH standards for safe and eco-friendly operation.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6020/W64E
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 100 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 150 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 24 mm
  • Width Tolerance -0.200mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 13533 lbf
  • Static Radial Load 12185 lbf
  • Max Speed 4300 rpm
  • Weight 1250 g
Single Row Deep Groove Ball Bearings 6020/W64E dimension drawing
Download DWG Download PDF

Features

How Does 6020/W64E Bearing Reduce Friction?

6020/W64E Bearing features a single row deep groove design, optimised for smooth radial load distribution.
Its chrome steel construction ensures durability while reducing friction during operation.
The solid oil lubrication maintains consistent performance across a temperature range of -30°C to 120°C.
With a dynamic radial load capacity of 13533 lbf, it offers reliable performance in various applications.

Application

Industrial Uses of 6020/W64E Bearing
You’ll often spot 6020/W64E Bearing in conveyor systems and industrial fans, where its solid oil lubrication keeps things running smoothly without frequent maintenance. The deep groove design handles radial loads effortlessly, making it a reliable choice for continuous operation.

Where Is 6020/W64E Bearing Used?
In automotive electric motors, 6020/W64E Bearing provides stable support thanks to its chrome steel construction. The ABEC 1 tolerance ensures consistent performance even under varying temperatures common in engine compartments.

Built for Heavy-Duty Use: 6020/W64E Bearing
This bearing shines in agricultural machinery like harvesters, where its 24mm width offers extra stability during rough field work. The open design allows easy inspection and cleaning after exposure to dust or crop residue.

Medical vs Industrial: Where 6020/W64E Bearing Excels
While suitable for industrial centrifuges, 6020/W64E Bearing also fits lab equipment requiring precise rotation. Its temperature range (-30° to 120°C) covers both sterile environments and processing plants.

Perfect Fit for Automation: 6020/W64E Bearing
In packaging line robots, 6020/W64E Bearing’s 100mm bore accommodates larger shafts commonly used in high-throughput systems. The CN clearance provides just the right balance between precision and thermal expansion tolerance.
