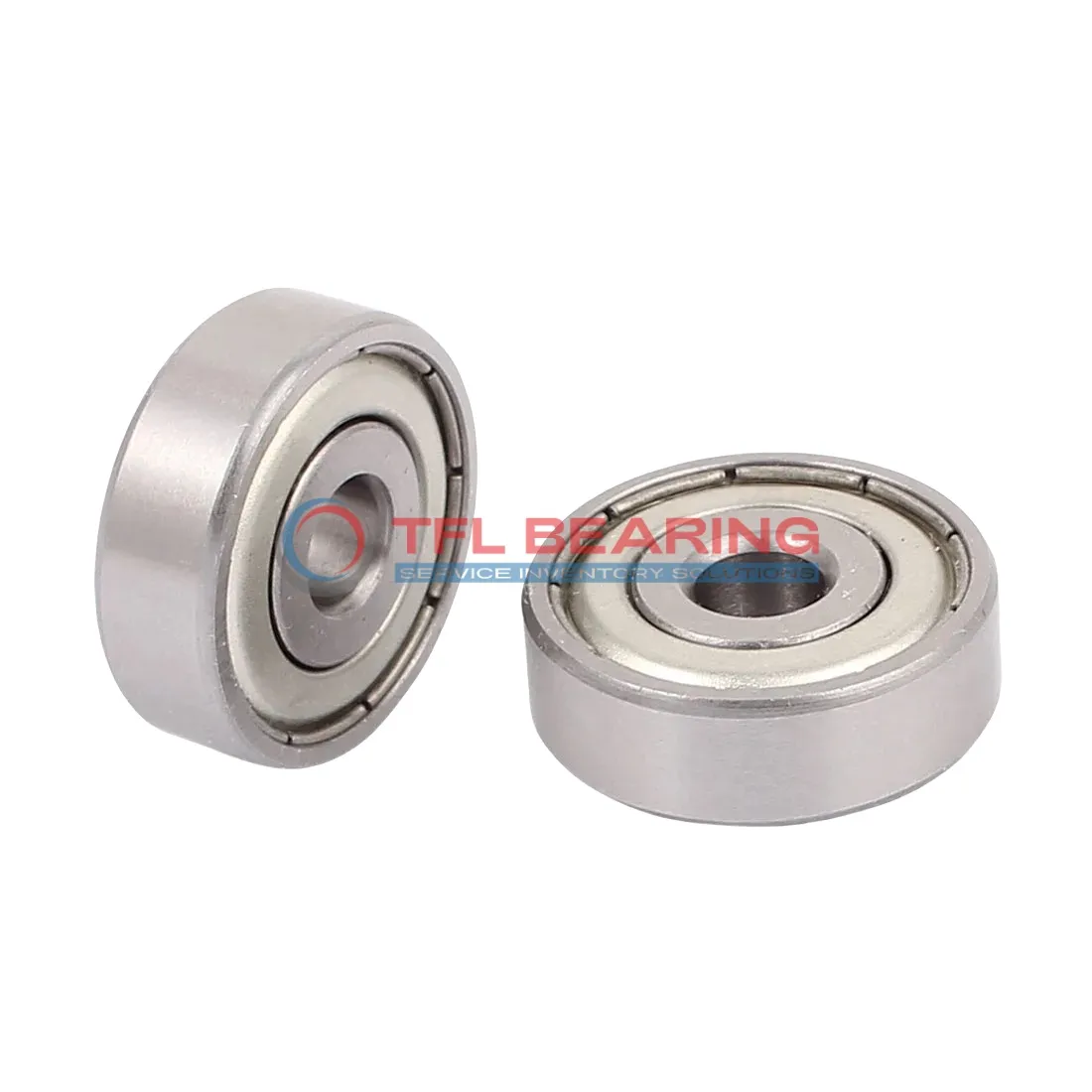

Single Row Deep Groove Ball Bearings 6020-2Z/GJN

Single Row Deep Groove Ball Bearings 6020-2Z/GJN

The 6020-2Z/GJN is a single-row deep groove ball bearing with a 100mm bore and 150mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 13533 lbf and operates smoothly at speeds up to 4300 RPM.

Shielded on both sides, it keeps dirt out while maintaining smooth rotation. The chrome steel cage adds durability, making it a reliable choice for various applications.

This bearing works well in temperatures from -30°C to 120°C, suitable for industrial environments. It’s interchangeable with SKF bearings, offering a cost-effective alternative.

Ideal for machinery like pumps or electric motors where radial loads are common. Compliant with RoHS and REACH standards, ensuring safe and eco-friendly use. Weighing 1250g, it balances strength and practicality.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6020-2Z/GJN
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 100 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 150 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 24 mm
  • Width Tolerance -0.200mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 13533 lbf
  • Static Radial Load 12185 lbf
  • Max Speed 4300 rpm
  • Weight 1250 g
  • price（$） 39.258
Single Row Deep Groove Ball Bearings 6020-2Z/GJN dimension drawing
Download DWG Download PDF

Features

Performance Features of 6020-2Z/GJN Bearing

6020-2Z/GJN Bearing is designed for radial loads, with a dynamic radial load capacity of 13533 lbf.
Its chrome steel construction ensures durability and resistance to wear in various applications.

The shielded design of 6020-2Z/GJN Bearing protects against contaminants, extending its service life.
It operates smoothly within a temperature range of -30°C to 120°C, making it versatile for different environments.

With a maximum speed of 4,300 rpm, 6020-2Z/GJN Bearing balances performance and reliability.
Its precision engineering meets ABEC 1 and ISO P0 standards, ensuring consistent quality.

The compact design of 6020-2Z/GJN Bearing makes it easy to install in tight spaces.
Its chrome steel cage maintains ball alignment, reducing friction and noise during operation.

Application

Industrial Uses of 6020-2Z/GJN Bearing
6020-2Z/GJN Bearing is commonly used in industrial machinery, such as pumps and electric motors, where its shielded design helps keep contaminants out. The chrome steel construction ensures durability in demanding environments.

What Makes 6020-2Z/GJN Bearing a Preferred Choice?
In automotive applications, 6020-2Z/GJN Bearing fits well in wheel hubs and transmissions, offering reliable radial load support. Its ABEC 1 tolerance makes it suitable for standard precision needs.

Perfect Fit for Automation: 6020-2Z/GJN Bearing
For automated systems like conveyor belts, 6020-2Z/GJN Bearing provides smooth operation with minimal maintenance. The shielded seals help extend its lifespan in dusty or humid conditions.

Light-Duty vs Heavy-Duty: Best Uses for 6020-2Z/GJN Bearing
In light-duty applications like household appliances, 6020-2Z/GJN Bearing ensures quiet and efficient performance. For heavier tasks, it handles radial loads effectively in industrial gearboxes.

Medical vs Industrial: Where 6020-2Z/GJN Bearing Excels
While not typically used in medical devices, 6020-2Z/GJN Bearing shines in industrial settings like compressors. Its robust design and temperature range make it versatile for various machinery.
