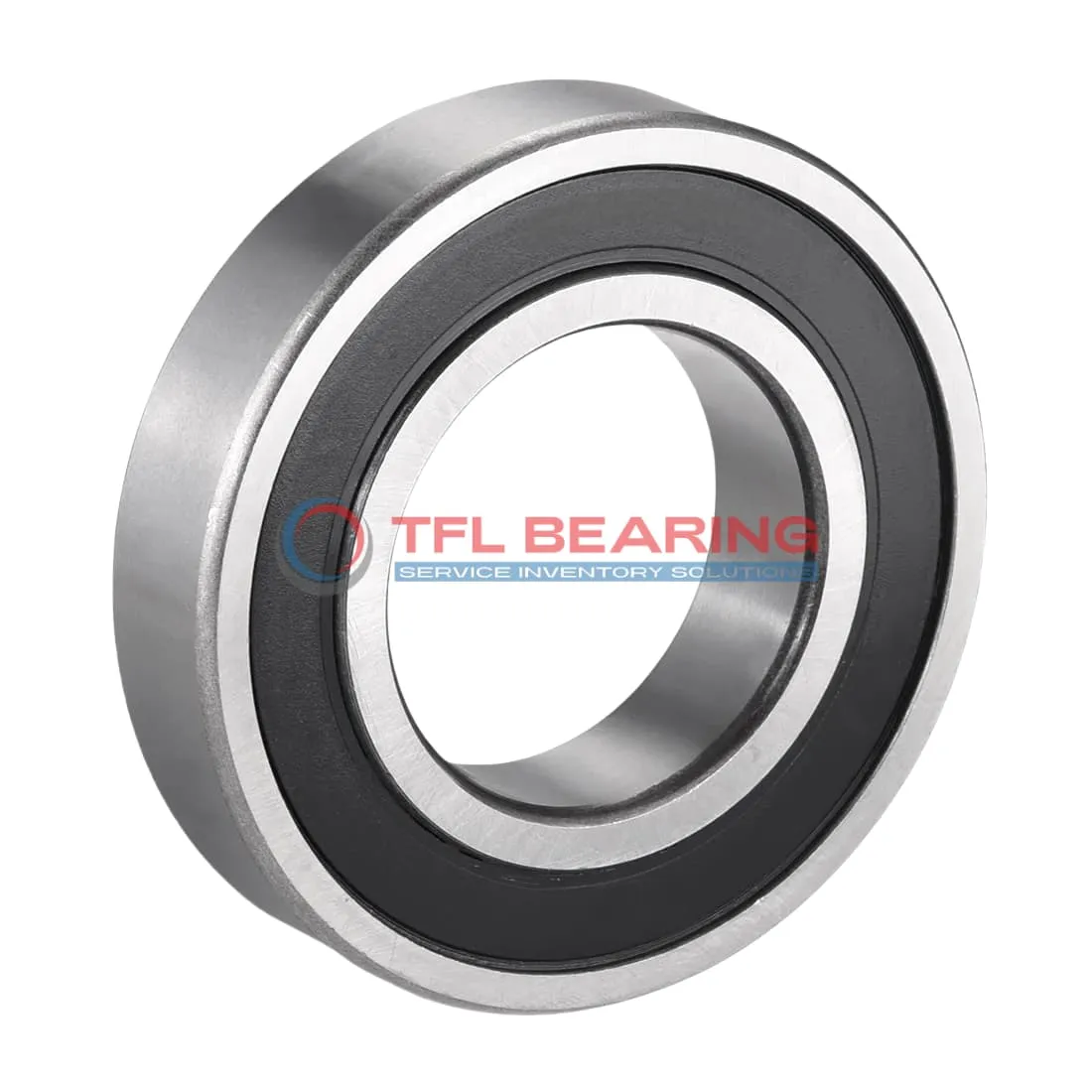

Single Row Deep Groove Ball Bearings 6019-2RS1/W64

Single Row Deep Groove Ball Bearings 6019-2RS1/W64

The 6019-2RS1/W64 is a single-row deep groove ball bearing with a 95mm bore and 145mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 14320 lbf and operates smoothly at speeds up to 6000 RPM.

Sealed on both sides, it keeps dirt out and solid oil lubrication in, reducing maintenance needs. The chrome steel cage adds durability, making it a long-lasting choice.

This bearing works well in temperatures from -30°C to 120°C, suitable for various industrial environments. It’s interchangeable with SKF bearings, easing replacements.

Ideal for machinery like pumps or electric motors where reliable radial load support is needed. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6019-2RS1/W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 95 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 145 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 24 mm
  • Width Tolerance -0.2mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 14320 lbf
  • Static Radial Load 12140 lbf
  • Max Speed 6000 rpm
  • price（$） 76.221
Single Row Deep Groove Ball Bearings 6019-2RS1/W64 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6019-2RS1/W64 Bearing

6019-2RS1/W64 Bearing is designed with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 14320 lbf, ensuring reliable performance in various applications.

The sealed design of 6019-2RS1/W64 Bearing protects against dust and moisture, extending its service life.
Solid oil lubrication ensures smooth operation, reducing the need for frequent maintenance.

With a maximum speed of 6,000 rpm, 6019-2RS1/W64 Bearing balances durability and efficiency.
Its temperature range of -30°C to 120°C makes it suitable for diverse working conditions.

Application

Industrial Uses of 6019-2RS1/W64 Bearing
The 6019-2RS1/W64 Bearing is commonly used in industrial machinery like pumps and compressors, where its sealed design helps keep contaminants out. Its solid oil lubrication ensures smooth operation even in demanding environments.

Where Is 6019-2RS1/W64 Bearing Used?
You’ll often find the 6019-2RS1/W64 Bearing in automotive applications such as electric motors and transmissions. Its radial load capacity makes it a reliable choice for these high-performance systems.

Built for Heavy-Duty Use: 6019-2RS1/W64 Bearing
The 6019-2RS1/W64 Bearing works well in agricultural equipment, handling radial loads with ease. Its chrome steel construction provides durability in tough conditions.

Automotive vs Industrial: Applications of 6019-2RS1/W64 Bearing
In automotive settings, the 6019-2RS1/W64 Bearing supports components like alternators and fans. For industrial use, it’s ideal for conveyor systems and gearboxes due to its sealed design.

Practical Applications of 6019-2RS1/W64 Bearing
The 6019-2RS1/W64 Bearing is a great fit for household appliances like washing machines, where quiet operation is key. Its solid oil lubrication reduces maintenance needs over time.
