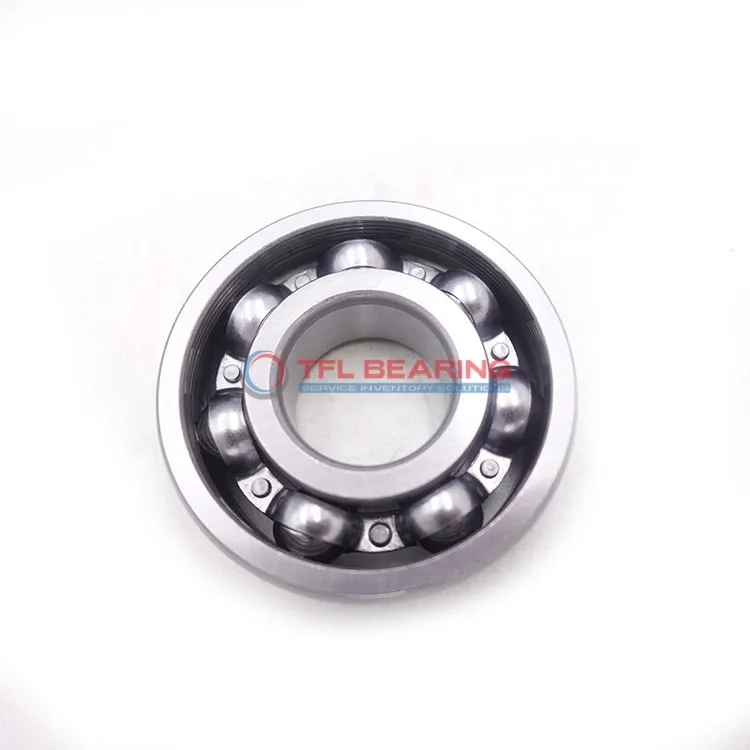

Single Row Deep Groove Ball Bearings 6018 JEM

Single Row Deep Groove Ball Bearings 6018 JEM

The 6018 JEM is a single-row deep groove ball bearing with a 90mm bore and 140mm outer diameter, crafted from sturdy chrome steel for lasting performance. It supports radial loads up to 13084 lbf and operates smoothly at speeds up to 4800 RPM.

Its open design simplifies maintenance, while the chrome steel cage enhances durability. The bearing functions reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. It’s well-suited for applications like electric motors or pumps where radial load handling is key.

Weighing 1163g, it balances strength and manageability. Compliant with RoHS and REACH standards, it’s a safe choice for various industrial uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6018 JEM
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 90 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 140 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 24 mm
  • Width Tolerance -0.200mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 13084 lbf
  • Static Radial Load 11173 lbf
  • Max Speed 4800 rpm
  • Weight 1163 g
  • price（$） 26.307
Single Row Deep Groove Ball Bearings 6018 JEM dimension drawing
Download DWG Download PDF

Features

Performance Features of 6018 JEM Bearing

6018 JEM Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 13084 lbf, ensuring reliable performance in various applications.

The chrome steel cage maintains ball alignment, reducing friction and wear.
With a maximum speed of 4,800 rpm, it balances durability and efficiency for smooth operation.

6018 JEM Bearing operates in temperatures from -30°C to 120°C, suitable for diverse environments.
Its open design simplifies maintenance, making it a practical choice for industrial use.

Application

Industrial Uses of 6018 JEM Bearing
The 6018 JEM Bearing is commonly used in industrial machinery like pumps and electric motors, where its radial load capacity ensures smooth operation.
Its open design and chrome steel construction make it suitable for environments requiring durability and easy maintenance.

What Makes 6018 JEM Bearing a Preferred Choice?
In automotive applications, 6018 JEM Bearing supports components such as alternators and transmission systems, thanks to its reliable performance under radial loads.
The metric sizing ensures compatibility with a variety of vehicle models, making it a versatile option.

Perfect Fit for Automation: 6018 JEM Bearing
For automation equipment like conveyor belts and robotic arms, 6018 JEM Bearing offers consistent performance and low friction.
Its chrome steel cage enhances longevity, even in high-speed operations.

Medical vs Industrial: Where 6018 JEM Bearing Excels
While 6018 JEM Bearing is robust enough for industrial gear, it also finds use in medical devices like centrifuges, where precision is key.
The temperature range of -30° to 120°C ensures reliability across different operating conditions.
