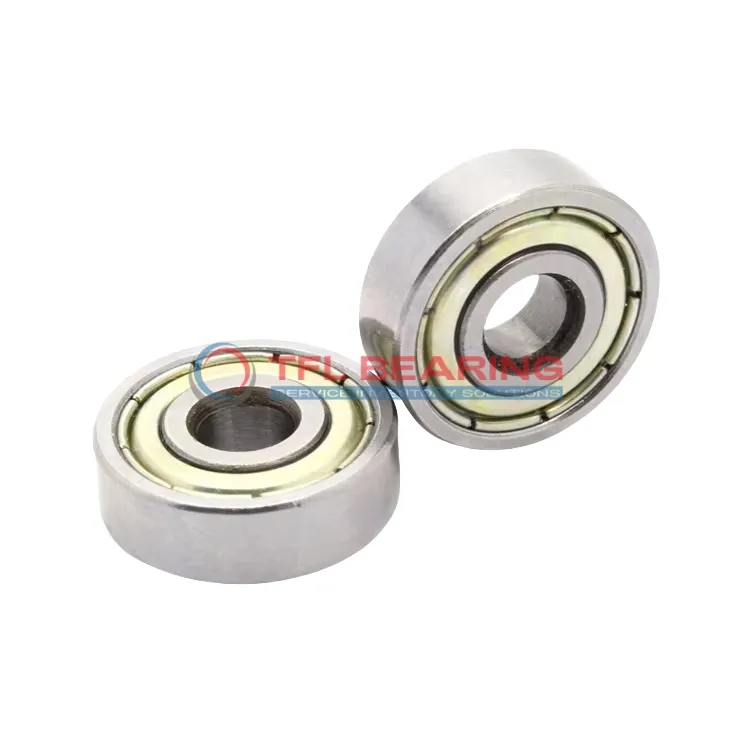

Single Row Deep Groove Ball Bearings 6018-2ZJEM

Single Row Deep Groove Ball Bearings 6018-2ZJEM

The 6018-2ZJEM is a single row deep groove ball bearing with a 90mm bore and 140mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 13084 lbf and operates smoothly at speeds up to 4800 RPM.

Its shielded design keeps dirt out while maintaining easy access for lubrication, and the chrome steel cage adds durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. It’s well-suited for applications like electric motors or pumps where radial loads are common.

Weighing 1163g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, ensuring safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6018-2ZJEM
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 90 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 140 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 24 mm
  • Width Tolerance -0.200mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 13084 lbf
  • Static Radial Load 11173 lbf
  • Max Speed 4800 rpm
  • Weight 1163 g
  • price（$） 39.06
Single Row Deep Groove Ball Bearings 6018-2ZJEM dimension drawing
Download DWG Download PDF

Features

How Does 6018-2ZJEM Bearing Reduce Friction?

6018-2ZJEM Bearing features a single-row deep groove design, optimised for smooth radial load distribution.
The shielded construction helps keep contaminants out while maintaining low friction operation.

Made from chrome steel rings and balls, 6018-2ZJEM Bearing offers reliable performance under dynamic radial loads up to 13084 lbf.
Its ABEC 1 precision ensures consistent operation while reducing energy loss through friction.

The bearing maintains stable performance across a wide temperature range from -30° to 120°C.
This makes 6018-2ZJEM Bearing suitable for various industrial applications requiring consistent performance.

With a maximum speed of 4,800 rpm, it balances efficiency and durability.
The chrome steel cage helps maintain ball alignment for reduced wear over time.

Application

Industrial Uses of 6018-2ZJEM Bearing
6018-2ZJEM Bearing is commonly used in industrial machinery like pumps and electric motors, where its shielded design helps keep contaminants out. The chrome steel construction ensures durability in demanding environments.

What Makes 6018-2ZJEM Bearing a Preferred Choice?
In automotive applications, 6018-2ZJEM Bearing fits well in wheel hubs and transmissions, providing reliable radial load support. Its ABEC 1 tolerance makes it suitable for standard precision needs.

Perfect Fit for Automation: 6018-2ZJEM Bearing
For automated systems, 6018-2ZJEM Bearing works efficiently in conveyor belts and robotic arms. The shielded seals reduce maintenance while ensuring smooth operation.

Medical vs Industrial: Where 6018-2ZJEM Bearing Excels
In medical devices, 6018-2ZJEM Bearing offers quiet performance for equipment like centrifuges. Its temperature range also makes it adaptable to various industrial settings.
