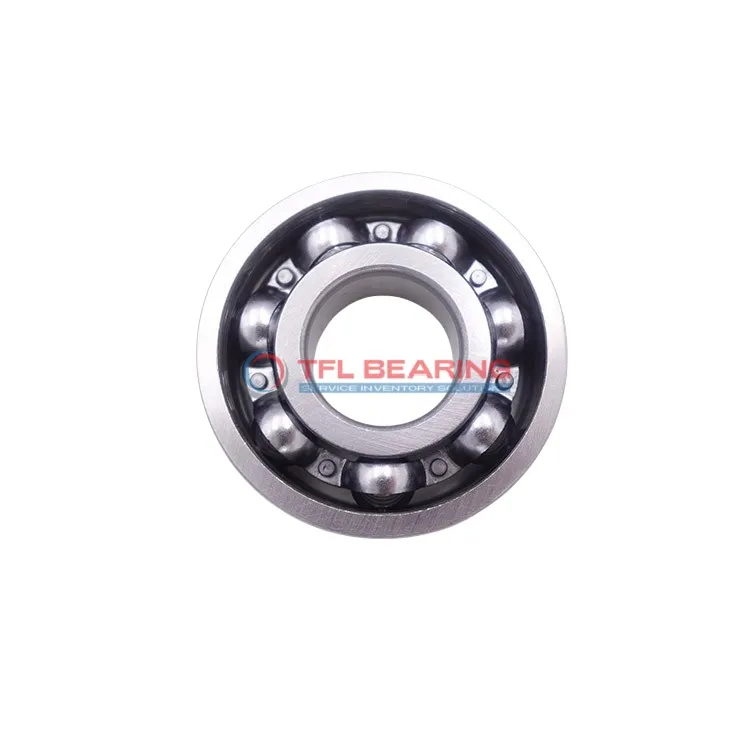

Single Row Deep Groove Ball Bearings 6017 JEM

Single Row Deep Groove Ball Bearings 6017 JEM

The 6017 JEM is a single-row deep groove ball bearing with an 85mm bore and 130mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 11128 lbf and operates smoothly at speeds up to 5000 RPM.

Its open design allows for easy lubrication, while the chrome steel cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing 899g, it offers a balance of strength and lightness. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6017 JEM
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 85 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 130 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 22 mm
  • Width Tolerance -0.200mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 11128 lbf
  • Static Radial Load 9689 lbf
  • Max Speed 5000 rpm
  • Weight 899 g
  • price（$） 27.54
Single Row Deep Groove Ball Bearings 6017 JEM dimension drawing
Download DWG Download PDF

Features

Performance Features of 6017 JEM Bearing

6017 JEM Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 11128 lbf, ensuring reliable performance in various applications.
The chrome steel cage maintains ball alignment, reducing friction and extending service life.
With a maximum speed of 5,000 rpm, it balances durability and efficiency for smooth operation.

Application

Industrial Uses of 6017 JEM Bearing
6017 JEM Bearing is commonly used in industrial machinery like pumps and electric motors, where its radial load capacity ensures reliable performance. The open design allows for easy lubrication, extending service life in demanding conditions.

Where Is 6017 JEM Bearing Used?
In automotive applications, 6017 JEM Bearing fits well in wheel hubs and transmission systems, providing smooth rotation under radial loads. Its chrome steel construction offers durability for long-term use in vehicles.

Built for Heavy-Duty Use: 6017 JEM Bearing
For automation equipment, 6017 JEM Bearing supports robotic arms and conveyor belts, handling consistent radial loads with precision. The ABEC 1 tolerance ensures dependable operation in repetitive tasks.

Automotive vs Industrial: Applications of 6017 JEM Bearing
In household appliances like washing machines, 6017 JEM Bearing reduces noise and vibration during spin cycles. Its metric sizing makes it a versatile choice for both consumer and industrial devices.
