Single Row Deep Groove Ball Bearings 6017/C3W64F

Single Row Deep Groove Ball Bearings 6017/C3W64F

The 6017/C3W64F is a single row deep groove ball bearing with an 85mm bore and 130mm outer diameter, crafted from sturdy chrome steel. It supports radial loads up to 11128 lbf and operates smoothly at speeds up to 5000 RPM.

Its open design and solid oil lubrication ensure low maintenance, while the C3 radial clearance allows for thermal expansion in demanding conditions. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like electric motors or pumps where radial load handling is key.

Weighing 899g, it offers a balance of strength and durability. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6017/C3W64F
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 85 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 130 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 22 mm
  • Width Tolerance -0.200mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 11128 lbf
  • Static Radial Load 9689 lbf
  • Max Speed 5000 rpm
  • Weight 899 g
  • price（$） 42.48

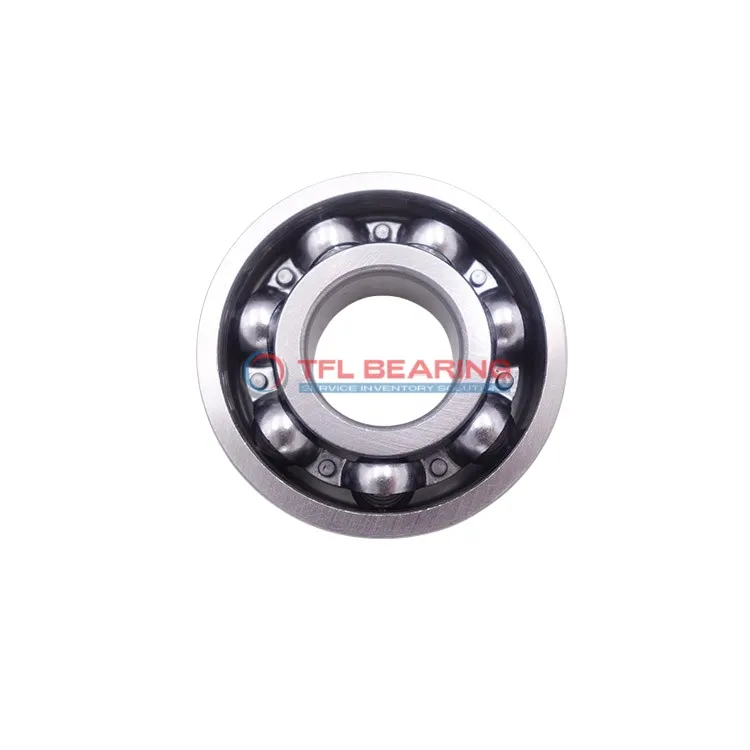

Single Row Deep Groove Ball Bearings 6017/C3W64F dimension drawing
Download DWG Download PDF

Features

Performance Features of 6017/C3W64F Bearing

6017/C3W64F Bearing is built with chrome steel rings and balls, offering strong radial load capacity.
Its dynamic radial load reaches 11,128 lbf, making it suitable for demanding applications.

The solid oil lubrication ensures smooth operation and reduces maintenance needs.
With a maximum speed of 5,000 rpm, it balances performance and durability.

6017/C3W64F Bearing operates in temperatures from -30°C to 120°C, adapting to various environments.
Its C3 radial clearance provides optimal performance under varying load conditions.

Application

Industrial Uses of 6017/C3W64F Bearing
6017/C3W64F Bearing is commonly used in industrial machinery like pumps and electric motors, where its deep groove design handles radial loads efficiently. The solid oil lubrication ensures long service life even in demanding conditions.

Where Is 6017/C3W64F Bearing Used?
You’ll find 6017/C3W64F Bearing in automotive applications such as wheel hubs and alternators, thanks to its reliable performance under high speeds. Its C3 clearance also accommodates thermal expansion in these settings.

Built for Heavy-Duty Use: 6017/C3W64F Bearing
6017/C3W64F Bearing works well in construction equipment like conveyors, where its chrome steel construction resists wear. The open seal design allows for easy inspection and maintenance.

Automotive vs Industrial: Applications of 6017/C3W64F Bearing
In cars, 6017/C3W64F Bearing supports smooth rotation in drivetrains, while in factories, it’s ideal for gearboxes. Its wide temperature range makes it versatile for both environments.
