Single Row Deep Groove Ball Bearings 6015/W64

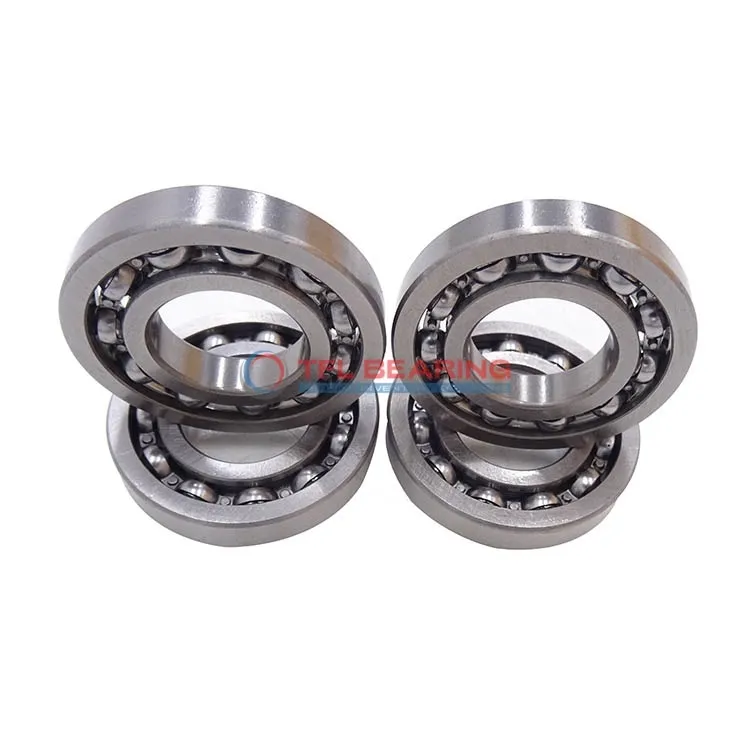

Single Row Deep Groove Ball Bearings 6015/W64

The 6015/W64 is a single-row deep groove ball bearing with a 75mm bore and 115mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 8902 lbf and operates smoothly at speeds up to 5600 RPM.

Its open design and solid oil lubrication ensure low maintenance, while the chrome steel cage enhances durability. The bearing performs reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a cost-effective alternative for replacements. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing 638g, it balances strength and compactness. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6015/W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 75 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 115 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 20 mm
  • Width Tolerance -0.150mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 8902 lbf
  • Static Radial Load 7531 lbf
  • Max Speed 5600 rpm
  • Weight 638 g
  • price（$） 32.958
Single Row Deep Groove Ball Bearings 6015/W64 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6015/W64 Bearing

6015/W64 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 8902 lbf, ensuring reliable performance in various applications.
The solid oil lubrication reduces friction and extends maintenance intervals.
With a maximum speed of 5,600 rpm, it provides a balance of durability and efficiency.

Application

Industrial Uses of 6015/W64 Bearing
This bearing is commonly used in industrial machinery like pumps and electric motors, where its solid oil lubrication ensures long service life. The open design allows for easy inspection and maintenance in dusty environments.

Where Is 6015/W64 Bearing Used?
You’ll often find 6015/W64 Bearing in automotive applications such as alternators and transmission systems, thanks to its reliable radial load handling. Its chrome steel construction also makes it suitable for moderate-speed operations.

Perfect Fit for Automation: 6015/W64 Bearing
In robotic arms and conveyor systems, 6015/W64 Bearing provides smooth movement with minimal friction. The ABEC 1 tolerance ensures consistent performance without needing frequent adjustments.

Light-Duty vs Heavy-Duty: Best Uses for 6015/W64 Bearing
For light-duty tasks like office printers or home appliances, 6015/W64 Bearing offers quiet operation. In heavier applications like agricultural equipment, its robust design handles intermittent loads effectively.

Medical vs Industrial: Where 6015/W64 Bearing Excels
While not typically used in medical devices, 6015/W64 Bearing shines in industrial settings like packaging machines. Its temperature range and solid oil lubrication make it adaptable to various working conditions.
