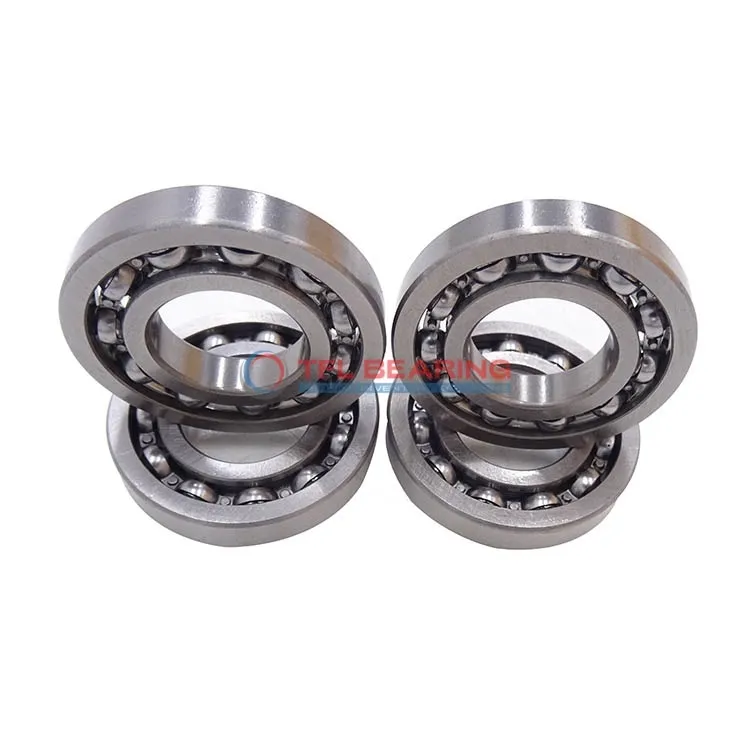

Single Row Deep Groove Ball Bearings 6015 M/C3S0

The 6015 M/C3S0 is a single-row deep groove ball bearing with a 75mm bore and 115mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 9352 lbf and operates smoothly at speeds up to 10,000 RPM.

Its open design and machined metal cage ensure durability and easy maintenance. The bearing performs reliably in temperatures ranging from -30°C to 150°C.

With a C3 radial clearance and ABEC 1 tolerance, it offers a good balance of precision and flexibility. This model is interchangeable with SKF bearings, making it a practical choice for replacements.

Ideal for radial load applications like electric motors or pumps, it weighs 0.74kg and complies with RoHS and REACH standards for safe use.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 6015 M/C3S0
Brand TFL
Interchangeable SKF
System of Measurement Metric
For Load Direction Radial
Construction Single Row
Bearing Type Ball
Seal Type Open
Tolerance Class ABEC 1 | ISO P0
Radial Clearance Trade No C3
Bore Dia 75 mm
Bore Dia Tolerance -0.012mm to 0
Outer Dia 115 mm
Outer Dia Tolerance -0.013mm to 0
Width 20 mm
Width Tolerance -0.15mm to 0
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Machined metal
ROHS Compliant
REACH Compliant
Temperature Range -30°to 150 °C
Dynamic Radial Load 9352 lbf
Static Radial Load 7531 lbf
Max Speed 10000 rpm
Weight 0.74 kg
price（$） 65.826

Single Row Deep Groove Ball Bearings 6015 M/C3S0 dimension drawing

Download DWG Download PDF

Features

Performance Features of 6015 M/C3S0 Bearing

6015 M/C3S0 Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 9352 lbf.
Its machined metal cage ensures precise ball alignment, enhancing durability and smooth operation.

The bearing operates efficiently within a temperature range of -30°C to 150°C, suitable for various environments.
With a maximum speed of 10,000 rpm, it delivers reliable performance in high-speed applications.

6015 M/C3S0 Bearing’s C3 radial clearance allows for thermal expansion, reducing stress during operation.
Its open design simplifies maintenance, making it a practical choice for industrial use.

Application

Industrial Uses of 6015 M/C3S0 Bearing
6015 M/C3S0 Bearing is commonly used in industrial machinery like pumps and electric motors, where its deep groove design handles radial loads efficiently. The open seal type allows for easy lubrication, extending its service life in demanding environments.

What Makes 6015 M/C3S0 Bearing a Preferred Choice?
In automotive applications, 6015 M/C3S0 Bearing fits well in wheel hubs and transmissions, thanks to its C3 clearance for thermal expansion. The chrome steel construction ensures durability even under continuous use.

Perfect Fit for Automation: 6015 M/C3S0 Bearing
For robotic arms and automated systems, 6015 M/C3S0 Bearing offers smooth rotation and low friction. Its machined metal cage provides stability, making it reliable for precision movements.

Light-Duty vs Heavy-Duty: Best Uses for 6015 M/C3S0 Bearing
In light-duty applications like household appliances, 6015 M/C3S0 Bearing operates quietly and efficiently. For heavier tasks, its robust design handles higher loads without compromising performance.
