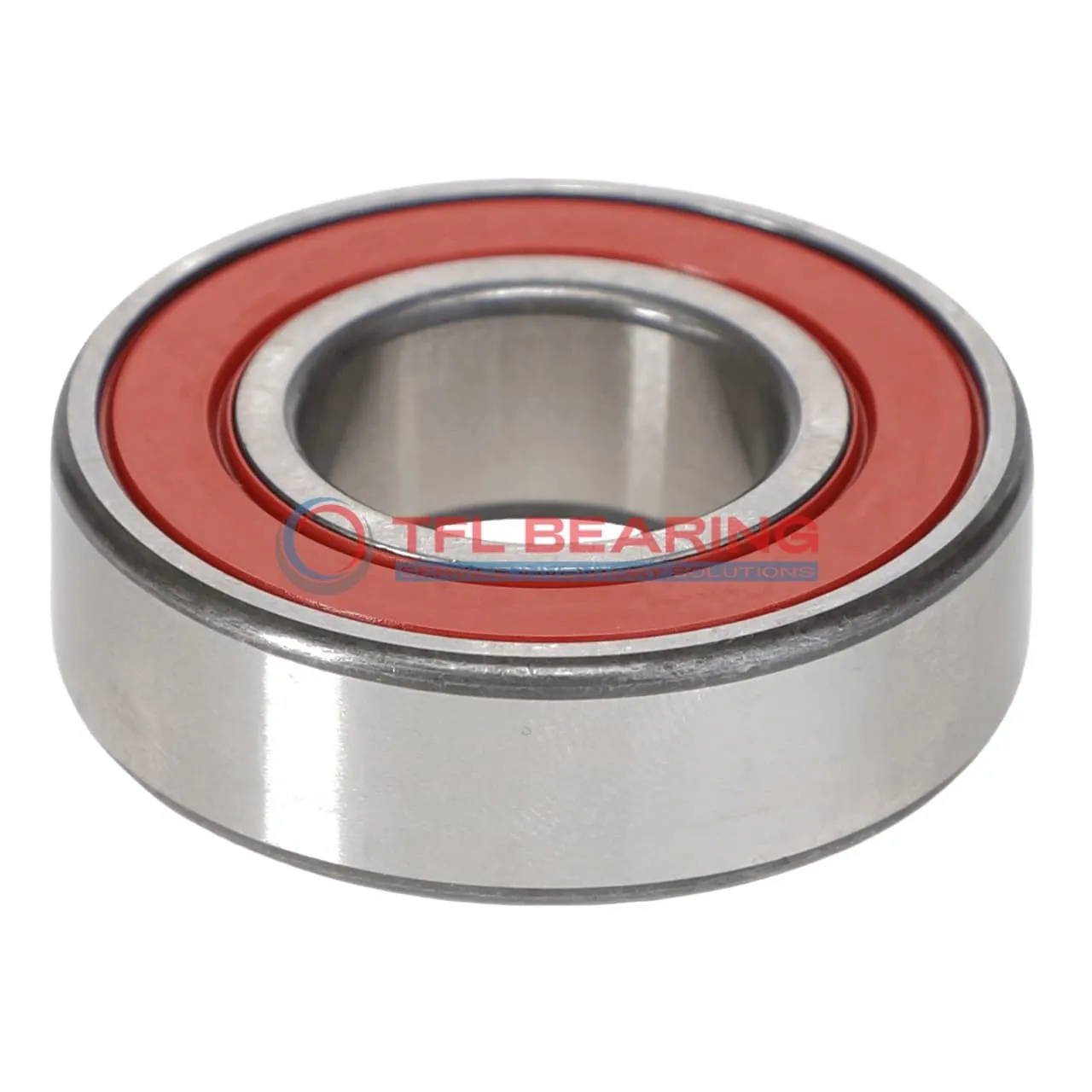

Single Row Deep Groove Ball Bearings 6014-2RS1/MTVM121

Single Row Deep Groove Ball Bearings 6014-2RS1/MTVM121

The 6014-2RS1/MTVM121 is a single-row deep groove ball bearing with a 70mm bore and 110mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 8565 lbf and runs smoothly at speeds up to 6000 RPM.

Sealed on both sides, it keeps dirt out and grease in, making it low-maintenance. The chrome steel cage adds durability, ensuring reliable performance in various conditions.

With a temperature range of -30°C to 120°C, it suits many industrial environments. Its compact 20mm width and 598g weight make it easy to fit into tight spaces.

This bearing is interchangeable with SKF models, offering a cost-effective alternative. Ideal for electric motors, pumps, or gearboxes where radial loads are common. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6014-2RS1/MTVM121
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 70 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 20 mm
  • Width Tolerance -0.150mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 8565 lbf
  • Static Radial Load 6947 lbf
  • Max Speed 6000 rpm
  • Weight 598 g
  • price（$） 24.066
Single Row Deep Groove Ball Bearings 6014-2RS1/MTVM121 dimension drawing
Download DWG Download PDF

Features

How Does 6014-2RS1/MTVM121 Bearing Reduce Friction?

6014-2RS1/MTVM121 Bearing features a sealed design, preventing contaminants from entering and reducing friction.

Its chrome steel construction ensures smooth operation, even under high radial loads of up to 8565 lbf.

The single-row deep groove design enhances efficiency, making it suitable for various applications.

With a maximum speed of 6,000 rpm, it balances performance and durability.

Application

Industrial Uses of 6014-2RS1/MTVM121 Bearing
6014-2RS1/MTVM121 Bearing is commonly used in conveyor systems and electric motors, where its sealed design helps keep out dust and debris.
The chrome steel construction ensures durability even in demanding industrial environments.

What Makes 6014-2RS1/MTVM121 Bearing a Preferred Choice?
In automotive applications, 6014-2RS1/MTVM121 Bearing works well in alternators and water pumps due to its reliable radial load capacity.
Its ABEC 1 tolerance makes it suitable for general machinery where precision is important but not critical.

Designed for Versatility: 6014-2RS1/MTVM121 Bearing
For household appliances like washing machines, 6014-2RS1/MTVM121 Bearing offers smooth operation with minimal maintenance.
The sealed design also makes it a good fit for outdoor equipment exposed to varying weather conditions.

Automotive vs Industrial: Applications of 6014-2RS1/MTVM121 Bearing
In automotive uses, 6014-2RS1/MTVM121 Bearing handles moderate radial loads in components like fans and pulleys.
For industrial settings, it’s often found in gearboxes and small machinery where consistent performance is needed.
