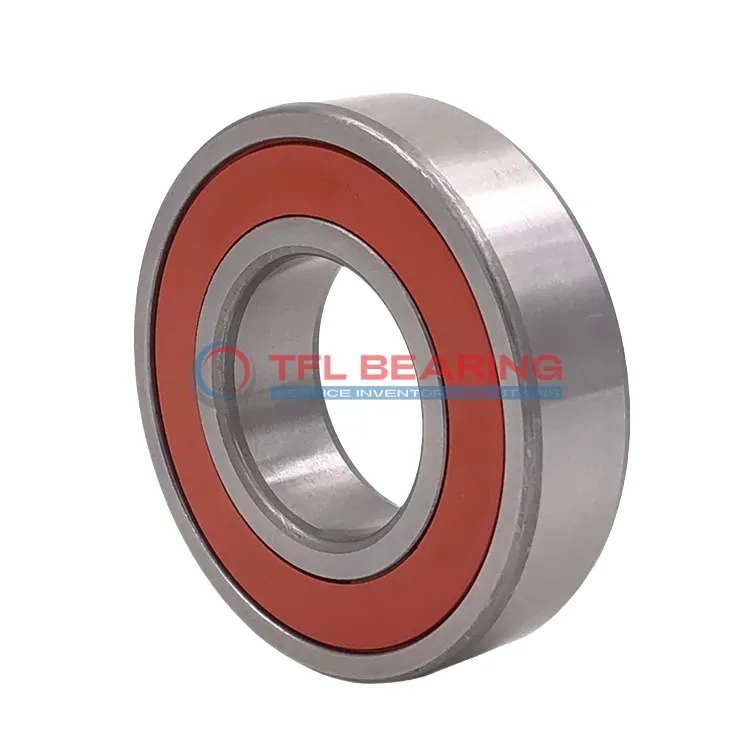

Single Row Deep Groove Ball Bearings 6013-RS1

Single Row Deep Groove Ball Bearings 6013-RS1

The 6013-RS1 is a sealed single-row deep groove ball bearing with a 65mm bore and 100mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 7171 lbf and operates smoothly at speeds up to 4000 RPM.

Its sealed design keeps dirt out and lubrication in, making it low-maintenance for long-term use. The stainless steel cage adds durability, while the P6 tolerance ensures precise performance.

This bearing works well in temperatures from -30°C to 120°C, suitable for various industrial settings. It’s interchangeable with SKF models, offering a reliable replacement option.

Weighing 0.44kg, it’s a robust choice for applications like electric motors or pumps where radial loads are common. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6013-RS1
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 65 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 100 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 18 mm
  • Width Tolerance -0.15mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 7171 lbf
  • Static Radial Load 5620 lbf
  • Max Speed 4000 rpm
  • Weight 0.44 kg
  • price（$） 18.18
Single Row Deep Groove Ball Bearings 6013-RS1 dimension drawing
Download DWG Download PDF

Features

What Makes 6013-RS1 Bearing Suitable for High-Temperature Applications?

6013-RS1 Bearing operates efficiently in temperatures ranging from -30° to 120°C, making it versatile for various environments.
The chrome steel construction ensures durability and resistance to wear, even under high thermal stress.

With a dynamic radial load capacity of 7171 lbf, it handles heavy loads reliably.
The sealed design protects against contaminants, maintaining performance in demanding conditions.

Its stainless steel cage enhances stability and extends the bearing’s service life.
The P6 tolerance class ensures precision, making it ideal for applications requiring tight clearances.

Application

Common Applications of 6013-RS1 Bearing
6013-RS1 Bearing is widely used in industrial machinery, especially in electric motors and pumps where radial load support is essential. Its sealed design helps keep contaminants out, ensuring longer service life in dusty environments.

In automotive applications, 6013-RS1 Bearing fits well in alternators and water pumps, providing smooth rotation under moderate speeds. The chrome steel construction offers good resistance to wear, even in high-temperature conditions.

For home appliances like washing machines, 6013-RS1 Bearing’s compact size and reliable performance make it a popular choice. The stainless steel cage adds durability, reducing maintenance needs over time.

Automation systems often use 6013-RS1 Bearing in conveyor belts and small robotic arms. Its P6 tolerance class ensures precise movement, which is crucial for consistent operation.

In medical devices such as dental drills, 6013-RS1 Bearing’s sealed design prevents lubricant leakage, maintaining hygiene standards. The wide temperature range also allows for sterilisation processes without compromising performance.
