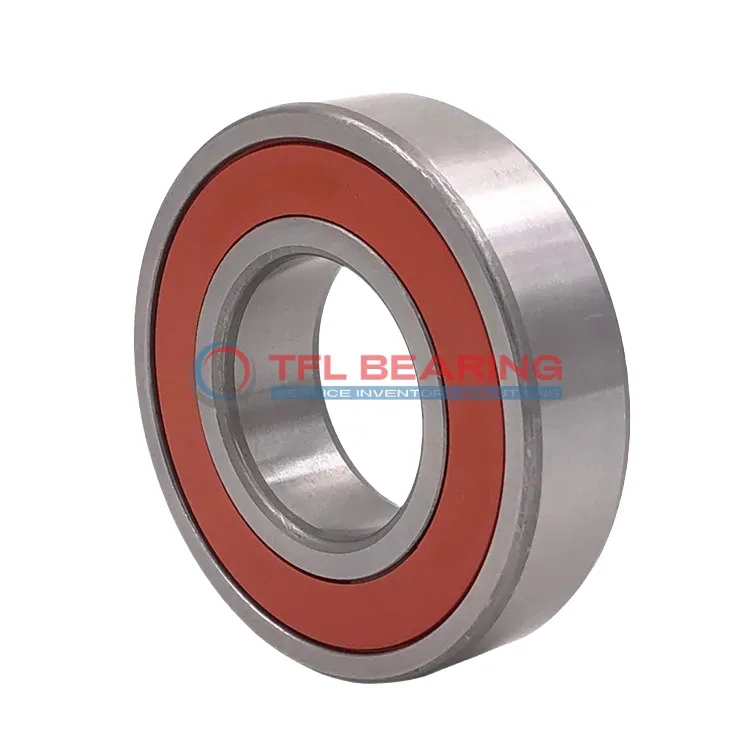

Single Row Deep Groove Ball Bearings 6013-2RS1/W64

Single Row Deep Groove Ball Bearings 6013-2RS1/W64

The 6013-2RS1/W64 is a single-row deep groove ball bearing with a 65mm bore and 100mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 6857 lbf and operates smoothly at speeds reaching 6700 RPM.

Sealed on both sides, it keeps dirt out and solid oil lubrication in, reducing maintenance needs. The chrome steel cage adds durability, making it a reliable choice for long-term use.

This bearing works well in temperatures from -30°C to 120°C, suitable for various environments. It’s interchangeable with SKF models, offering flexibility for replacements.

Ideal for applications like electric motors or pumps where radial loads are common. Weighing 430g, it balances strength and practicality. Compliant with RoHS and REACH standards for safe usage.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6013-2RS1/W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 65 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 100 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 18 mm
  • Width Tolerance -0.150mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 6857 lbf
  • Static Radial Load 5665 lbf
  • Max Speed 6700 rpm
  • Weight 430 g
  • price（$） 28.026
Single Row Deep Groove Ball Bearings 6013-2RS1/W64 dimension drawing
Download DWG Download PDF

Features

Why Choose 6013-2RS1/W64 Bearing for Precision Tasks?

6013-2RS1/W64 Bearing features a sealed design with solid oil lubrication, ensuring smooth operation and minimal maintenance.
Its chrome steel construction provides excellent resistance to wear, making it suitable for radial load applications.

The bearing can handle dynamic radial loads up to 6857 lbf, offering reliable performance in various conditions.
With a maximum speed of 6,700 rpm, it balances efficiency and durability for precision tasks.

6013-2RS1/W64 Bearing operates in temperatures from -30°C to 120°C, adapting to different environments.
Its ABEC 1 tolerance class ensures consistent performance for standard applications.

Application

Common Applications of 6013-2RS1/W64 Bearing
6013-2RS1/W64 Bearing is widely used in industrial machinery, such as pumps and electric motors, where its sealed design helps keep contaminants out. The solid oil lubrication ensures smooth operation even in demanding environments.

In automotive applications, 6013-2RS1/W64 Bearing fits well in wheel hubs and alternators, providing reliable radial load support. Its chrome steel construction offers durability under various driving conditions.

For home appliances like washing machines, 6013-2RS1/W64 Bearing’s sealed and lubricated design reduces maintenance needs. The consistent performance makes it a trusted choice for long-lasting household devices.
