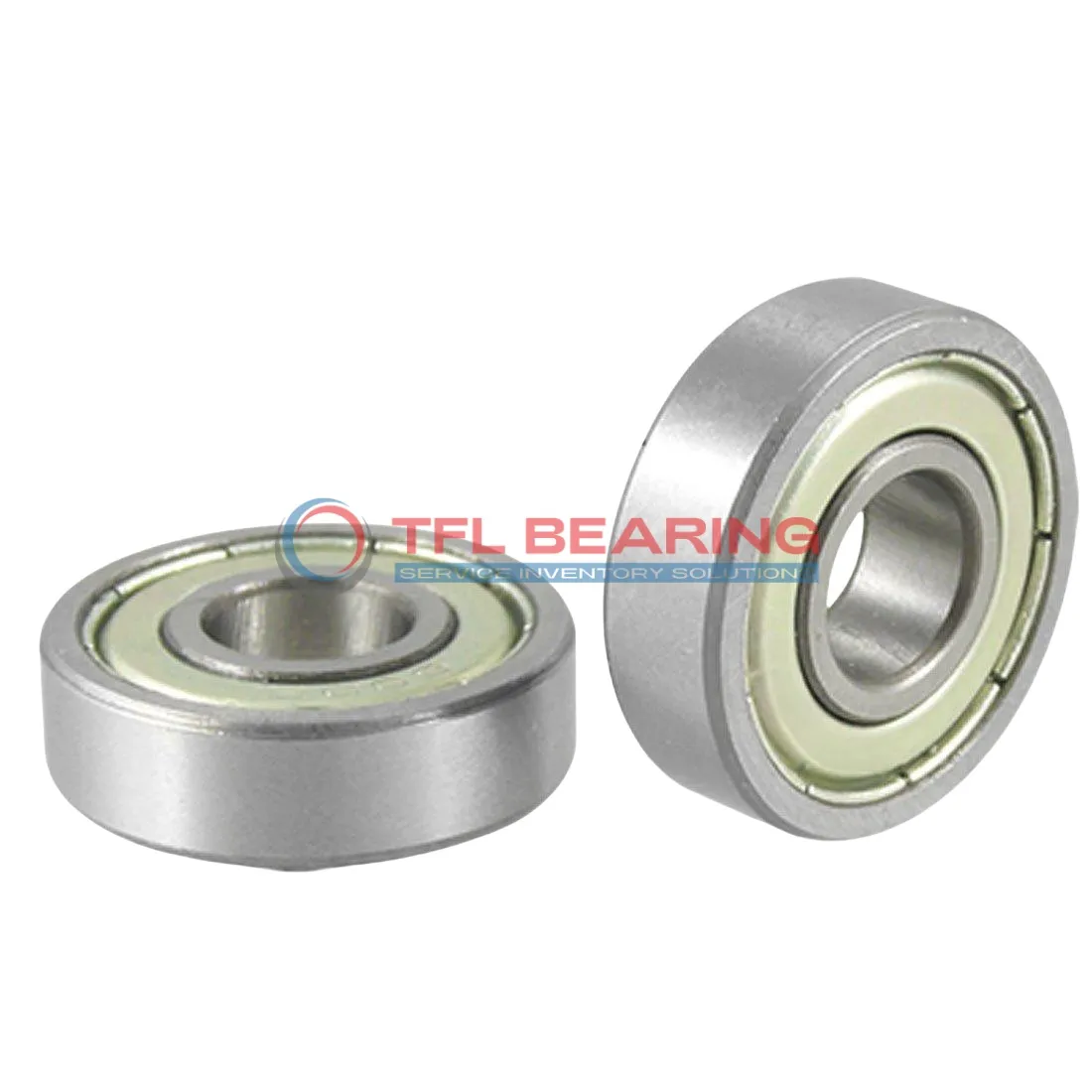

Single Row Deep Groove Ball Bearings 6012-2Z

Single Row Deep Groove Ball Bearings 6012-2Z

The 6012-2Z is a single-row deep groove ball bearing with a 60mm bore and 95mm outer diameter, crafted from sturdy chrome steel for lasting performance. It handles radial loads up to 6902 lbf and runs smoothly at speeds up to 7500 RPM.

Shielded on both sides, this bearing keeps dirt out while retaining grease, making it low-maintenance. The stainless steel cage adds durability, ensuring reliable operation in various conditions.

With a compact width of 18mm, it fits neatly into tight spaces. Ideal for electric motors, pumps, or machinery where radial loads and moderate speeds are common.

Weighing 0.43kg, it’s robust yet manageable. Compliant with RoHS and REACH standards, it’s safe for use in temperatures from -30°C to 120°C. A practical choice for replacements, matching SKF equivalents.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6012-2Z
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 60 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 95 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 18 mm
  • Width Tolerance -0.15mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Lubrication Grease
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 6902 lbf
  • Static Radial Load 5216 lbf
  • Max Speed 7500 rpm
  • Weight 0.43 kg
  • price（$） 17.892
Single Row Deep Groove Ball Bearings 6012-2Z dimension drawing
Download DWG Download PDF

Features

How Does 6012-2Z Bearing Reduce Friction?

6012-2Z Bearing features a single row deep groove design, optimised for smooth radial load handling.
The shielded construction helps keep contaminants out while retaining lubrication for consistent performance.

Chrome steel rings and balls in 6012-2Z Bearing provide durable, low-friction operation.
Its dynamic radial load capacity of 6902 lbf ensures reliable performance in various applications.

The stainless steel cage in 6012-2Z Bearing maintains proper ball alignment, reducing wear.
With a maximum speed of 7,500 rpm, it delivers efficient operation across its temperature range.

6012-2Z Bearing’s grease lubrication and shielded design minimise maintenance needs.
Its P6 tolerance class offers precision fit for demanding industrial uses.

Application

Common Applications of 6012-2Z Bearing
In industrial settings, 6012-2Z Bearing is a go-to for radial load support in machinery like pumps and electric motors. Its shielded design keeps contaminants out, extending service life in dusty environments.

Where Is 6012-2Z Bearing Used?
You’ll often spot 6012-2Z Bearing in automotive applications, such as alternators and wheel hubs, where its grease lubrication ensures smooth rotation. The P6 tolerance class makes it suitable for precision-driven systems.

Built for Heavy-Duty Use: 6012-2Z Bearing
For household appliances like washing machines, 6012-2Z Bearing handles constant radial loads with ease. The chrome steel construction offers durability, while the stainless steel cage resists corrosion.

Automotive vs Industrial: Applications of 6012-2Z Bearing
In automotive gearboxes, 6012-2Z Bearing provides reliable radial support, while in industrial fans, its shielded seals protect against debris. The wide temperature range (-30° to 120°C) suits diverse operating conditions.
