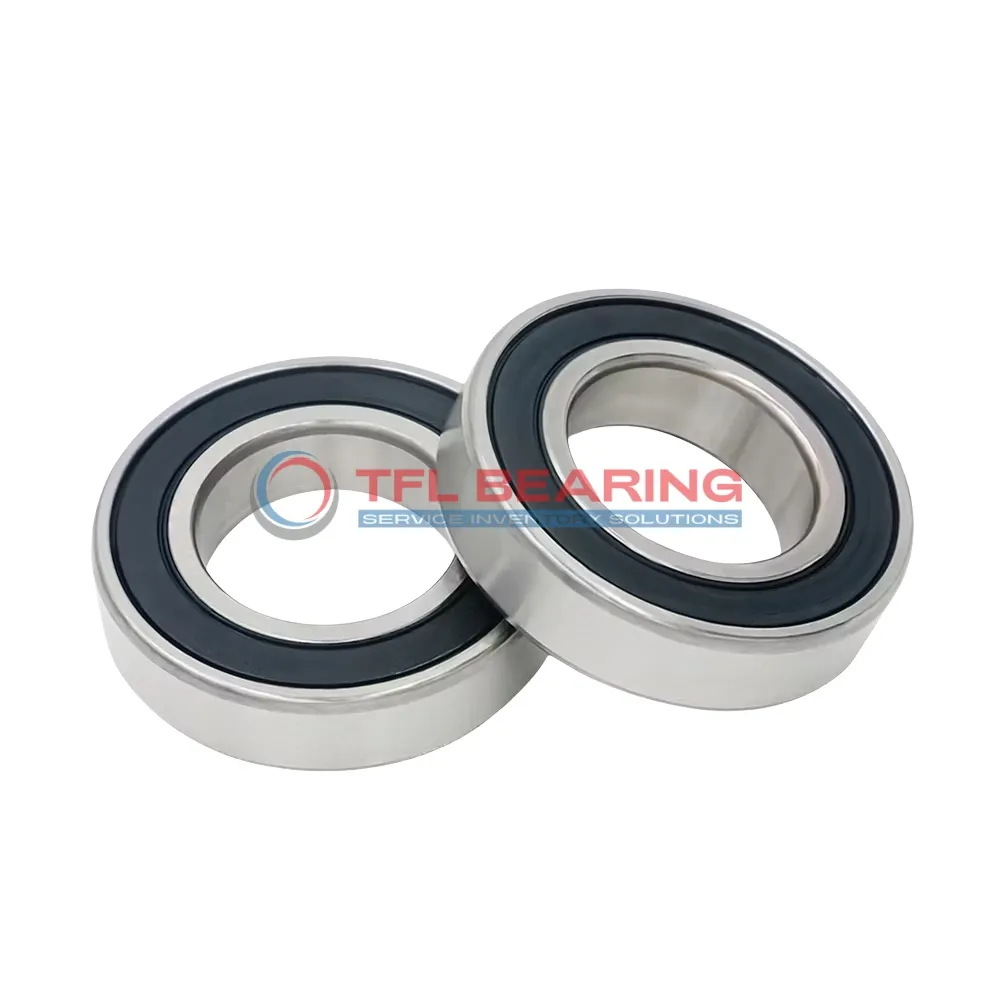

Single Row Deep Groove Ball Bearings 6012-2RZ

The 6012-2RZ is a single row deep groove ball bearing with a 60mm bore and 95mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 6902 lbf and runs smoothly at speeds up to 7500 RPM.

Sealed on both sides, it keeps grease in and dirt out, making it low-maintenance. The stainless steel cage adds durability, while the P6 tolerance ensures precise operation.

This bearing works well in temperatures from -30°C to 120°C, suitable for various industrial uses. It’s interchangeable with SKF models, offering a reliable replacement option.

Weighing 0.43kg, it’s a robust choice for applications like electric motors or pumps where radial loads are common. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 6012-2RZ
Brand TFL
Interchangeable SKF
System of Measurement Metric
For Load Direction Radial
Construction Single Row
Bearing Type Ball
Seal Type Sealed
Tolerance Class P6
Radial Clearance Trade No CN
Bore Dia 60 mm
Bore Dia Tolerance -0.012mm to 0
Outer Dia 95 mm
Outer Dia Tolerance -0.013mm to 0
Width 18 mm
Width Tolerance -0.15mm to 0
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Stainless Steel
Lubrication Grease
REACH Compliant
Temperature Range -30° to 120 °C
Dynamic Radial Load 6902 lbf
Static Radial Load 5216 lbf
Max Speed 7500 rpm
Weight 0.43 kg
price（$） 11.16

Single Row Deep Groove Ball Bearings 6012-2RZ dimension drawing

Download DWG Download PDF

Features

Why Choose 6012-2RZ Bearing for Precision Tasks?

6012-2RZ Bearing features a sealed design, protecting against dust and moisture for consistent performance.
Its chrome steel construction ensures durability and resistance to wear in radial load applications.

The P6 tolerance class of 6012-2RZ Bearing provides high precision, making it suitable for demanding tasks.
With a dynamic radial load capacity of 6902 lbf, it handles heavy loads efficiently.

6012-2RZ Bearing operates smoothly within a temperature range of -30° to 120 °C.
Its stainless steel cage maintains ball alignment, reducing friction and extending service life.

The grease lubrication in 6012-2RZ Bearing ensures quiet operation and minimal maintenance.
It reaches a maximum speed of 7,500 rpm, balancing performance and reliability.

Application

Key Fields for 6012-2RZ Bearing
The 6012-2RZ Bearing is commonly used in industrial fans and blowers, where its sealed design protects against dust and debris. Its chrome steel construction ensures durability in continuous operation environments.

What Makes 6012-2RZ Bearing a Preferred Choice?
In automotive applications, 6012-2RZ Bearing fits well in electric motors and alternators, providing reliable radial load support. The grease lubrication reduces maintenance needs, making it ideal for long-term use.

Built for Heavy-Duty Use: 6012-2RZ Bearing
For automation equipment like conveyor belts, 6012-2RZ Bearing offers smooth performance with its stainless steel cage. The P6 tolerance class ensures precision in high-speed operations.

Medical vs Industrial: Where 6012-2RZ Bearing Excels
While suitable for industrial machinery, 6012-2RZ Bearing also meets the quiet operation needs of medical devices like centrifuges. Its temperature range allows for stable performance in varied conditions.

Practical Applications of 6012-2RZ Bearing
In household appliances such as washing machines, 6012-2RZ Bearing provides quiet and efficient operation. The sealed design helps prevent grease leakage, extending the bearing’s lifespan.
