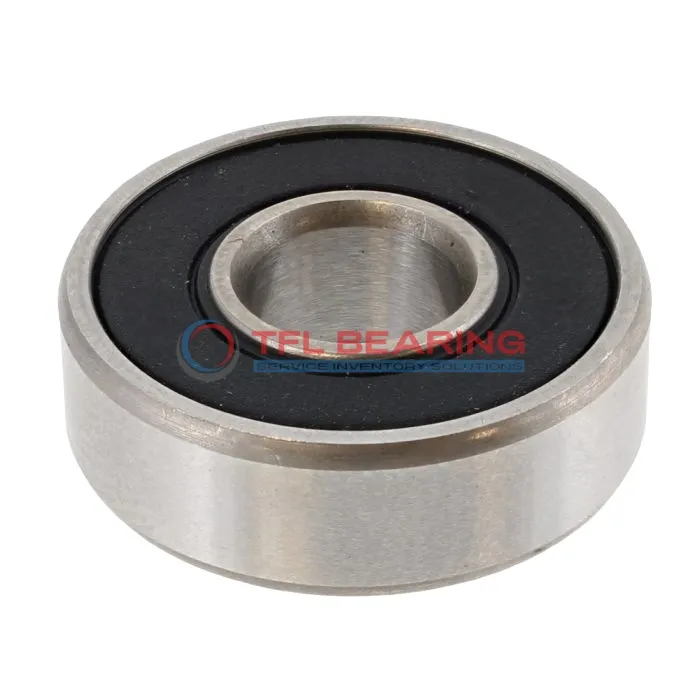

Single Row Deep Groove Ball Bearings 6011-RS1

The 6011-RS1 is a sealed single-row deep groove ball bearing with a 55mm bore and 90mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 6654 lbf and runs smoothly at speeds up to 4500 RPM.

Its sealed design keeps dirt out and grease in, making it low-maintenance, while the stainless steel cage adds durability. The bearing operates well in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a cost-effective alternative for replacements. It’s a great fit for electric motors or pumps where reliable radial load support is needed.

Weighing 0.39kg, it balances strength and lightness. Compliant with RoHS and REACH standards, it’s a safe choice for various industries.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 6011-RS1
Brand TFL
Interchangeable SKF
System of Measurement Metric
For Load Direction Radial
Construction Single Row
Bearing Type Ball
Seal Type Sealed
Tolerance Class P6
Radial Clearance Trade No CN
Bore Dia 55 mm
Bore Dia Tolerance -0.012mm to 0
Outer Dia 90 mm
Outer Dia Tolerance -0.013mm to 0
Width 18 mm
Width Tolerance -0.15mm to 0
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Stainless Steel
REACH Compliant
Temperature Range -30° to 120 °C
Dynamic Radial Load 6654 lbf
Static Radial Load 4766 lbf
Max Speed 4500 rpm
Weight 0.39 kg
price（$） 14.535

Single Row Deep Groove Ball Bearings 6011-RS1 dimension drawing

Download DWG Download PDF

Features

Performance Features of 6011-RS1 Bearing

6011-RS1 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 6654 lbf, ensuring reliable performance in various applications.
The sealed design protects against dust and moisture, extending its service life.
With a maximum speed of 4,500 rpm, it balances durability and efficiency.

Application

Common Applications of 6011-RS1 Bearing
In industrial machinery, 6011-RS1 Bearing is a reliable choice for radial load support, often seen in pumps and electric motors. Its sealed design helps keep contaminants out, extending service life in dusty environments.

Where Is 6011-RS1 Bearing Used?
You’ll find 6011-RS1 Bearing in automotive applications like alternators and water pumps, where its P6 tolerance ensures smooth rotation. The chrome steel construction also handles moderate speeds well.

Built for Versatility: 6011-RS1 Bearing
This bearing works nicely in household appliances like washing machines, thanks to its balanced load capacity. The stainless steel cage adds durability for everyday use.

Automotive vs Industrial: Applications of 6011-RS1 Bearing
In cars, 6011-RS1 Bearing fits well in transmission systems, while factories use it for conveyor rollers. Its 55mm bore suits various shaft sizes across sectors.

Practical Applications of 6011-RS1 Bearing
For small machinery like power tools, 6011-RS1 Bearing offers good radial support without needing frequent maintenance. The temperature range covers most workshop conditions.
