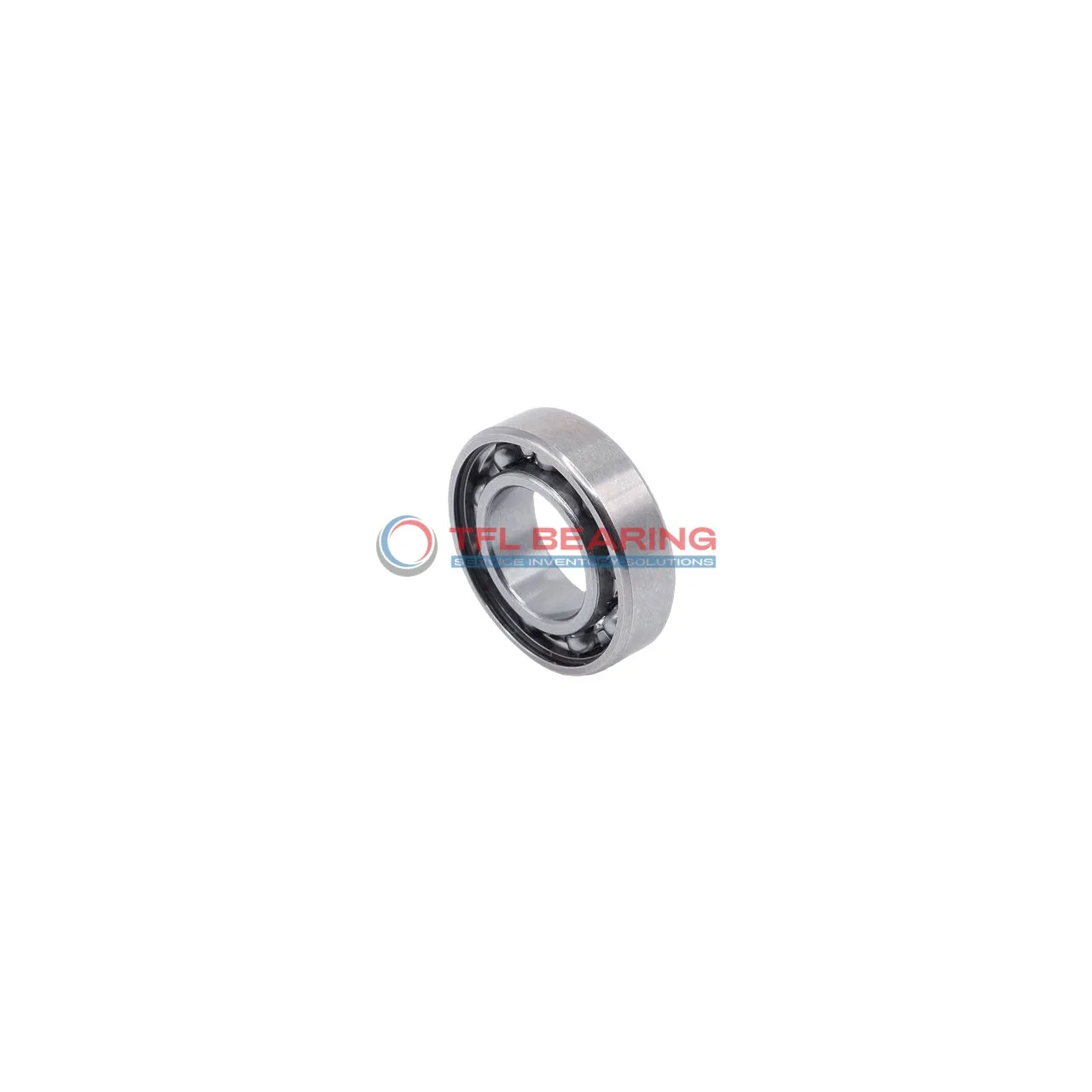

Single Row Deep Groove Ball Bearings 6009 JEM

Single Row Deep Groove Ball Bearings 6009 JEM

The 6009 JEM is a single-row deep groove ball bearing with a 45mm bore and 75mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 4721 lbf and operates smoothly at speeds up to 9200 RPM.

Its open design simplifies maintenance, while the chrome steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for applications like electric motors or pumps where radial loads are prevalent.

Weighing 245g, it balances lightness with strength. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6009 JEM
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 45 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 75 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 16 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 4721 lbf
  • Static Radial Load 3395 lbf
  • Max Speed 9200 rpm
  • Weight 245 g
  • price（$） 4.869
Single Row Deep Groove Ball Bearings 6009 JEM dimension drawing
Download DWG Download PDF

Features

Performance Features of 6009 JEM Bearing

6009 JEM Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 4721 lbf, ensuring reliable performance in various applications.

The single-row deep groove design enhances stability and reduces friction during operation.
With a maximum speed of 9,200 rpm, it delivers a balance of durability and efficiency.

6009 JEM Bearing operates smoothly in temperatures ranging from -30°C to 120°C.
Its open seal type allows for easy maintenance and lubrication adjustments.

Application

Common Applications of 6009 JEM Bearing
The 6009 JEM Bearing is widely used in industrial machinery, such as conveyor systems and electric motors, where its radial load capacity ensures reliable performance. Its open design simplifies maintenance, making it a practical option for various settings.

In automotive applications, 6009 JEM Bearing fits well in components like alternators and water pumps, providing smooth rotation under radial loads. The metric sizing ensures compatibility with many vehicle models across different regions.

For home appliances, 6009 JEM Bearing works efficiently in devices like washing machines and fans, where durability and quiet operation are key. The chrome steel construction offers long-lasting performance even with frequent use.

Automation systems benefit from 6009 JEM Bearing’s precision, particularly in robotic arms and assembly line equipment. Its balanced design helps maintain accuracy in repetitive tasks.
