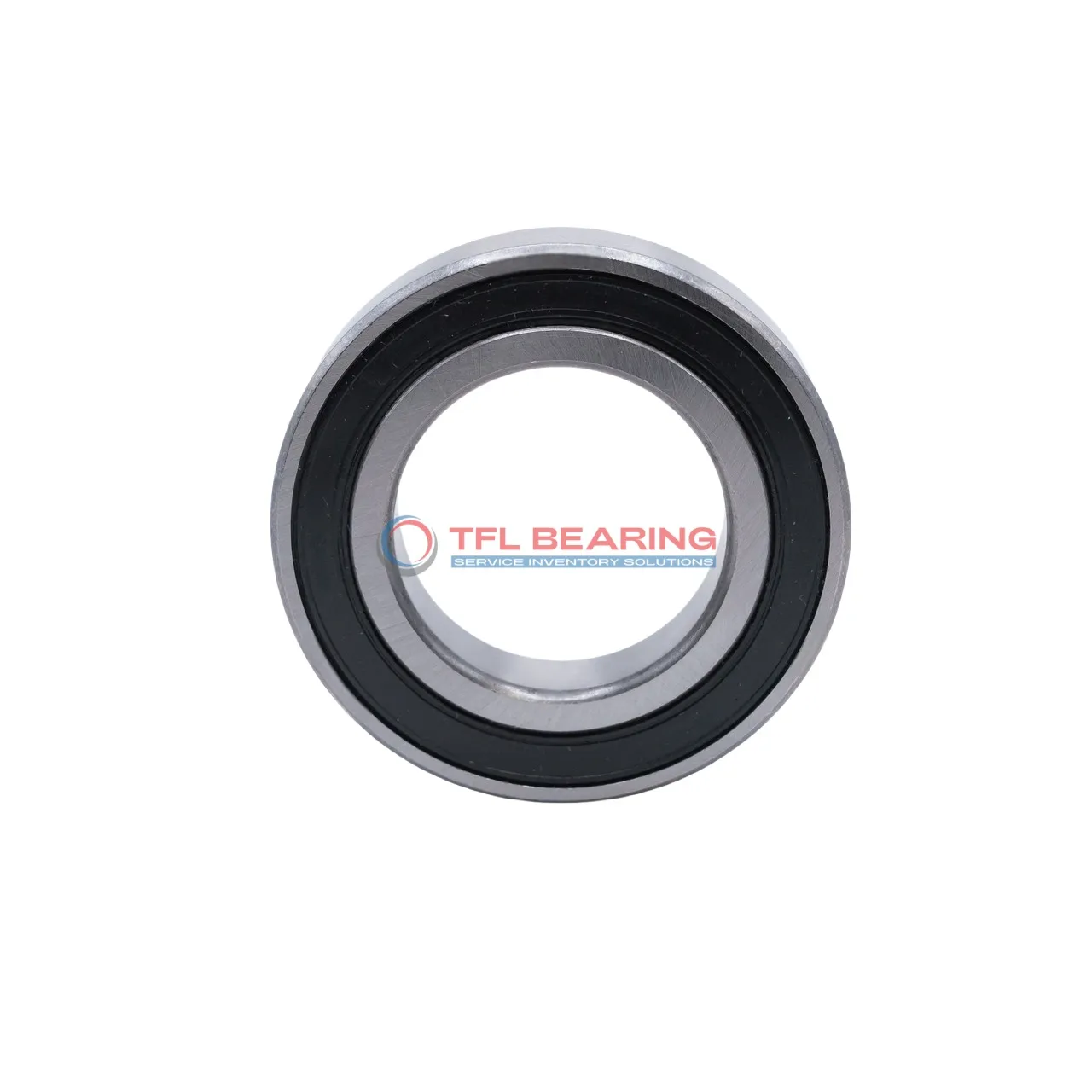

Single Row Deep Groove Ball Bearings 6009-2RS1/C3W64F

Single Row Deep Groove Ball Bearings 6009-2RS1/C3W64F

The 6009-2RS1/C3W64F is a single-row deep groove ball bearing with a 45mm bore and 75mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 4721 lbf and spins smoothly at speeds up to 9200 RPM.

Its sealed design keeps dirt out and solid oil lubrication ensures long-lasting performance without frequent maintenance. The bearing operates reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like electric motors or pumps where radial loads are common.

Weighing just 245g, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6009-2RS1/C3W64F
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 45 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 75 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 16 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 4721 lbf
  • Static Radial Load 3395 lbf
  • Max Speed 9200 rpm
  • Weight 245 g

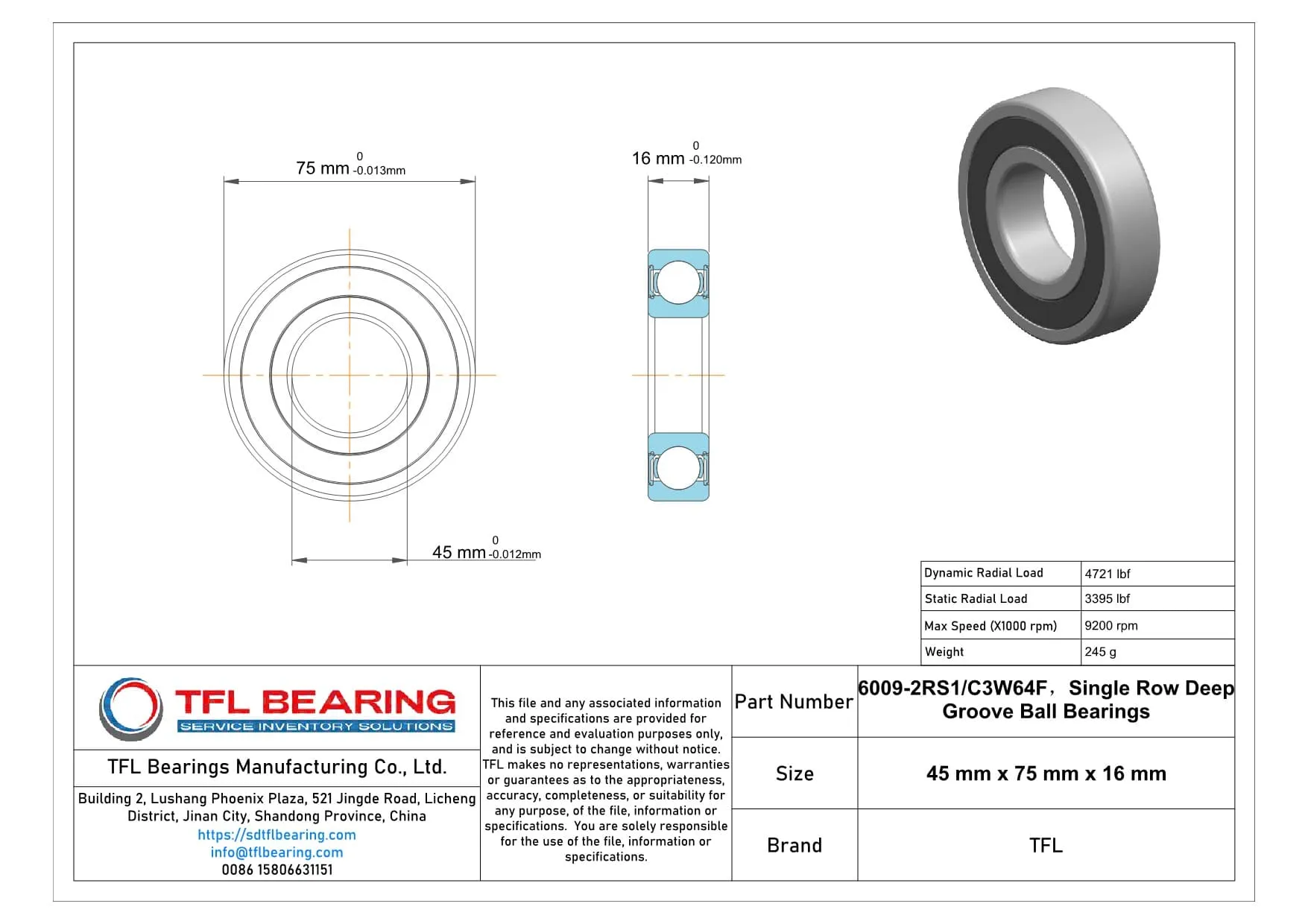

Single Row Deep Groove Ball Bearings 6009-2RS1/C3W64F dimension drawing
Download DWG Download PDF

Features

Performance Features of 6009-2RS1/C3W64F Bearing

6009-2RS1/C3W64F Bearing is designed with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 4721 lbf, ensuring reliable performance in various applications.

The sealed design and solid oil lubrication reduce maintenance needs while protecting against contaminants.
With a maximum speed of 9,200 rpm, it balances efficiency and durability.

6009-2RS1/C3W64F Bearing operates in temperatures from -30°C to 120°C, making it versatile for different environments.
The C3 radial clearance provides optimal performance under varying thermal conditions.

Application

Common Applications of 6009-2RS1/C3W64F Bearing
6009-2RS1/C3W64F Bearing is widely used in industrial machinery, such as pumps and electric motors, where its sealed design helps keep contaminants out. The C3 radial clearance ensures smooth operation even under varying thermal conditions.

In automotive applications, 6009-2RS1/C3W64F Bearing fits well in wheel hubs and alternators, offering reliable performance with its solid oil lubrication. Its chrome steel construction provides durability for long-term use.

For automation systems, 6009-2RS1/C3W64F Bearing works efficiently in robotic arms and conveyor belts, thanks to its balanced load capacity. The sealed design also reduces maintenance needs in dusty environments.

In household appliances like washing machines, 6009-2RS1/C3W64F Bearing ensures quiet and smooth operation. Its temperature range makes it suitable for both high and low-heat conditions.
