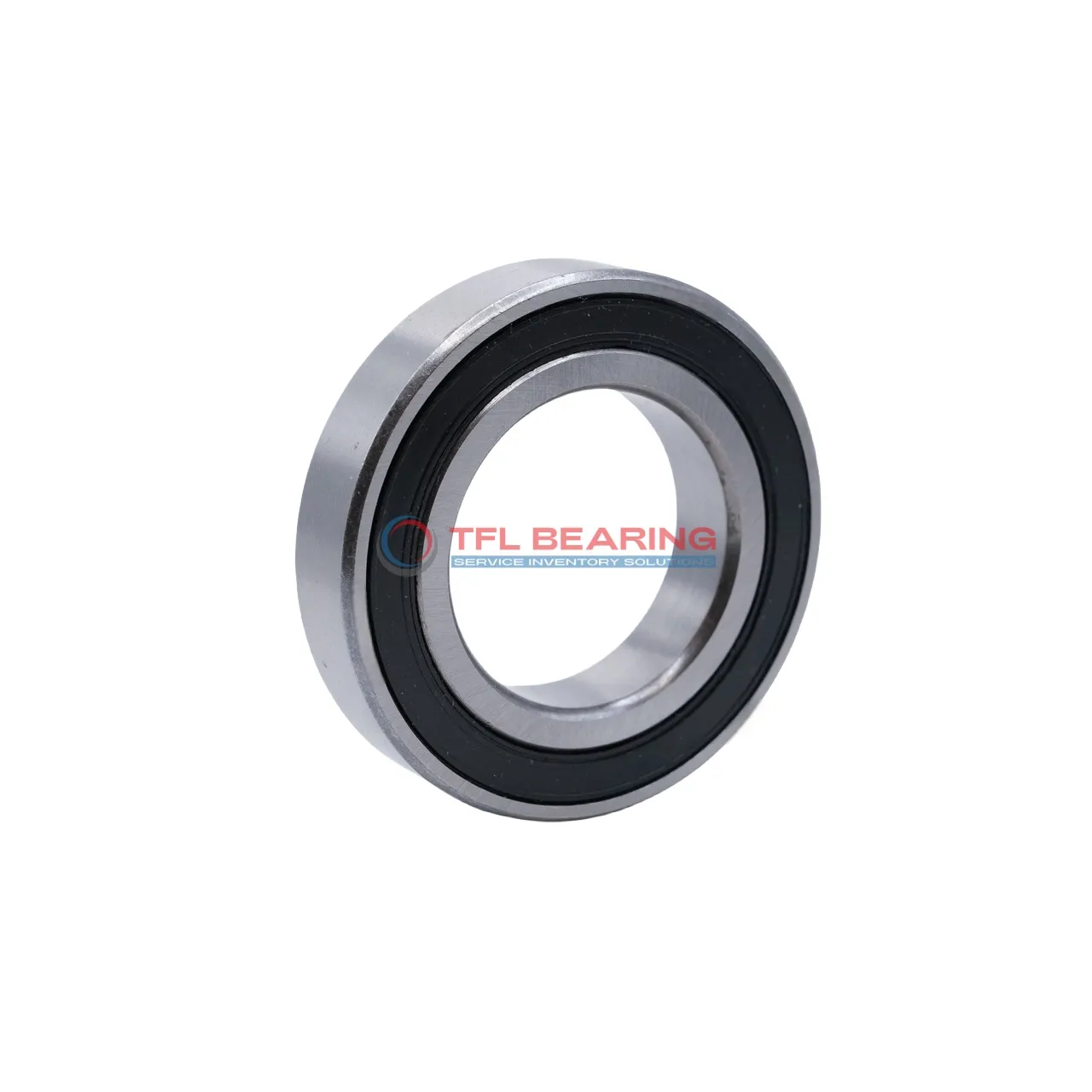

Single Row Deep Groove Ball Bearings 6008-RS1/C3GWP

Single Row Deep Groove Ball Bearings 6008-RS1/C3GWP

The 6008-RS1/C3GWP is a single-row deep groove ball bearing with a 40mm bore and 68mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 3754 lbf and can spin at speeds up to 10,000 RPM.

Its sealed design keeps dirt out and grease in, making it low-maintenance. The C3 radial clearance allows for slight thermal expansion, ideal for varying temperatures.

This bearing works well in temperatures from -30°C to 120°C, suitable for motors or pumps. It’s interchangeable with SKF models, offering a reliable replacement option.

Weighing just 192g, it’s lightweight yet durable for its size. Compliant with RoHS and REACH standards for safe use in various industries.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6008-RS1/C3GWP
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 40 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 68 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 15 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 3754 lbf
  • Static Radial Load 2585 lbf
  • Max Speed 10000 rpm
  • Weight 192 g
Single Row Deep Groove Ball Bearings 6008-RS1/C3GWP dimension drawing
Download DWG Download PDF

Features

How Does 6008-RS1/C3GWP Bearing Reduce Friction?

6008-RS1/C3GWP Bearing features a sealed design, preventing contaminants from entering and reducing friction.
The chrome steel construction ensures durability and smooth operation under radial loads.

With a dynamic radial load capacity of 3754 lbf, it handles demanding applications efficiently.
The C3 radial clearance provides optimal performance in varying temperature conditions.

Its maximum speed of 10,000 rpm makes it suitable for high-speed operations.
The sealed design also minimises maintenance needs, saving time and costs.

Application

Common Applications of 6008-RS1/C3GWP Bearing
6008-RS1/C3GWP Bearing is widely used in industrial machinery, such as electric motors and pumps, where its sealed design helps keep contaminants out. The C3 clearance ensures reliable performance even under varying thermal conditions.

In automotive applications, 6008-RS1/C3GWP Bearing is often found in alternators and water pumps, providing smooth rotation and long service life. Its chrome steel construction offers good resistance to wear in these demanding environments.

For household appliances like washing machines, 6008-RS1/C3GWP Bearing’s sealed feature protects against dust and moisture. The compact size makes it a practical choice for space-constrained designs.

In automation equipment, 6008-RS1/C3GWP Bearing supports precise motion control in conveyor systems. The ABEC 1 tolerance ensures consistent performance for moderate precision needs.
