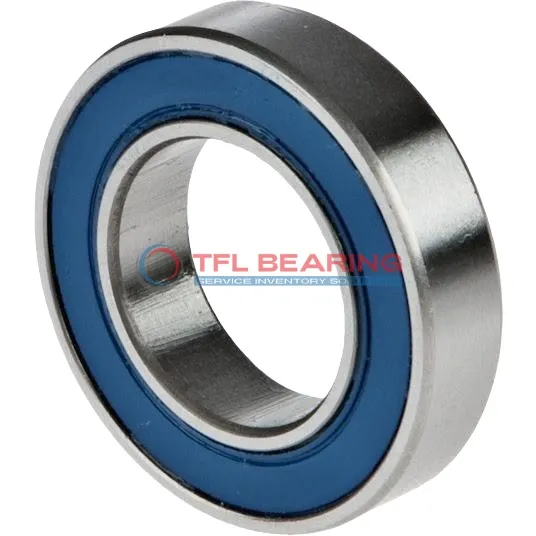

Single Row Deep Groove Ball Bearings 6007-2RS1/GJN

Single Row Deep Groove Ball Bearings 6007-2RS1/GJN

The 6007-2RS1/GJN is a single row deep groove ball bearing with a 35mm bore and 62mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 3574 lbf and operates smoothly at speeds up to 11000 RPM.

Its sealed design keeps dirt out and lubrication in, extending its lifespan. The chrome steel cage adds durability, making it reliable for continuous use.

This bearing works well in temperatures from -30°C to 120°C, suitable for various environments. It’s interchangeable with SKF bearings, offering a cost-effective replacement option.

Weighing just 155g, it’s lightweight yet robust. Ideal for applications like electric motors or small machinery where radial loads are common. Compliant with RoHS and REACH standards for safe usage.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6007-2RS1/GJN
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 35 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 14 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 3574 lbf
  • Static Radial Load 2316 lbf
  • Max Speed 11000 rpm
  • Weight 155 g
  • price（$） 7.02
Single Row Deep Groove Ball Bearings 6007-2RS1/GJN dimension drawing
Download DWG Download PDF

Features

Why Choose 6007-2RS1/GJN Bearing for Precision Tasks?

6007-2RS1/GJN Bearing features a sealed design, protecting against dust and moisture for consistent performance.
Its chrome steel construction ensures durability and resistance to wear in radial load applications.
With a dynamic radial load capacity of 3574 lbf, it handles demanding tasks with ease.
The bearing operates smoothly at speeds up to 11,000 rpm, making it suitable for high-speed machinery.

Application

Common Applications of 6007-2RS1/GJN Bearing
6007-2RS1/GJN Bearing is widely used in industrial machinery, such as electric motors and pumps, where its sealed design helps keep out contaminants. The chrome steel construction ensures durability in demanding environments.

In automotive applications, 6007-2RS1/GJN Bearing is often found in wheel hubs and alternators, providing reliable radial load support. Its metric sizing makes it a versatile choice for various vehicle models.

For household appliances like washing machines, 6007-2RS1/GJN Bearing offers smooth and quiet operation. The sealed design also helps extend its lifespan by preventing dust and moisture ingress.

In automation systems, 6007-2RS1/GJN Bearing is used in conveyor belts and robotic arms, where consistent performance is key. The ABEC 1 tolerance ensures adequate precision for most industrial needs.
