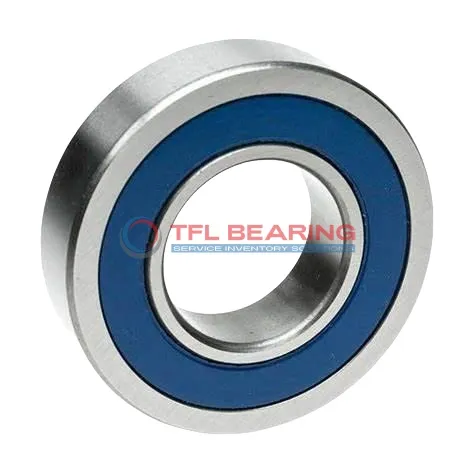

Single Row Deep Groove Ball Bearings 6006-RSJEM

Single Row Deep Groove Ball Bearings 6006-RSJEM

The 6006-RSJEM is a sealed single row deep groove ball bearing with a 30mm bore and 55mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 2967 lbf and spins smoothly at speeds up to 13000 RPM.

Its sealed design keeps dirt out and lubrication in, extending its lifespan. The chrome steel cage adds strength, making it reliable for continuous use.

This bearing works well in temperatures from -30°C to 120°C, suitable for various environments. It’s interchangeable with SKF bearings, offering a cost-effective alternative.

Ideal for applications like electric motors or small machinery where radial loads are common. Weighing just 116g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6006-RSJEM
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 55 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 13 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 2967 lbf
  • Static Radial Load 1855 lbf
  • Max Speed 13000 rpm
  • Weight 116 g
  • price（$） 5.364
Single Row Deep Groove Ball Bearings 6006-RSJEM dimension drawing
Download DWG Download PDF

Features

Performance Features of 6006-RSJEM Bearing

6006-RSJEM Bearing is designed for radial loads, with a dynamic radial load capacity of 2967 lbf.
Its sealed construction keeps contaminants out, ensuring smooth operation in various environments.

The chrome steel rings and balls enhance durability, while the ABEC 1 tolerance class ensures reliable performance.
With a maximum speed of 13,000 rpm, it balances efficiency and longevity.

6006-RSJEM Bearing operates in temperatures from -30°C to 120°C, making it versatile for different applications.
Its compact size (30 mm×55 mm×13 mm) allows for easy integration into various machinery.

The sealed design reduces maintenance needs, saving time and costs.
Its static radial load capacity of 1855 lbf ensures stability under heavy loads.

Application

Common Applications of 6006-RSJEM Bearing
6006-RSJEM Bearing is widely used in industrial equipment like conveyor systems and small electric motors, where its sealed design helps keep out dust and debris. The chrome steel construction ensures durability in continuous operation.

In automotive applications, 6006-RSJEM Bearing fits well in components such as alternators and water pumps, providing smooth radial load support. Its metric sizing makes it a versatile choice for various vehicle models.

For home appliances like washing machines and fans, 6006-RSJEM Bearing offers quiet and reliable performance. The sealed feature is particularly useful in environments where moisture or dirt might be a concern.

Automation systems benefit from 6006-RSJEM Bearing in robotic arms and small machinery, where precision and low maintenance are key. The ABEC 1 tolerance ensures consistent performance without unnecessary complexity.
