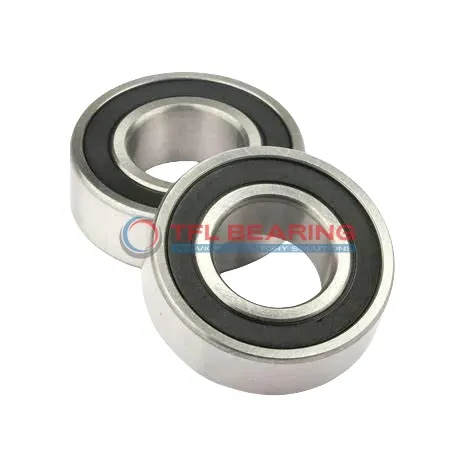

Single Row Deep Groove Ball Bearings 6006-2RS1/C3VT901

The 6006-2RS1/C3VT901 is a single-row deep groove ball bearing with a 30mm bore and 55mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 2967 lbf and operates smoothly at speeds up to 13,000 RPM.

Its sealed design keeps dirt out and lubrication in, making it low-maintenance. The C3 radial clearance ensures reliable performance under varying temperatures, from -30°C to 120°C.

This bearing is interchangeable with SKF models, offering a practical replacement option. Ideal for electric motors, pumps, or small machinery where consistent radial load support is needed.

Weighing just 116g, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 6006-2RS1/C3VT901
Brand TFL
Interchangeable SKF
System of Measurement Metric
For Load Direction Radial
Construction Single Row
Bearing Type Ball
Seal Type Sealed
Tolerance Class ABEC 1 | ISO P0
Radial Clearance Trade No C3
Bore Dia 30 mm
Bore Dia Tolerance -0.01mm to 0
Outer Dia 55 mm
Outer Dia Tolerance -0.013mm to 0
Width 13 mm
Width Tolerance -0.120mm to 0
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Chrome Steel
ROHS Compliant
REACH Compliant
Temperature Range -30°to 120 °C
Dynamic Radial Load 2967 lbf
Static Radial Load 1855 lbf
Max Speed 13000 rpm
Weight 116 g

Single Row Deep Groove Ball Bearings 6006-2RS1/C3VT901 dimension drawing

Download DWG Download PDF

Features

How Does 6006-2RS1/C3VT901 Bearing Reduce Friction?

6006-2RS1/C3VT901 Bearing features a sealed design, preventing contaminants from entering and reducing friction.
Its chrome steel construction ensures smooth operation, even under high radial loads of up to 2967 lbf.
The single-row deep groove design enhances load distribution, minimising wear over time.
With a maximum speed of 13,000 rpm, it offers reliable performance in various applications.

Application

Common Applications of 6006-2RS1/C3VT901 Bearing
6006-2RS1/C3VT901 Bearing is widely used in industrial machinery, such as conveyor systems and electric motors, where its sealed design helps keep out dust and debris. The C3 radial clearance ensures smooth operation even under varying thermal conditions.

In automotive applications, 6006-2RS1/C3VT901 Bearing fits well in components like alternators and water pumps, thanks to its reliable radial load capacity. Its chrome steel construction offers durability in both high-speed and high-temperature environments.

For home appliances like washing machines and fans, 6006-2RS1/C3VT901 Bearing provides quiet and efficient performance. The sealed design reduces maintenance needs, making it a convenient choice for everyday use.

In automation equipment, 6006-2RS1/C3VT901 Bearing supports precise movements in robotic arms and CNC machines. Its consistent performance and durability make it suitable for repetitive tasks in manufacturing settings.
