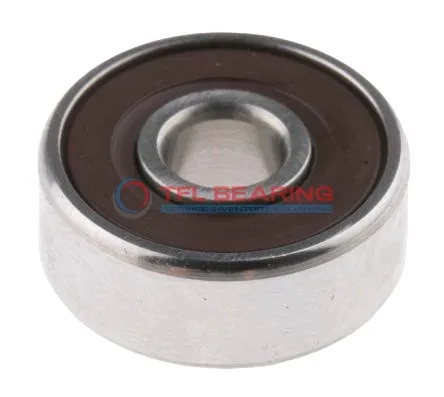

Single Row Deep Groove Ball Bearings 6005-2RSH/LHT21

Single Row Deep Groove Ball Bearings 6005-2RSH/LHT21

The 6005-2RSH/LHT21 is a compact single-row deep groove ball bearing, measuring 25mm by 47mm by 12mm. Made from chrome steel, it’s built to handle radial loads up to 2271 lbf and speeds of 15000 RPM.

Its sealed design keeps dirt out and grease in, making it low-maintenance. The bearing operates smoothly in temperatures from -30°C to 120°C, suitable for various environments.

This model is interchangeable with SKF bearings, offering a cost-effective alternative. Ideal for electric motors, pumps, or small machinery where reliable radial load support is needed.

Weighing just 80g, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6005-2RSH/LHT21
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 47 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 12 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 2271 lbf
  • Static Radial Load 1315 lbf
  • Max Speed 15000 rpm
  • Weight 80 g
  • price（$） 7.992
Single Row Deep Groove Ball Bearings 6005-2RSH/LHT21 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6005-2RSH/LHT21 Bearing

6005-2RSH/LHT21 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 2271 lbf, ensuring steady performance in various applications.

The sealed design of 6005-2RSH/LHT21 Bearing protects against dust and moisture, enhancing durability.
With a maximum speed of 15,000 rpm, it delivers both reliability and efficiency.

6005-2RSH/LHT21 Bearing operates smoothly in temperatures ranging from -30°C to 120°C.
Its chrome steel cage ensures proper ball alignment, reducing wear over time.

The compact size of 6005-2RSH/LHT21 Bearing makes it suitable for space-constrained applications.
Its ABEC 1 tolerance class ensures consistent performance for general-purpose use.

Application

Common Applications of 6005-2RSH/LHT21 Bearing
6005-2RSH/LHT21 Bearing is widely used in industrial equipment like conveyor systems and electric motors, where its sealed design helps keep out dust and debris. The chrome steel construction ensures durability in demanding environments.

In automotive applications, 6005-2RSH/LHT21 Bearing fits well in components such as alternators and water pumps, providing smooth rotation under radial loads. Its metric sizing makes it a versatile choice for various vehicle models.

For home appliances, 6005-2RSH/LHT21 Bearing is often found in washing machines and fans, where its reliable performance and low maintenance are appreciated. The sealed design also helps extend its lifespan in everyday use.

In automation systems, 6005-2RSH/LHT21 Bearing supports robotic arms and small machinery, offering precise movement and stability. Its compact size and robust build make it suitable for tight spaces.
