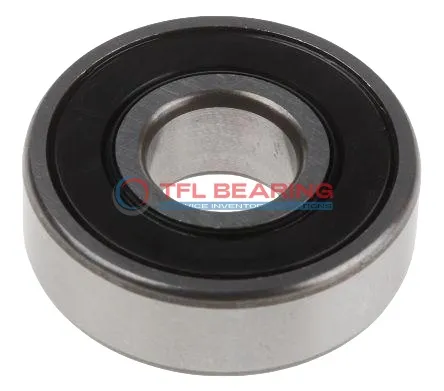

Single Row Deep Groove Ball Bearings 6005-2RSH/C3

Single Row Deep Groove Ball Bearings 6005-2RSH/C3

The 6005-2RSH/C3 is a sealed single-row deep groove ball bearing with a 25mm bore and 47mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 2271 lbf and spins smoothly at speeds up to 15,000 RPM.

Its sealed design keeps dirt out and grease in, making it low-maintenance, while the C3 radial clearance allows for thermal expansion. The bearing operates well in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a cost-effective alternative. Ideal for electric motors, pumps, or small machinery where reliability is key.

Weighing just 80g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6005-2RSH/C3
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 47 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 12 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 2271 lbf
  • Static Radial Load 1315 lbf
  • Max Speed 15000 rpm
  • Weight 80 g
  • price（$） 5.409
Single Row Deep Groove Ball Bearings 6005-2RSH/C3 dimension drawing
Download DWG Download PDF

Features

How Does 6005-2RSH/C3 Bearing Reduce Friction?

6005-2RSH/C3 Bearing features a deep groove design, optimised for smooth radial load distribution.
Its sealed construction keeps contaminants out, ensuring consistent performance over time.
The chrome steel components provide excellent durability and resistance to wear.
With a maximum speed of 15,000 rpm, it delivers reliable operation in various applications.

Application

Industrial Uses of 6005-2RSH/C3 Bearing
6005-2RSH/C3 Bearing is commonly used in conveyor systems and electric motors, where its sealed design helps keep out dust and debris. The C3 clearance ensures smooth operation even under varying thermal conditions.

Where Is 6005-2RSH/C3 Bearing Used?
In automotive applications, 6005-2RSH/C3 Bearing fits well in alternators and water pumps, providing reliable radial load support. Its chrome steel construction offers good resistance to wear in these high-use scenarios.

Perfect Fit for Automation: 6005-2RSH/C3 Bearing
6005-2RSH/C3 Bearing works efficiently in robotic arms and automated assembly lines, where precision and durability are key. The sealed design also reduces maintenance needs in dusty environments.

Light-Duty vs Heavy-Duty: Best Uses for 6005-2RSH/C3 Bearing
For light-duty tasks like small fans or printers, 6005-2RSH/C3 Bearing ensures quiet and smooth operation. In heavier applications like industrial gearboxes, it maintains performance under radial loads.

Medical vs Industrial: Where 6005-2RSH/C3 Bearing Excels
6005-2RSH/C3 Bearing is suitable for medical devices like lab equipment, where cleanliness and reliability matter. In industrial settings, it handles radial loads in machinery like pumps and compressors.
