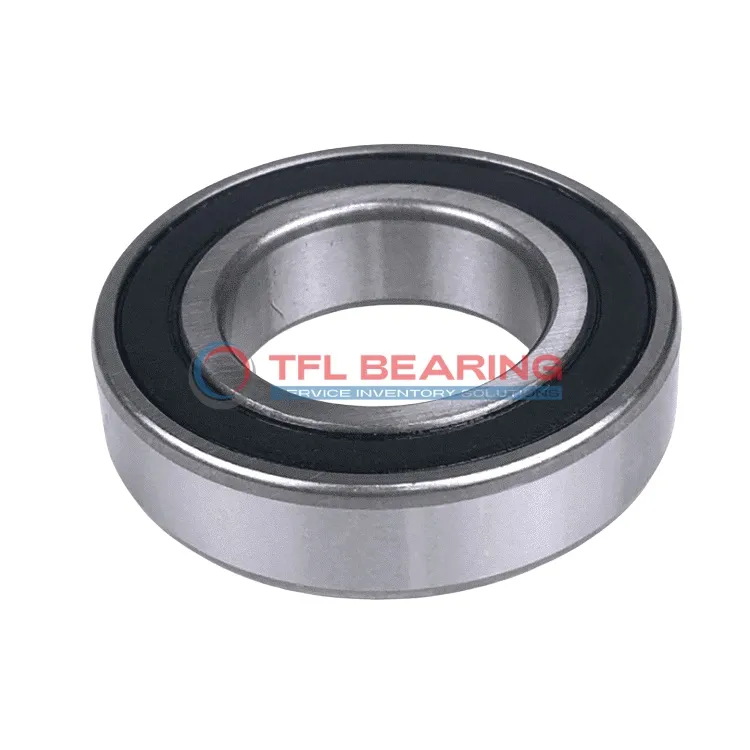

Single Row Deep Groove Ball Bearings 6004-2RSH/C3W64F

Single Row Deep Groove Ball Bearings 6004-2RSH/C3W64F

The 6004-2RSH/C3W64F is a single row deep groove ball bearing with a 20mm bore and 42mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 2113 lbf and can spin at speeds up to 17000 RPM, making it a versatile choice.

Sealed on both sides, this bearing keeps dirt out and grease in, ensuring smooth operation. Its solid oil lubrication reduces maintenance needs, while the C3 radial clearance allows for slight misalignment.

With a compact width of 12mm and weighing just 69g, it’s easy to fit into tight spaces. Ideal for electric motors, pumps, or small machinery where reliability is key.

Compliant with RoHS and REACH standards, it operates smoothly in temperatures from -30°C to 120°C. A practical option for everyday industrial use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6004-2RSH/C3W64F
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 20 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 42 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 12 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 2113 lbf
  • Static Radial Load 1135 lbf
  • Max Speed 17000 rpm
  • Weight 69 g
  • price（$） 8.604
Single Row Deep Groove Ball Bearings 6004-2RSH/C3W64F dimension drawing
Download DWG Download PDF

Features

Performance Features of 6004-2RSH/C3W64F Bearing

6004-2RSH/C3W64F Bearing is designed for radial loads, with a dynamic radial load capacity of 2113 lbf.
Its sealed construction keeps out contaminants, ensuring smooth operation in various environments.
The chrome steel rings and balls provide durability, while the solid oil lubrication reduces maintenance needs.
With a maximum speed of 17,000 rpm, it offers reliable performance for high-speed applications.

Application

Industrial Uses of 6004-2RSH/C3W64F Bearing
6004-2RSH/C3W64F Bearing is commonly used in conveyor systems and small electric motors, where its sealed design keeps out dust and debris. The solid oil lubrication ensures long service life even in continuous operation.

What Makes 6004-2RSH/C3W64F Bearing a Preferred Choice?
In automotive applications like alternators and water pumps, 6004-2RSH/C3W64F Bearing offers reliable performance with its chrome steel construction. Its C3 clearance allows for slight misalignment, making it adaptable to various mounting conditions.

Perfect Fit for Automation: 6004-2RSH/C3W64F Bearing
6004-2RSH/C3W64F Bearing works well in robotic arms and 3D printers, where smooth rotation is essential. The sealed design also helps maintain performance in environments with minimal maintenance access.

Medical vs Industrial: Where 6004-2RSH/C3W64F Bearing Excels
While suitable for industrial gearboxes, 6004-2RSH/C3W64F Bearing also meets the quiet operation needs of medical devices like dental drills. Its temperature range ensures stability in both sterile and high-use environments.

Where to Use 6004-2RSH/C3W64F Bearing
In household appliances like washing machines, 6004-2RSH/C3W64F Bearing provides quiet and efficient operation. The sealed design prevents detergent ingress, extending the bearing’s lifespan in damp conditions.
