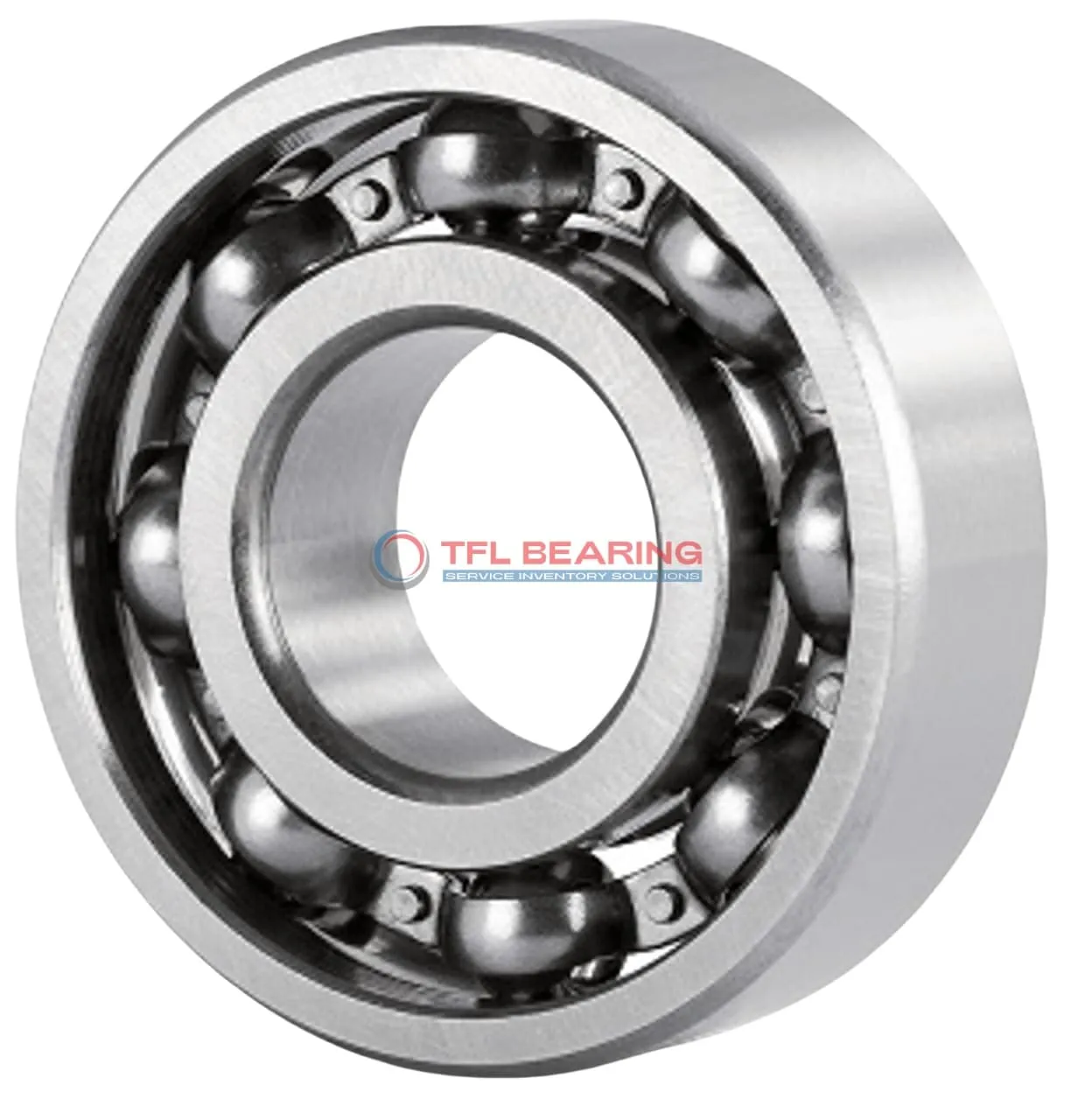

Single Row Deep Groove Ball Bearings 6003 TN9/C4

Single Row Deep Groove Ball Bearings 6003 TN9/C4

The 6003 TN9/C4 is a single-row deep groove ball bearing with a 17mm bore and 35mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 1349 lbf and spins smoothly at speeds reaching 21000 RPM.

Its open design and nylon cage ensure durability while allowing easy maintenance. The bearing operates efficiently in temperatures ranging from -30°C to 120°C.

This model is compatible with SKF bearings, making it a practical choice for replacements. Suitable for applications like electric motors or small machinery where radial loads are common.

Weighing just 39g, it’s lightweight yet robust. Compliant with RoHS and REACH standards for safe and reliable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6003 TN9/C4
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C4
  • Bore Dia 17 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 35 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 10 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 1349 lbf
  • Static Radial Load 731 lbf
  • Max Speed 21000 rpm
  • Weight 39 g
Single Row Deep Groove Ball Bearings 6003 TN9/C4 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6003 TN9/C4 Bearing

6003 TN9/C4 Bearing is designed for radial loads, with a dynamic radial load capacity of 1349 lbf for reliable performance.
Its chrome steel rings and balls provide durability, while the nylon cage reduces friction and noise.
The bearing operates smoothly in temperatures ranging from -30° to 120°C, making it versatile for various environments.
With a maximum speed of 21,000 rpm, it ensures efficient operation in high-speed applications.

Application

Common Applications of 6003 TN9/C4 Bearing
6003 TN9/C4 Bearing is widely used in industrial machinery, such as electric motors and pumps, where its single-row design handles radial loads efficiently. The open seal type allows for easy lubrication and maintenance in dusty environments.

In automotive applications, 6003 TN9/C4 Bearing fits well in components like alternators and water pumps, thanks to its durable chrome steel construction. Its C4 radial clearance ensures smooth operation even under varying temperatures.

For consumer electronics, 6003 TN9/C4 Bearing is a reliable choice in devices like small fans and printers, where quiet operation is essential. The nylon cage reduces friction, making it suitable for high-speed rotations.

Where Is 6003 TN9/C4 Bearing Used?
You’ll often find 6003 TN9/C4 Bearing in conveyor systems, where its ability to handle moderate radial loads keeps operations running smoothly. The metric sizing makes it compatible with a variety of European and Asian equipment.

In robotics, 6003 TN9/C4 Bearing supports joints and moving parts, ensuring precise movement with minimal noise. Its temperature range of -30° to 120°C makes it adaptable to different working conditions.

Built for Versatility: 6003 TN9/C4 Bearing
6003 TN9/C4 Bearing works well in household appliances like washing machines, where its static radial load capacity ensures long-term reliability. The chrome steel rings provide excellent resistance to wear.

For light industrial tools, 6003 TN9/C4 Bearing offers a balance of performance and affordability. Its ABEC 1 tolerance class is sufficient for most general-purpose applications.

Automotive vs Industrial: Applications of 6003 TN9/C4 Bearing
In cars, 6003 TN9/C4 Bearing is commonly used in auxiliary units like air conditioning compressors, where its radial load capacity is key. The open design simplifies inspection and re-greasing.

In factory settings, 6003 TN9/C4 Bearing is ideal for gearboxes and small machinery, where its nylon cage reduces vibration. The C4 clearance accommodates thermal expansion during continuous use.
