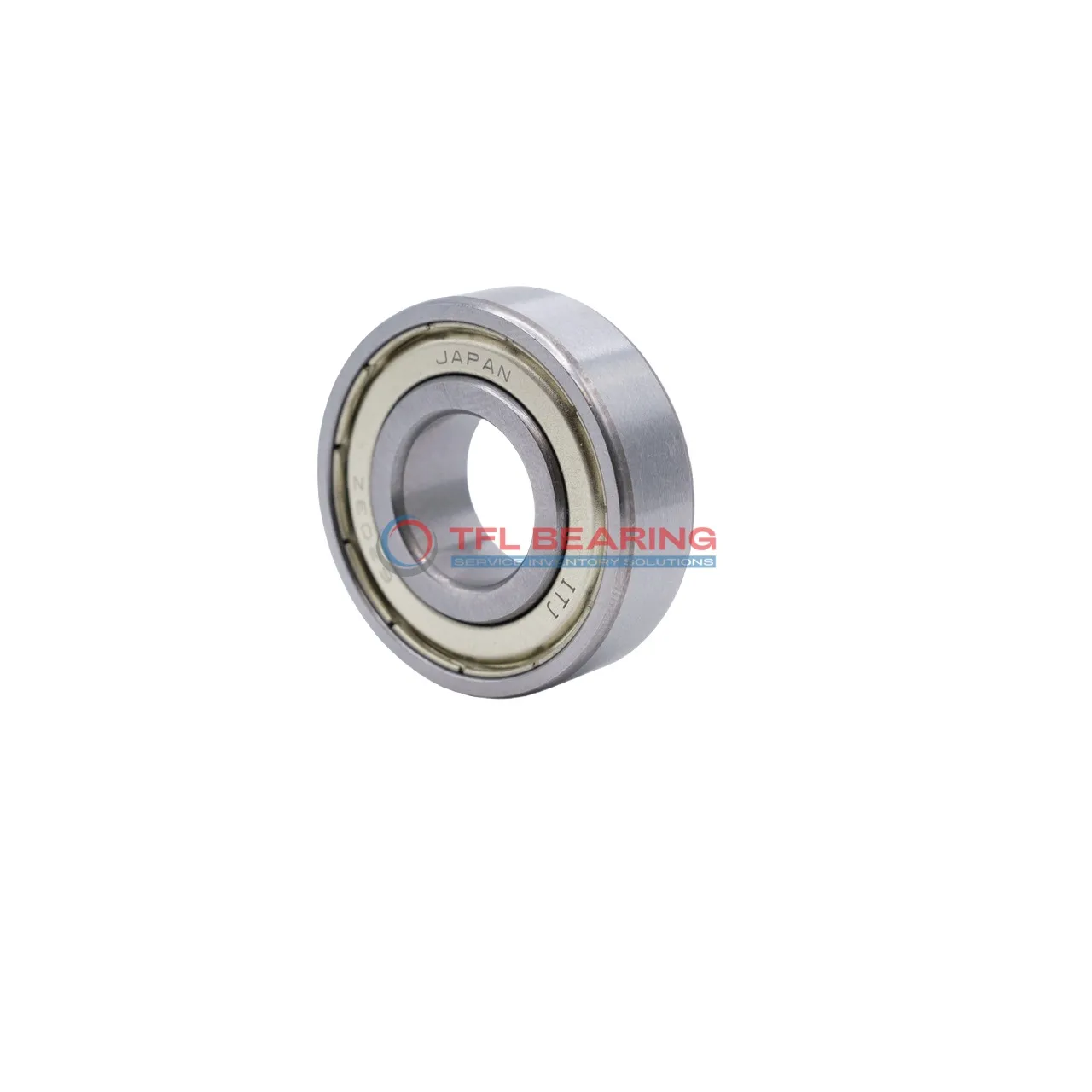

Single Row Deep Groove Ball Bearings 6002-2Z/C2

Single Row Deep Groove Ball Bearings 6002-2Z/C2

The 6002-2Z/C2 is a compact single-row deep groove ball bearing, measuring 15mm by 32mm by 9mm, crafted from durable chrome steel. It handles radial loads up to 1259 lbf and spins smoothly at speeds up to 23,000 RPM.
Its shielded design keeps out dust and debris, while the C2 radial clearance ensures smooth operation under varying temperatures. The bearing performs reliably in conditions ranging from -30°C to 120°C.
This model is interchangeable with SKF bearings, making it a practical choice for replacements. It’s well-suited for small motors, pumps, or appliances where space is limited.
Weighing just 30g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6002-2Z/C2
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C2
  • Bore Dia 15 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 32 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 9 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 1259 lbf
  • Static Radial Load 641 lbf
  • Max Speed 23000 rpm
  • Weight 30 g
Single Row Deep Groove Ball Bearings 6002-2Z/C2 dimension drawing
Download DWG Download PDF

Features

How Does 6002-2Z/C2 Bearing Reduce Friction?

6002-2Z/C2 Bearing features a single row deep groove design, optimised for smooth radial load handling.
Its chrome steel construction ensures durability while minimising friction during operation.
The shielded design protects against contaminants, maintaining performance in various environments.
With a maximum speed of 23,000 rpm, it delivers reliable rotation for diverse applications.

Application

Common Applications of 6002-2Z/C2 Bearing
The 6002-2Z/C2 Bearing is a go-to choice for small electric motors, thanks to its shielded design that keeps dust out while maintaining smooth rotation. Its compact size fits neatly into tight spaces, making it ideal for appliances like fans and power tools.

In automotive applications, 6002-2Z/C2 Bearing handles radial loads in components such as alternators and water pumps. The chrome steel construction ensures it can withstand the vibrations and temperatures common in engine compartments.

For light industrial machinery, 6002-2Z/C2 Bearing offers reliable performance in conveyor systems and packaging equipment. The C2 clearance provides a bit more room for thermal expansion, which is handy in environments with fluctuating temperatures.

You’ll also find 6002-2Z/C2 Bearing in office equipment like printers and scanners, where its quiet operation and durability keep things running smoothly. The metric sizing makes it easy to replace in a variety of devices.
