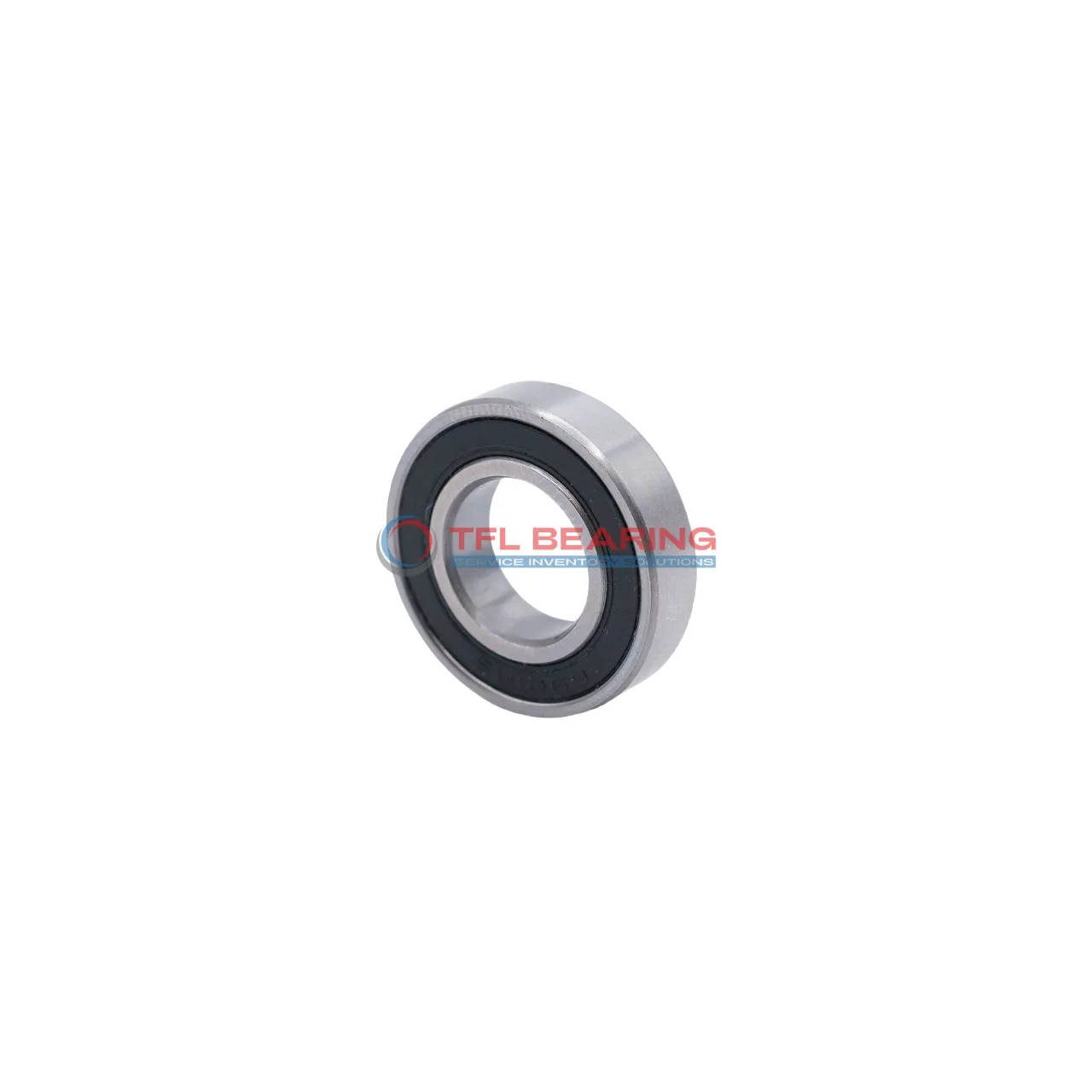

Single Row Deep Groove Ball Bearings 6002-2RSH/VL256W64F

Single Row Deep Groove Ball Bearings 6002-2RSH/VL256W64F

The 6002-2RSH/VL256W64F is a compact single-row deep groove ball bearing, measuring 15mm by 32mm by 9mm. Made from durable chrome steel, it handles radial loads up to 1259 lbf and spins smoothly at speeds up to 23,000 RPM.

Its sealed design keeps dirt out and solid oil lubrication ensures long-lasting performance without frequent maintenance. The bearing operates reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for small motors, fans, or appliances where space is limited but performance is key.

Weighing just 30g, it’s lightweight yet robust. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6002-2RSH/VL256W64F
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 15 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 32 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 9 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 1259 lbf
  • Static Radial Load 641 lbf
  • Max Speed 23000 rpm
  • Weight 30 g
Single Row Deep Groove Ball Bearings 6002-2RSH/VL256W64F dimension drawing
Download DWG Download PDF

Features

How Does 6002-2RSH/VL256W64F Bearing Reduce Friction?

6002-2RSH/VL256W64F Bearing features a sealed design with solid oil lubrication, ensuring smooth operation and reduced friction.
Its chrome steel construction enhances durability while maintaining consistent performance under radial loads.
The bearing can handle speeds up to 23,000 rpm, making it suitable for high-speed applications.
With a temperature range of -30°C to 120°C, it performs reliably in various environments.

Application

Common Applications of 6002-2RSH/VL256W64F Bearing
6002-2RSH/VL256W64F Bearing is widely used in industrial equipment like conveyor systems and small electric motors, where its sealed design keeps out dust and debris. The solid oil lubrication ensures long service life even in demanding conditions.

In automotive applications, 6002-2RSH/VL256W64F Bearing fits well in components such as alternators and water pumps, providing reliable radial load support. Its metric sizing makes it a versatile choice for various vehicle models.

For home appliances, 6002-2RSH/VL256W64F Bearing works smoothly in devices like washing machines and fans, thanks to its quiet operation and durability. The chrome steel construction handles everyday wear with ease.

Automation systems benefit from 6002-2RSH/VL256W64F Bearing in robotic arms and small machinery, where precision and low maintenance are key. The ABEC 1 tolerance ensures consistent performance in repetitive tasks.
