Single Row Deep Groove Ball Bearings 6001-ZTN9/LT

Single Row Deep Groove Ball Bearings 6001-ZTN9/LT

The 6001-ZTN9/LT is a compact single-row deep groove ball bearing with a 12mm bore and 28mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 1147 lbf and spins smoothly at speeds up to 27,000 RPM.

Its shielded design keeps out dust and debris, while the nylon cage reduces friction for quieter operation. The bearing performs reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like small motors, fans, or power tools where smooth rotation is key.

Weighing just 22g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6001-ZTN9/LT
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 12 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 28 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 8 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 1147 lbf
  • Static Radial Load 54 lbf
  • Max Speed 27000 rpm
  • Weight 22 g

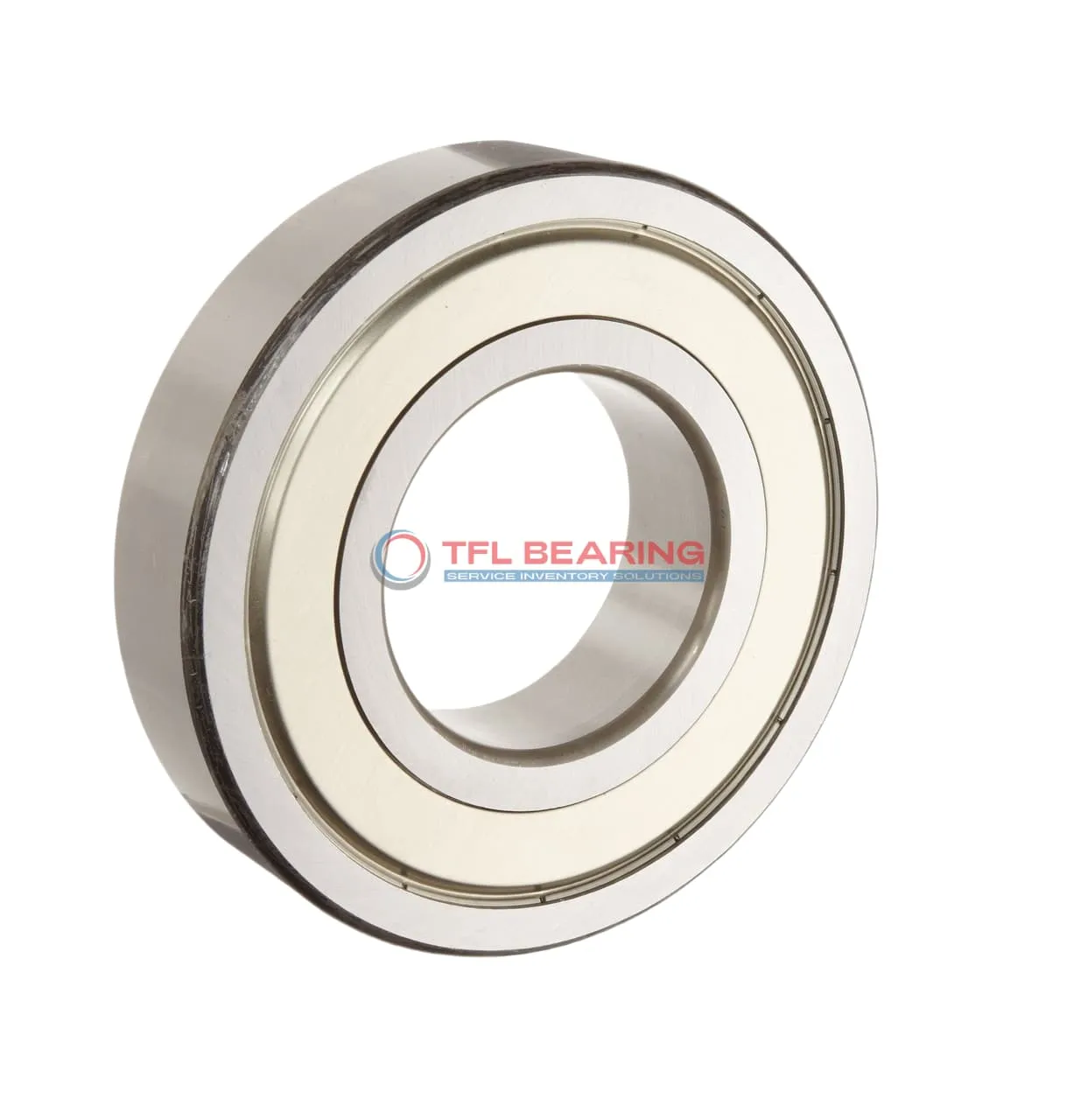

Single Row Deep Groove Ball Bearings 6001-ZTN9/LT dimension drawing
Download DWG Download PDF

Features

Performance Features of 6001-ZTN9/LT Bearing

6001-ZTN9/LT Bearing is built with chrome steel rings and balls, ensuring durability and smooth radial load handling.

Its dynamic radial load capacity of 1147 lbf makes it suitable for various applications requiring reliable performance.

The shielded design protects against contaminants while the nylon cage reduces noise and friction.

With a maximum speed of 27,000 rpm, it offers efficient operation in a compact 12 mm×28 mm×8 mm size.

Application

Common Applications of 6001-ZTN9/LT Bearing
6001-ZTN9/LT Bearing works well in small electric motors, such as those used in household appliances or power tools. Its shielded design helps keep dust out, extending the bearing’s life in everyday use.

How Does 6001-ZTN9/LT Bearing Improve Performance?
In conveyor systems, 6001-ZTN9/LT Bearing reduces friction, ensuring smooth movement of goods. The nylon cage also minimises noise, making it suitable for quieter environments.

Built for Heavy-Duty Use: 6001-ZTN9/LT Bearing
6001-ZTN9/LT Bearing handles radial loads effectively in industrial pumps and compressors. Its chrome steel construction provides durability even in demanding conditions.

Automotive vs Aerospace: Applications of 6001-ZTN9/LT Bearing
6001-ZTN9/LT Bearing fits well in automotive alternators due to its compact size and reliability. In aerospace, it’s used in smaller instruments where precision and lightweight matter.

Perfect Fit for Automation: 6001-ZTN9/LT Bearing
6001-ZTN9/LT Bearing is a solid choice for robotic arms, offering smooth rotation and low maintenance. The ABEC 1 tolerance ensures consistent performance in automated systems.
