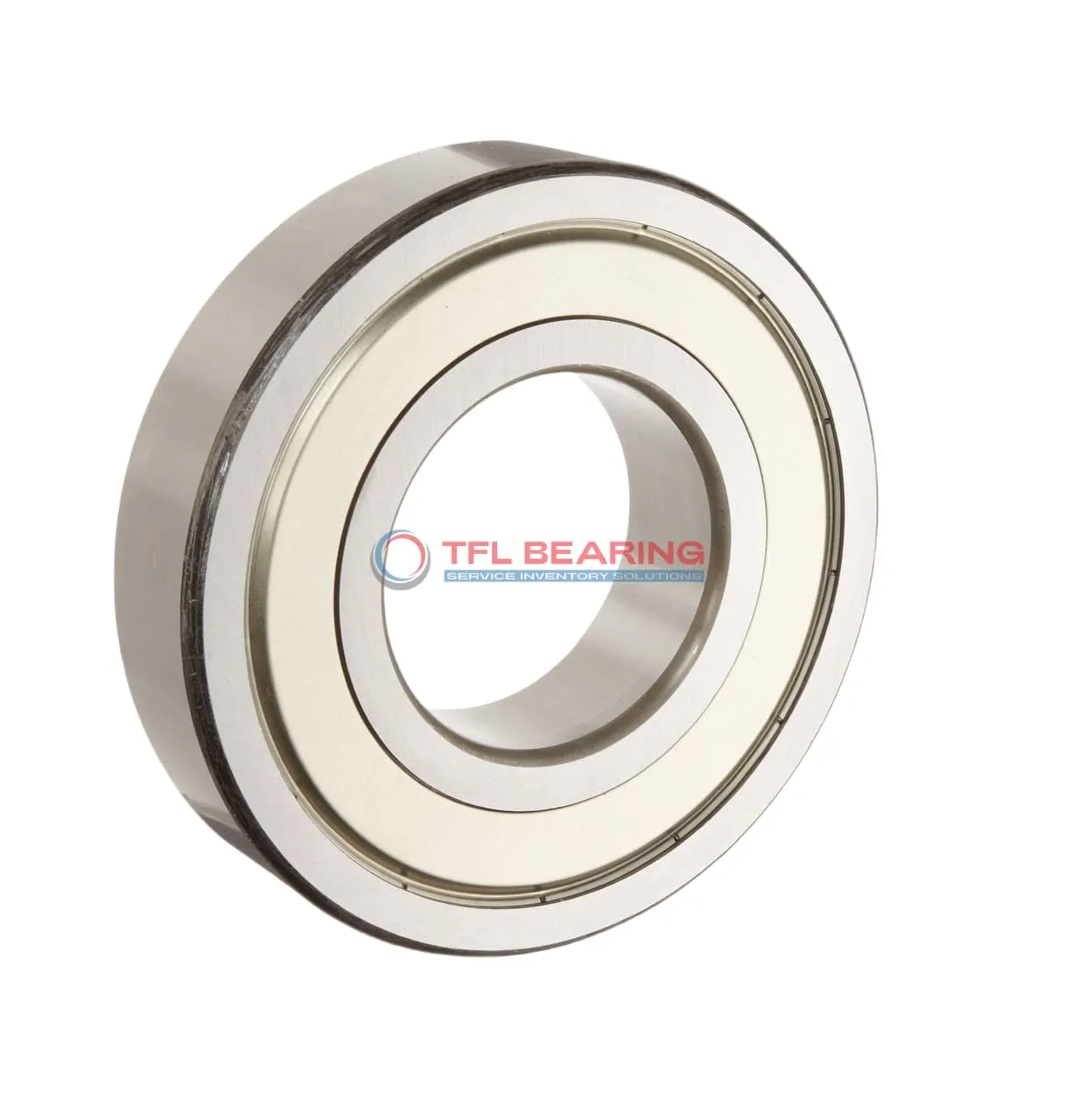

Single Row Deep Groove Ball Bearings 6001-2Z/C3VT127

Single Row Deep Groove Ball Bearings 6001-2Z/C3VT127

The 6001-2Z/C3VT127 is a compact single-row deep groove ball bearing, measuring 12mm by 28mm by 8mm, crafted from durable chrome steel. It handles radial loads up to 1147 lbf and spins smoothly at speeds up to 27,000 RPM.

Its shielded design keeps dirt out while the C3 radial clearance allows for slight misalignment. The bearing operates reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for small motors, pumps, or appliances where space is limited.

Weighing just 22g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6001-2Z/C3VT127
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 12 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 28 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 8 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 1147 lbf
  • Static Radial Load 54 lbf
  • Max Speed 27000 rpm
  • Weight 22 g
  • price（$） 2.817
Single Row Deep Groove Ball Bearings 6001-2Z/C3VT127 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6001-2Z/C3VT127 Bearing

6001-2Z/C3VT127 Bearing is built with chrome steel rings and balls, offering reliable radial load support.
Its shielded design helps keep contaminants out while maintaining smooth operation.

The C3 radial clearance ensures stable performance under varying temperatures and loads.
With a maximum speed of 27,000 rpm, it suits high-speed applications without compromising durability.

6001-2Z/C3VT127 Bearing operates efficiently in temperatures ranging from -30°C to 120°C.
Its compact size (12 mm×28 mm×8 mm) makes it ideal for space-constrained installations.

The chrome steel cage enhances alignment and reduces wear over time.
This design ensures consistent performance, even under dynamic radial loads up to 1147 lbf.

Application

Common Applications of 6001-2Z/C3VT127 Bearing
In industrial settings, 6001-2Z/C3VT127 Bearing is commonly used in electric motors and pumps, where its shielded design helps keep contaminants out. The C3 radial clearance ensures smooth operation even under varying thermal conditions.

Where Is 6001-2Z/C3VT127 Bearing Used?
You’ll often find 6001-2Z/C3VT127 Bearing in small appliances like fans and power tools, thanks to its compact size and reliable performance. The chrome steel construction provides durability for everyday use.

Built for Heavy-Duty Use: 6001-2Z/C3VT127 Bearing
6001-2Z/C3VT127 Bearing handles radial loads effortlessly in conveyor systems, making it a go-to choice for material handling equipment. Its ABEC 1 tolerance ensures consistent performance without overcomplicating the design.

Automotive vs Industrial: Applications of 6001-2Z/C3VT127 Bearing
In automotive applications, 6001-2Z/C3VT127 Bearing works well in alternators and small gearboxes, while in industrial settings, it’s ideal for light machinery. The metric sizing makes it versatile across different regions.

Perfect Fit for Automation: 6001-2Z/C3VT127 Bearing
6001-2Z/C3VT127 Bearing is a reliable component in robotic arms and 3D printers, where precision and durability are key. The shielded seals help maintain performance in dusty or humid environments.
