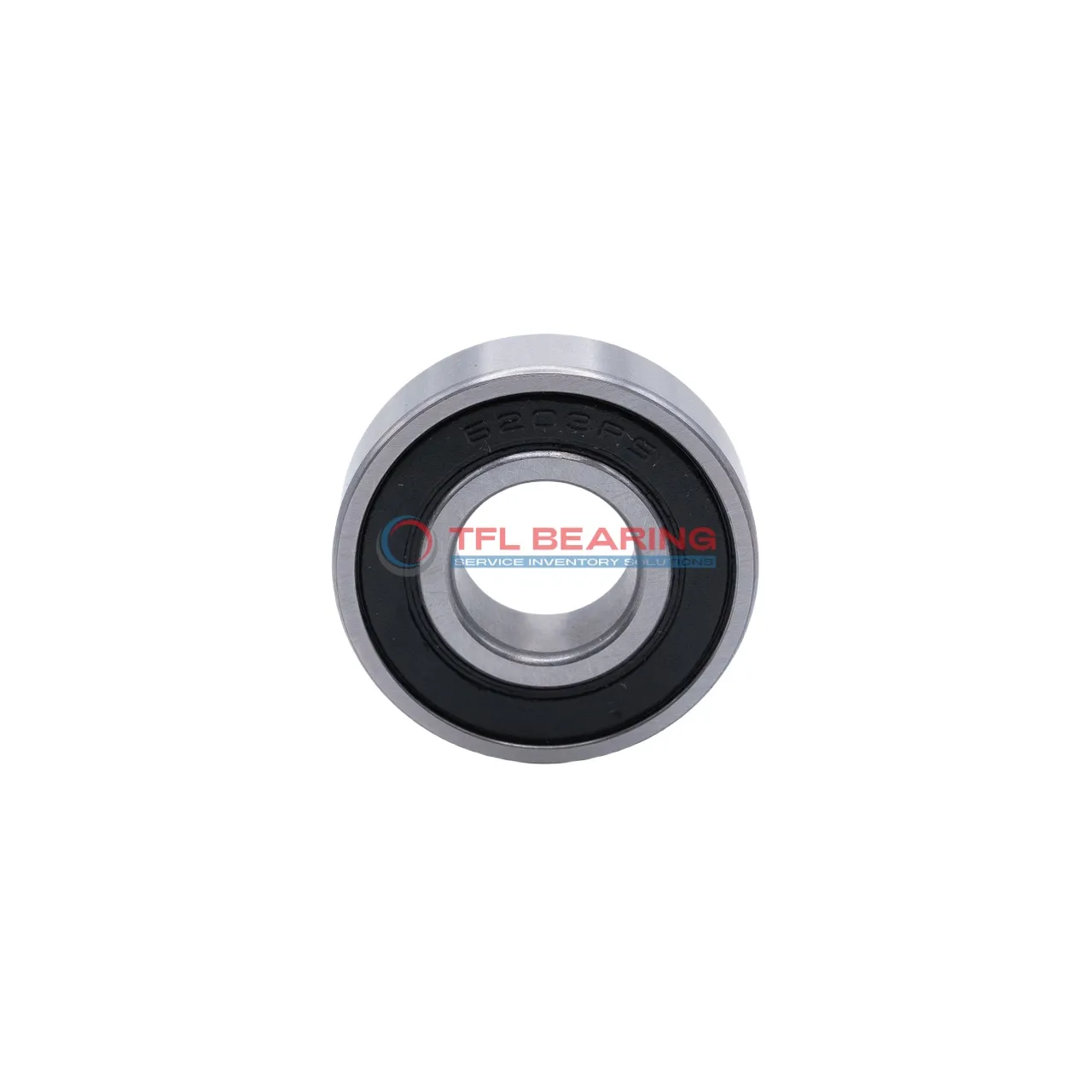

Single Row Deep Groove Ball Bearings 6001-2RSLTN9/C3LHT23

Single Row Deep Groove Ball Bearings 6001-2RSLTN9/C3LHT23

The 6001-2RSLTN9/C3LHT23 is a compact single-row deep groove ball bearing, measuring 12mm by 28mm by 8mm. Made from chrome steel, it handles radial loads up to 1147 lbf and spins smoothly at speeds up to 27,000 RPM.

Its sealed design keeps out dust and dirt, while the nylon cage reduces friction for quieter operation. The bearing performs well in temperatures from -30°C to 120°C.

With a C3 radial clearance, it’s suitable for applications where slight expansion is expected. Ideal for electric motors, small gearboxes, or appliances where reliability is key.

Weighing just 22g, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6001-2RSLTN9/C3LHT23
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 12 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 28 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 8 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 1147 lbf
  • Static Radial Load 54 lbf
  • Max Speed 27000 rpm
  • Weight 22 g
Single Row Deep Groove Ball Bearings 6001-2RSLTN9/C3LHT23 dimension drawing
Download DWG Download PDF

Features

How Does 6001-2RSLTN9/C3LHT23 Bearing Reduce Friction?

6001-2RSLTN9/C3LHT23 Bearing features a single-row deep groove design, optimised for smooth radial load handling.
The sealed construction keeps contaminants out, ensuring consistent performance over time.
Made from chrome steel, it offers a dynamic radial load capacity of 1147 lbf for reliable operation.
With a maximum speed of 27,000 rpm, it balances efficiency and durability in various applications.

Application

Industrial Uses of 6001-2RSLTN9/C3LHT23 Bearing
This bearing is commonly used in small electric motors, where its sealed design helps keep out dust and moisture. The nylon cage reduces noise, making it ideal for household appliances like washing machines.

Where Is 6001-2RSLTN9/C3LHT23 Bearing Used?
You’ll find this bearing in power tools, where its radial load capacity handles the stress of drilling and cutting. Its compact size fits neatly into tight spaces without sacrificing performance.

Built for Heavy-Duty Use: 6001-2RSLTN9/C3LHT23 Bearing
In conveyor systems, this bearing’s C3 clearance accommodates thermal expansion during continuous operation. The chrome steel construction ensures long-lasting durability in demanding environments.

Automotive vs Aerospace: Applications of 6001-2RSLTN9/C3LHT23 Bearing
In cars, it supports alternators and water pumps, while in drones, its lightweight design aids in efficient flight. The temperature range suits both everyday and high-altitude use.

Perfect Fit for Automation: 6001-2RSLTN9/C3LHT23 Bearing
This bearing works well in robotic arms, where smooth rotation is key. The sealed design prevents contamination, ensuring reliable performance in cleanroom settings.
