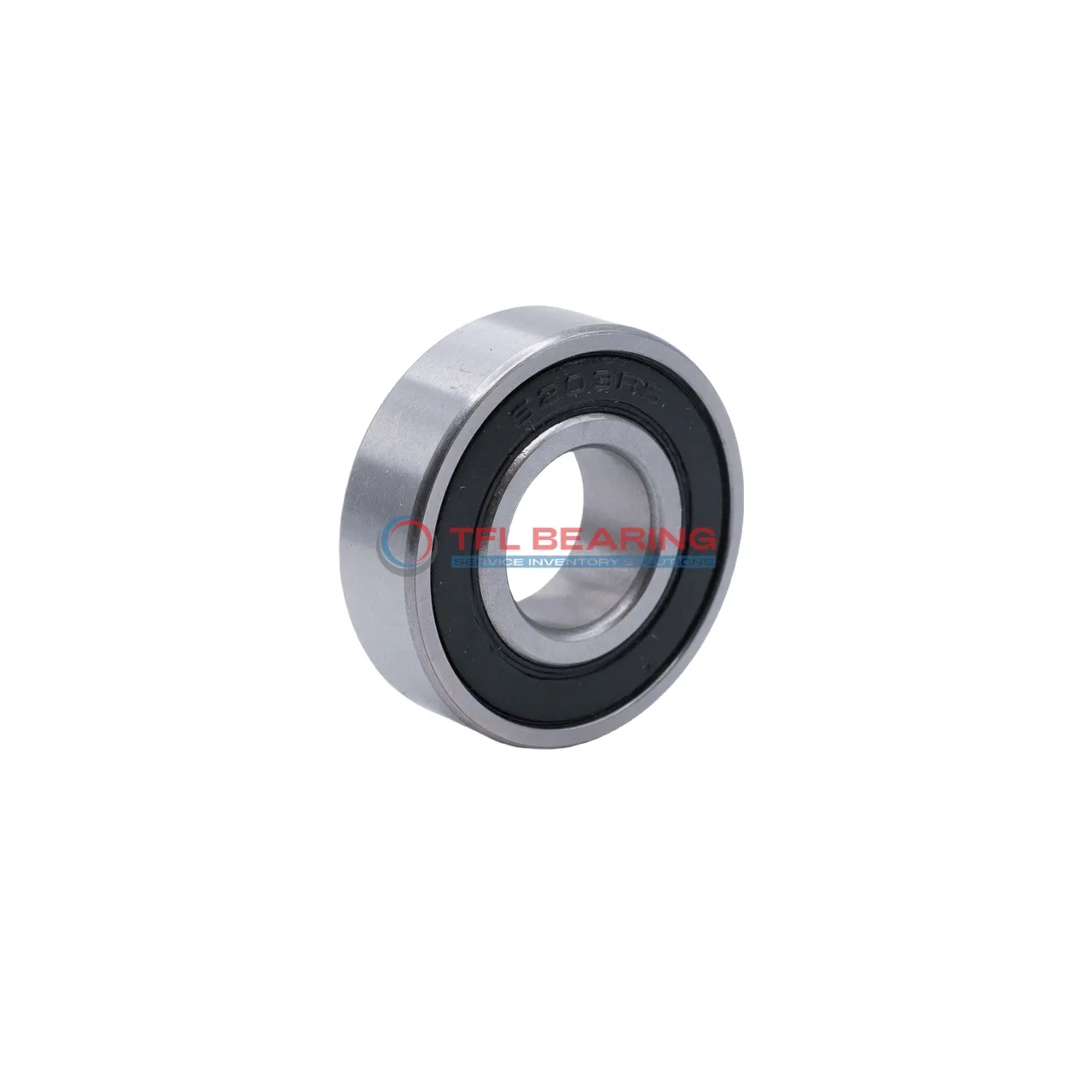

Single Row Deep Groove Ball Bearings 6000-2RSL/C3GXK

Single Row Deep Groove Ball Bearings 6000-2RSL/C3GXK

The 6000-2RSL/C3GXK is a compact single-row deep groove ball bearing, measuring 10mm in bore and 26mm in outer diameter. Made from durable chrome steel, it’s built to handle radial loads up to 1023 lbf with ease.

Its sealed design keeps dirt out and grease in, making it low-maintenance. The C3 radial clearance allows for smooth operation even at high speeds, up to 31,000 RPM.

This bearing works well in temperatures from -30°C to 120°C, suitable for various environments. It’s interchangeable with SKF models, offering a reliable replacement option.

Weighing just 19g, it’s lightweight yet sturdy. Ideal for small motors, pumps, or appliances where reliable radial load support is needed. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6000-2RSL/C3GXK
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 10 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 26 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 8 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 1023 lbf
  • Static Radial Load 438 lbf
  • Max Speed 31000 rpm
  • Weight 19 g
Single Row Deep Groove Ball Bearings 6000-2RSL/C3GXK dimension drawing
Download DWG Download PDF

Features

How Does 6000-2RSL/C3GXK Bearing Reduce Friction?

6000-2RSL/C3GXK Bearing features a single-row deep groove design, optimised for smooth radial load handling.
The sealed construction helps keep contaminants out, ensuring consistent performance over time.

Made from chrome steel, 6000-2RSL/C3GXK Bearing resists wear and maintains efficiency under dynamic loads up to 1023 lbf.
Its C3 radial clearance allows for thermal expansion, making it suitable for varied operating conditions.

With a maximum speed of 31,000 rpm, 6000-2RSL/C3GXK Bearing balances high performance and durability.
The compact 10 mm×26 mm×8 mm size makes it ideal for space-constrained applications.

Application

Industrial Uses of 6000-2RSL/C3GXK Bearing
6000-2RSL/C3GXK Bearing is commonly used in small electric motors and pumps, where its sealed design keeps contaminants out and extends service life. The C3 clearance ensures reliable performance even with thermal expansion in industrial settings.

What Makes 6000-2RSL/C3GXK Bearing a Preferred Choice?
In automotive applications like alternators and cooling fans, 6000-2RSL/C3GXK Bearing offers smooth rotation and low noise. Its chrome steel construction handles radial loads efficiently, making it a dependable option for vehicle components.

Perfect Fit for Automation: 6000-2RSL/C3GXK Bearing
6000-2RSL/C3GXK Bearing works well in robotic joints and conveyor systems, where precision and durability are key. The sealed design protects against dust and moisture, ensuring consistent operation in automated environments.

Medical vs Industrial: Where 6000-2RSL/C3GXK Bearing Excels
For medical devices like dental handpieces, 6000-2RSL/C3GXK Bearing provides quiet and reliable performance. In industrial tools, its robust design handles moderate radial loads with ease, making it versatile across sectors.

Where to Use 6000-2RSL/C3GXK Bearing
6000-2RSL/C3GXK Bearing is ideal for household appliances like washing machines, where its sealed construction prevents grease leakage. The metric sizing ensures compatibility with a wide range of consumer products.
