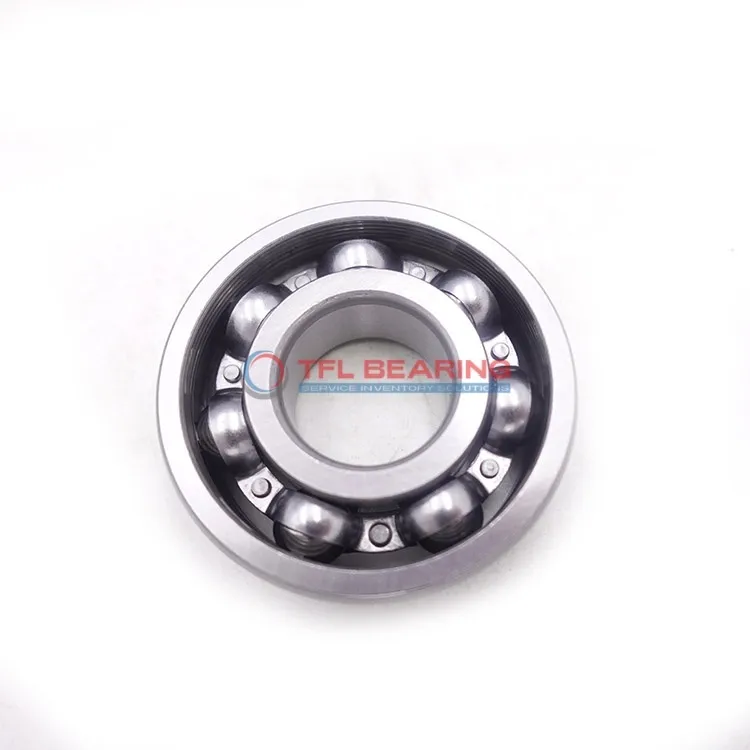

Single Row Deep Groove Ball Bearings 417MFF

Single Row Deep Groove Ball Bearings 417MFF

The 417MFF is a single-row deep groove ball bearing with an 85mm bore and 210mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 26000 lbf and operates smoothly in temperatures from -30°C to 120°C.

Its open design simplifies maintenance, while the chrome steel cage ensures durability. The bearing meets ABEC 1 and ISO P0 tolerance standards for reliable performance.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for radial load applications like electric motors or industrial machinery.

Compliant with RoHS and REACH standards, it’s a safe and dependable option for various industrial uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 417MFF
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 85 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 210 mm
  • Outer Dia Tolerance -0.03mm to 0
  • Width 52 mm
  • Width Tolerance -0.2mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 26000 lbf
  • Static Radial Load 28000 lbf
  • price（$） 297.891
Single Row Deep Groove Ball Bearings 417MFF dimension drawing
Download DWG Download PDF

Features

Performance Features of 417MFF Bearing

417MFF Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 26000 lbf, making it suitable for demanding applications.

The single-row deep groove design ensures smooth operation and efficient load distribution.
With a temperature range of -30°C to 120°C, it performs reliably in various environments.

The open seal type allows for easy maintenance and lubrication adjustments.
Its ABEC 1 tolerance class ensures consistent performance for general industrial use.

Application

Industrial Uses of 417MFF Bearing
417MFF Bearing is commonly used in industrial machinery like pumps and compressors, where its deep groove design handles radial loads efficiently. The open seal type allows for easy lubrication, extending its service life in demanding conditions.

What Makes 417MFF Bearing a Preferred Choice?
In automotive applications, 417MFF Bearing fits well in wheel hubs and transmissions due to its robust chrome steel construction. Its ABEC 1 tolerance ensures reliable performance without unnecessary complexity.

Built for Heavy-Duty Use: 417MFF Bearing
For automation systems, 417MFF Bearing supports robotic arms and conveyor belts with smooth operation. The metric sizing makes it versatile for various equipment designs across different industries.

Medical vs Industrial: Where 417MFF Bearing Excels
In medical devices like centrifuges, 417MFF Bearing offers quiet and precise rotation. Meanwhile, its durability shines in industrial settings, such as heavy machinery, where consistent performance is key.
